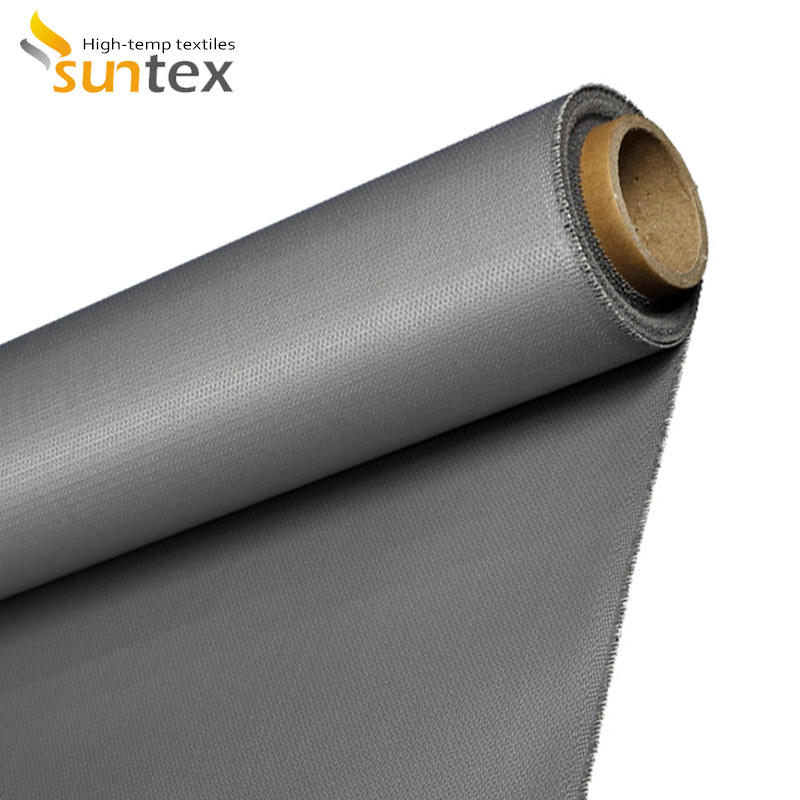

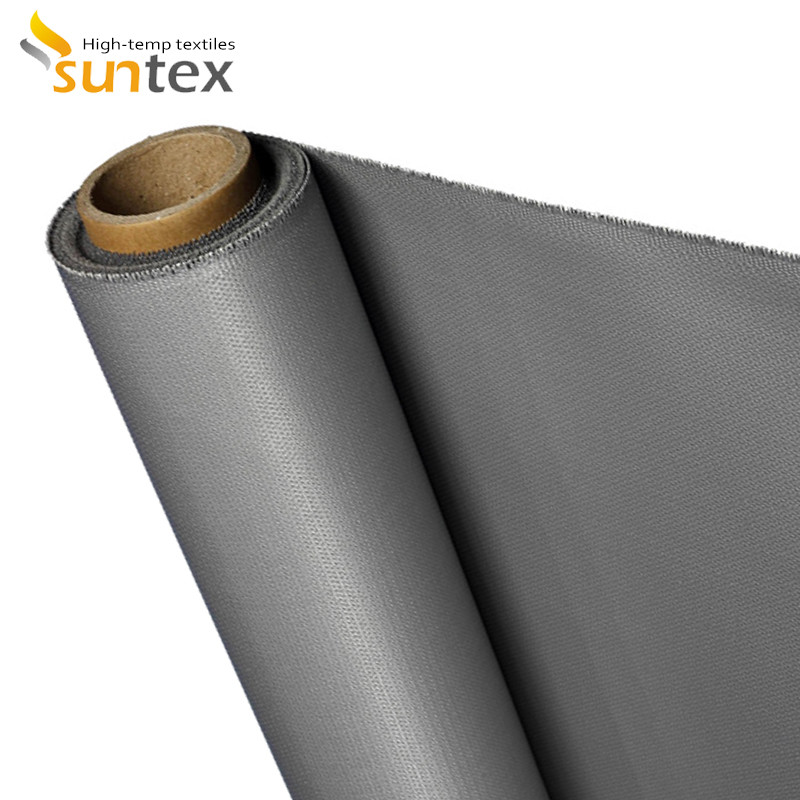

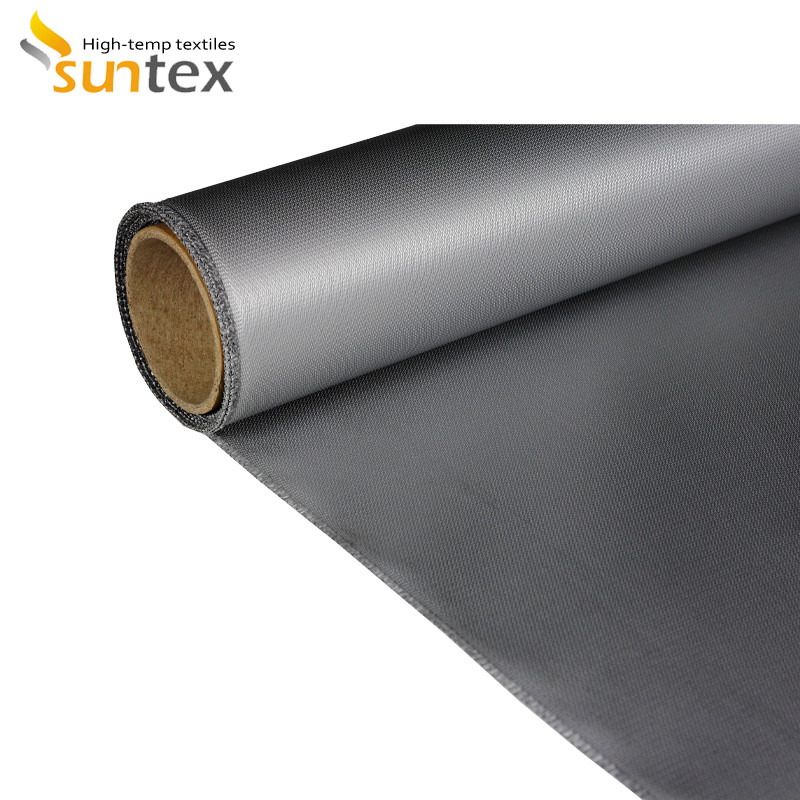

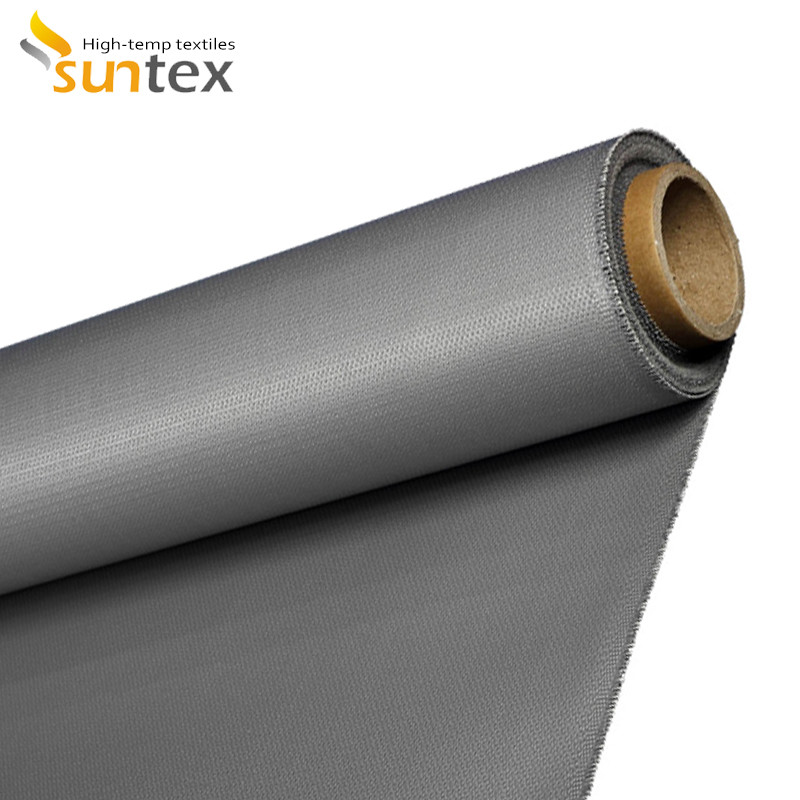

Silicone Coated Fiberglass For Equipment Covers Turbine Covers

Place of Origin China
Brand Name SUNTEX
Model Number GF430P-SI233-1015
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Weight 560 G/sqm Thickness 0.42 Mm
Color Silver Grey Yarn Tape E-glass
Width 1.5 Meter Coating Silicon Rubber On Two Side
Standing Temperature From -50℃ To 550℃ Origin Hubei, China
Roll Length 50 Meter
High Light

Silicone Coated Fiberglass


Equipment Covers


Turbine Covers

Leave a Message
Product Description

Two Side Silicone Impregnated Fiberglass Fabric For Insulation Pads




Our fiberglass fabrics are widely used for thermal insulation, acoustic insulation, and for protection from heat and fire. These woven fiberglass fabrics support operating temperatures up to 1000°F / 540°C and peak temperatures up to 1300°F / 700°C. They are inherently heat and flame retardant fabrics made from inorganic materials so they will not produce hazardous out-gassing.


Suntex fiberglass fabrics are available with a variety of high temperature coatings and treatments for specialized high-temperature applications.


Parameter List:


BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
COATED FABRIC Coating style No. SI233-1015
Coating Silicone rubber 2 sides
Weight 510 ± 25 g/m2 15 ± 0.74 oz/yd2 ASTM E84-12
Thickness 0.40± 0.02 mm 0.016 ± 0.0007 inch ASTM E84-12
Color grey
Fire resistance M0
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)





Fire doors & Fire curtains

Welding/fire blankets

Other fire control systems

Insulation jackets, mattress and pad

Fabric expansion joints

Fabric ductwork connector




Excellent non-stick properties

Water and fire protection

Good Chemical Resistance

Superior Flex and Abrasion Resistance
