Vermiculite Coated Fiberglass Fabric For Flexible Compansator
| Place of Origin | CHINA |
|---|---|
| Brand Name | SUNTEX |
| Model Number | TGF1000-VE226-5008 |
| Minimum Order Quantity | 1000m |
| Packaging Details | 50/100m per roll, each roll with a PE bay, packed in carton, 20-25 rolls per pallet |
| Delivery Time | 30 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000m per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Weight | 1070 G/sq.m | Nominal Width | 1000mm 1520mm 1550mm |
|---|---|---|---|
| Nominal Thickness | 1.4mm | Industrial Fire Blanket Roll Color | Brown |
| Temperature Resistance /Working Temperature | 1000℃ | Basic Fabric Temperature Resistance | 550℃ 1000℉ |
| Treatment | Vermiculite On The Both Side | Appllication | Heavy Duty Welding Protection |
| Usage | Fire Resistant | ||
| High Light | Compansator Vermiculite Coated Fiberglass,Flexible Compansator Vermiculite Coated Fiberglass,Thermal Insulation Vermiculite Coated Fiberglass |
||
Product Description

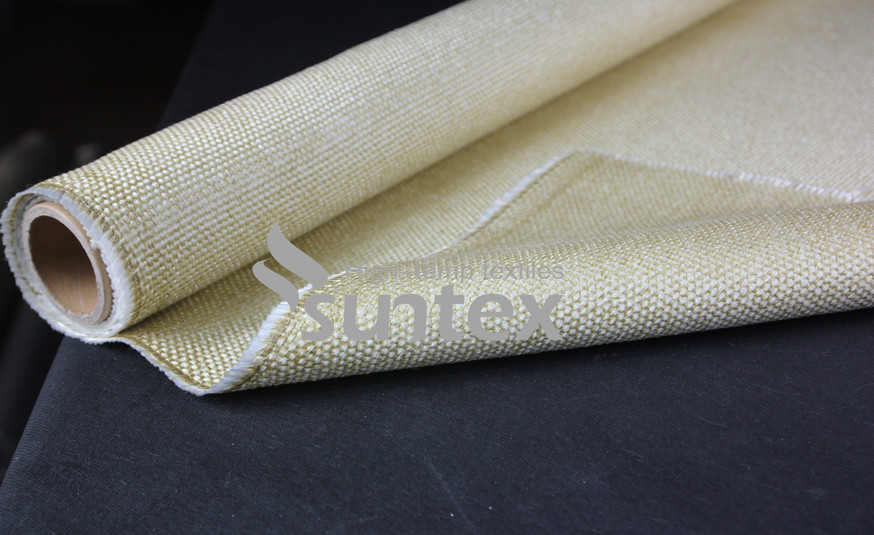

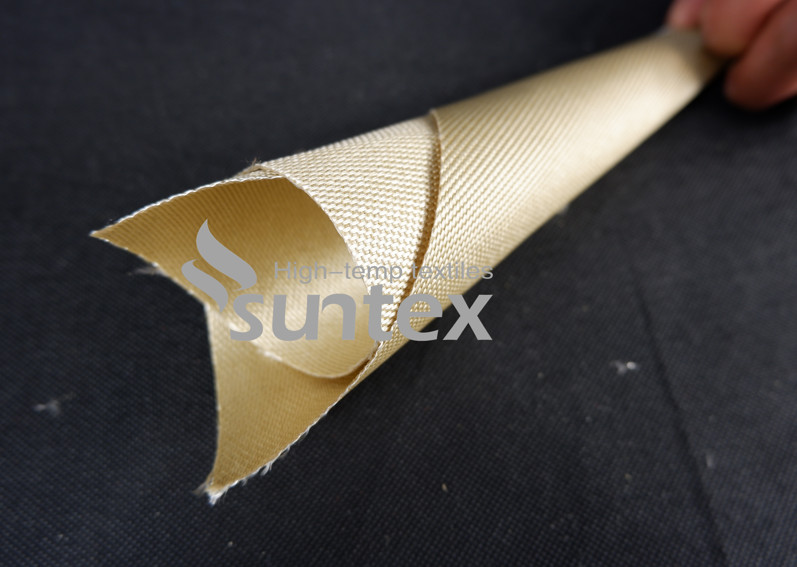

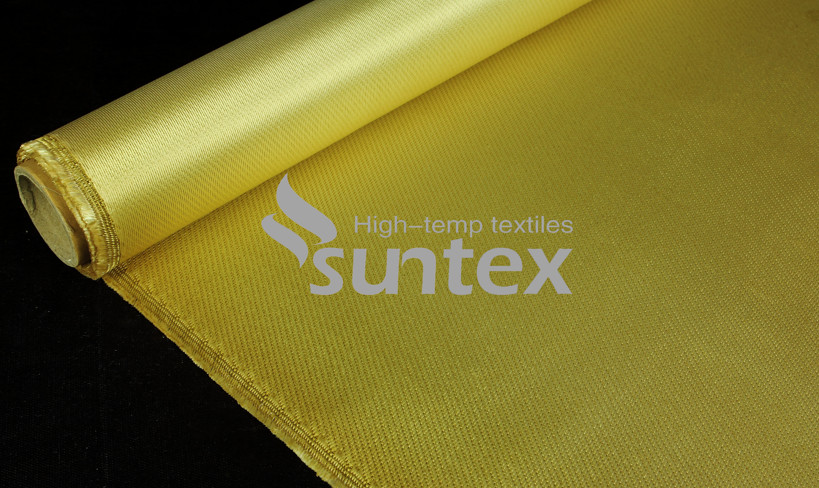

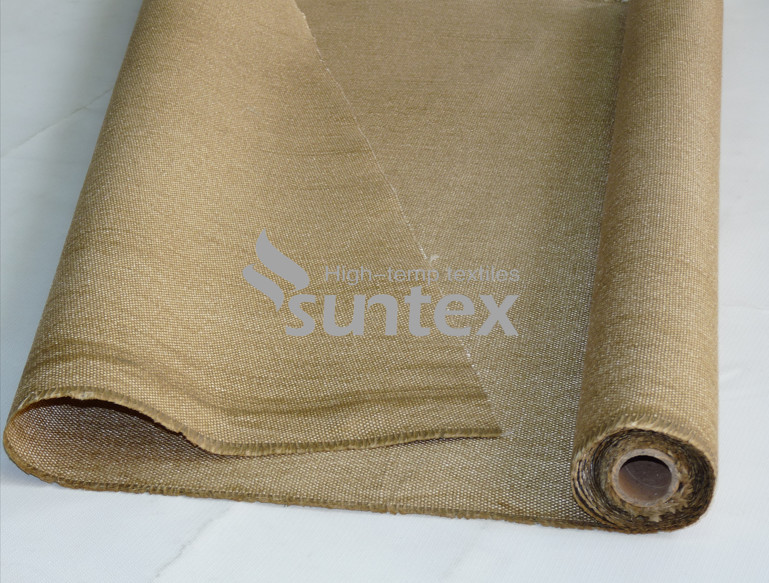

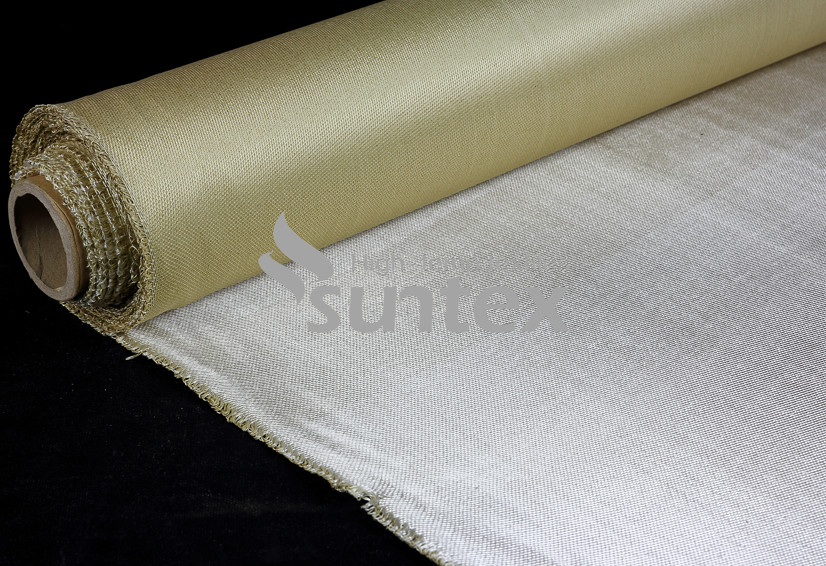

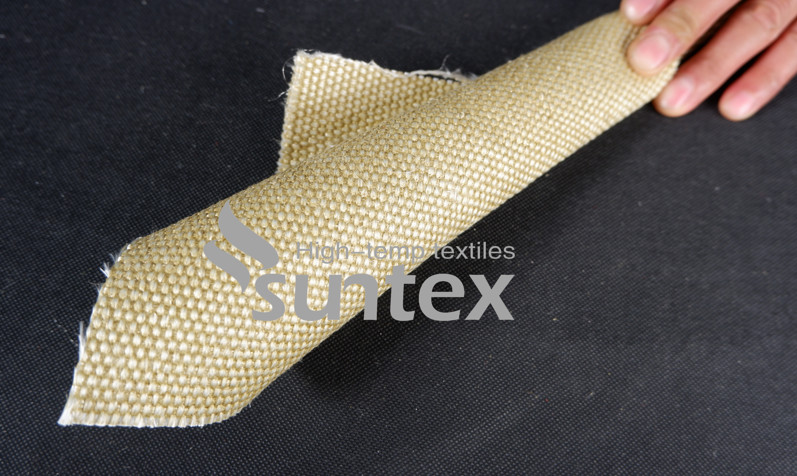

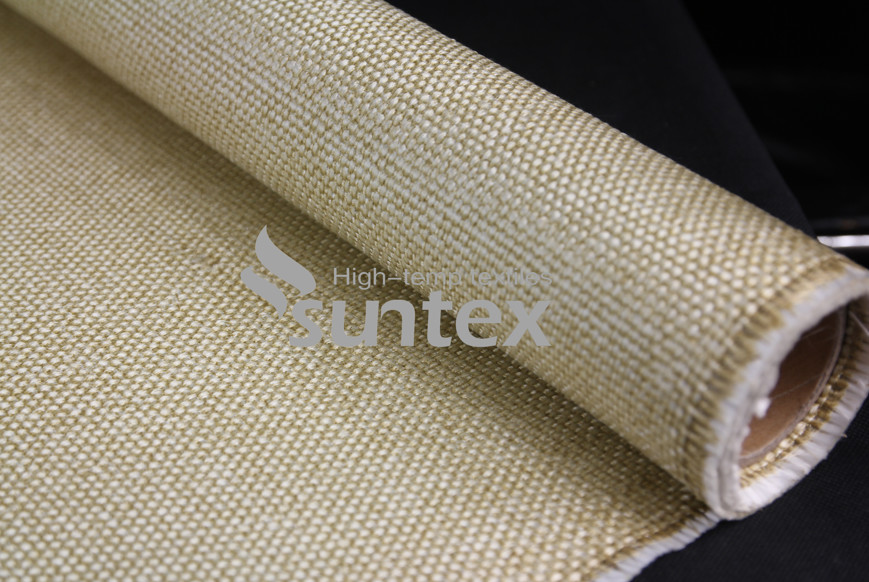

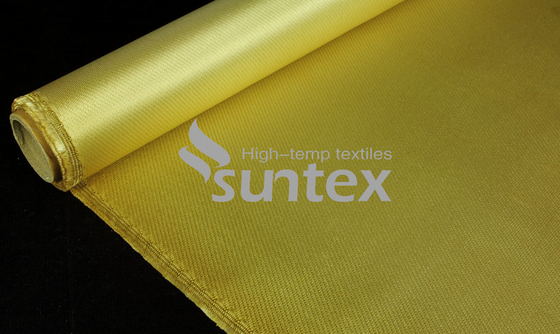

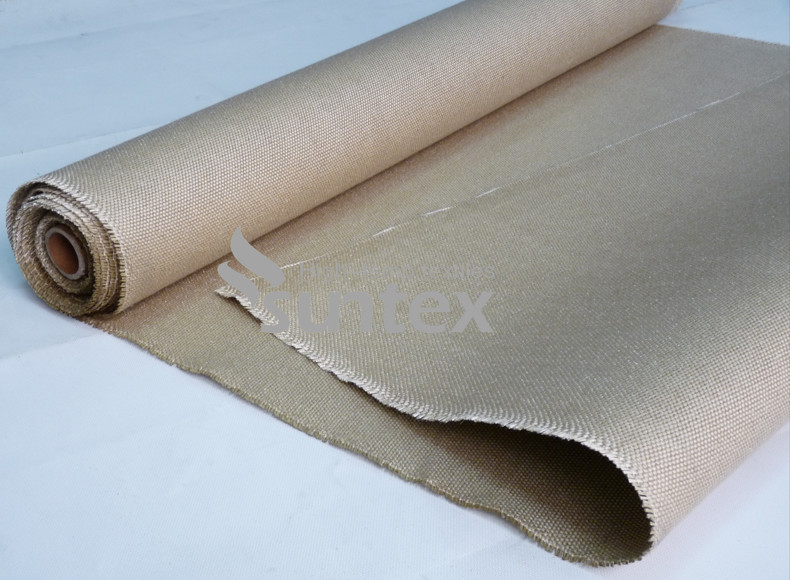

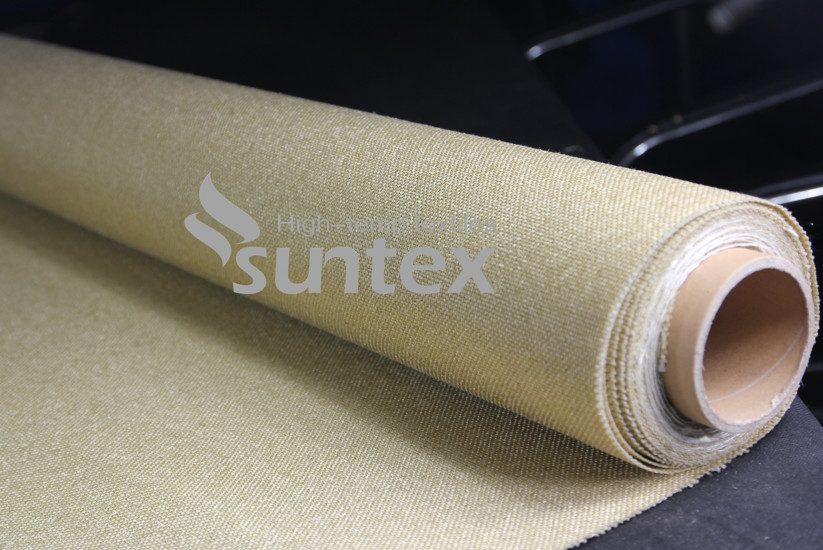

Vermiculite Coated Fiberglass Fabric For Flexible Compansator
Introduce
TGF1000-VE226-5008 is a heavy weight woven texturized fiberglass fabric impregnated with specially formulated vermiculite dispensers which provides high temperature and abrasion resistance properties for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other types of fire control systems.
Advantage
1. Excellent certified fire resistance.
2. Extreme high temperature resistant .
3. Excellent tensile strength.
4. Thickness, unit weight, weave, all can be customized base on your use method.
Data
| BASE FABRIC | Base fabric style No. TGF1000 | |||
| (Metric) | (English) | Test methods | ||
| Weave | Plain | Plain | ||
| Yarn | ||||
| Warp | ET9 1250 tex | ETG 4.0 | ||
| Weft | ET9 1250 tex | ETG 4.0 | ||
| Construction | ||||
| Warp | 5 ± 0.5 ends/cm | 13 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 3 ± 0.3 picks/cm | 8 ± 1 picks/inch | ASTM D 3775-96 | |
| Weight | 1000 ± 50 g/m2 | 29.41 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.3 ± 0.1 mm | 0.05 ± 0.005 inch | ASTM D1777-96 | |
|
|
||||
| COATED FABRIC | Coating style No. VE226-5008 | |||
| Coating | Vermiculite impregnated on both sides | |||
| Weight | 1070 ± 50 g/m2 | 32 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.40 ± 0.05 mm | 0.055 ±0.002 inch | ASTM D1777-96 | |
| Color | Brown (Yellow) | |||
| Temp resistance |
5500C for basic fabric 8000C for the coating |
14000F |
||
Applications

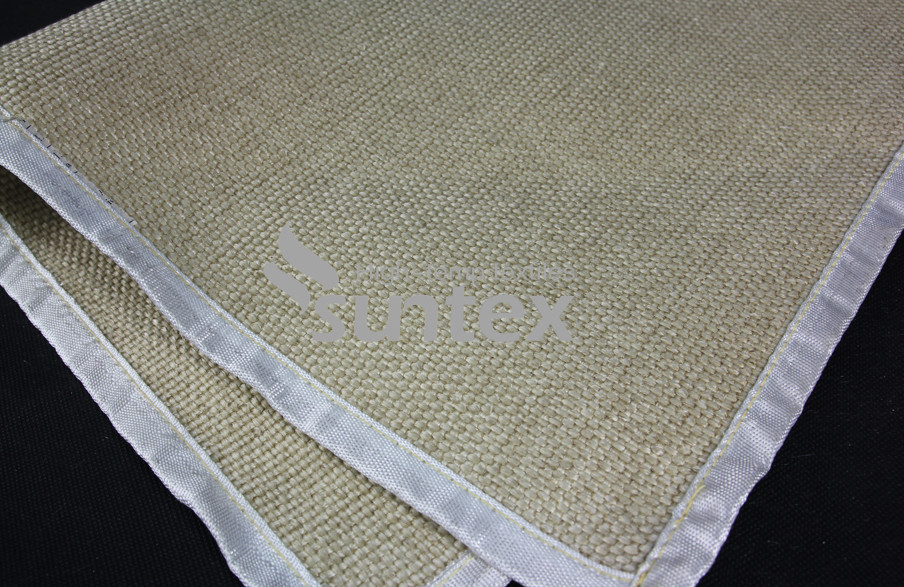

Fire blanket
Smoke door
Flexible sleeve
Reusable thermal insulation sheath
Thermal insulation mattress
Flexible duct
