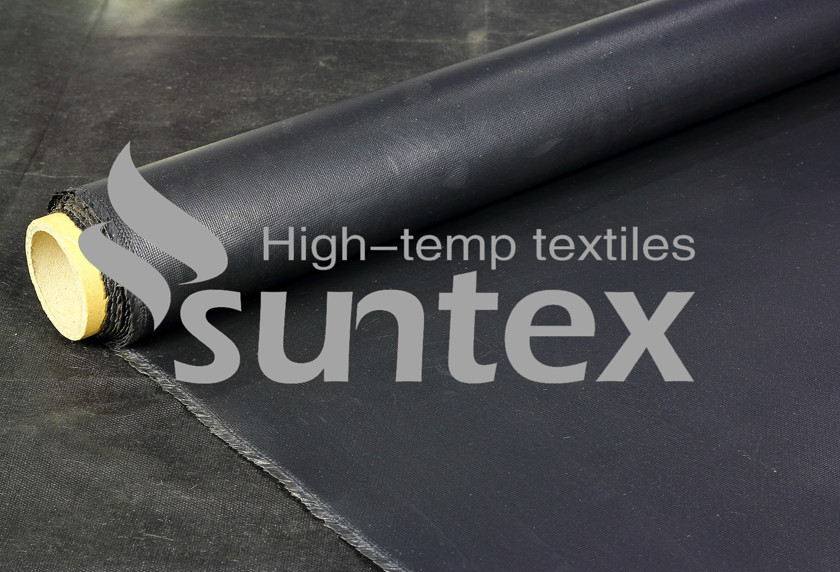

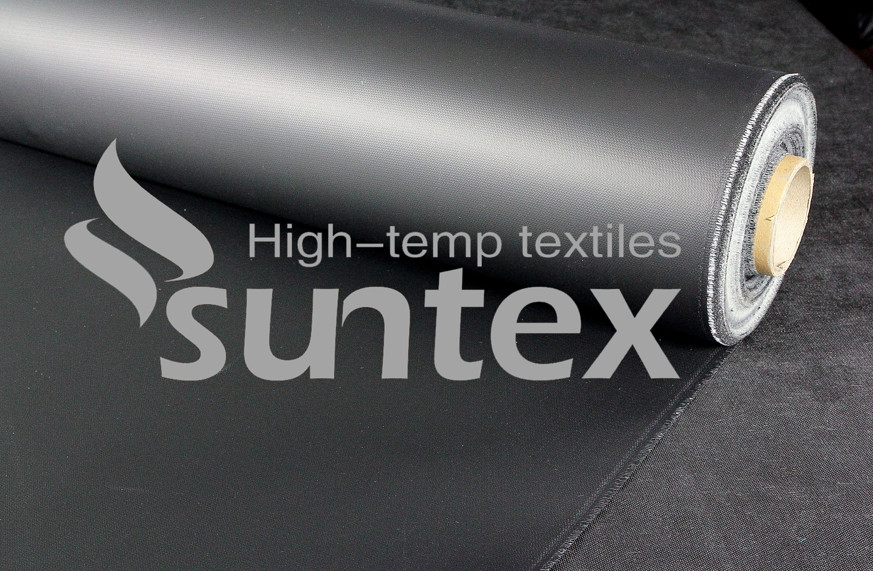

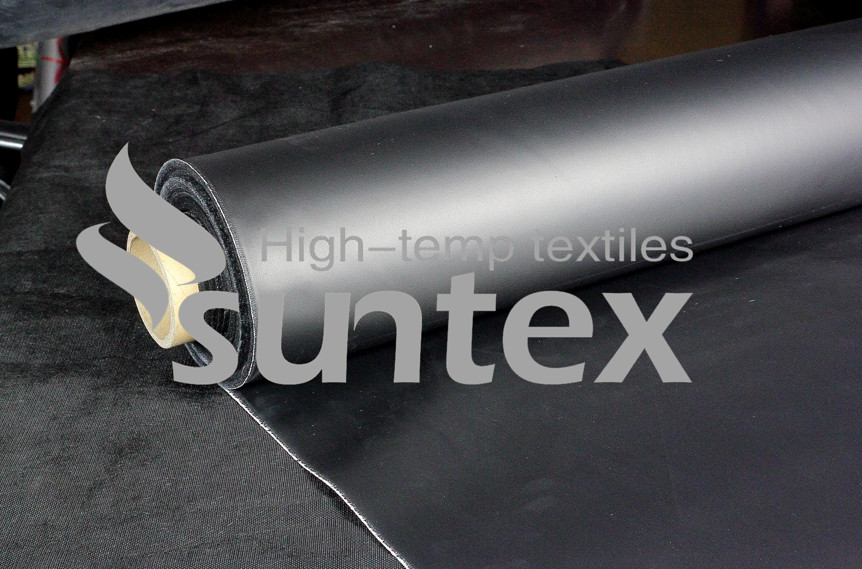

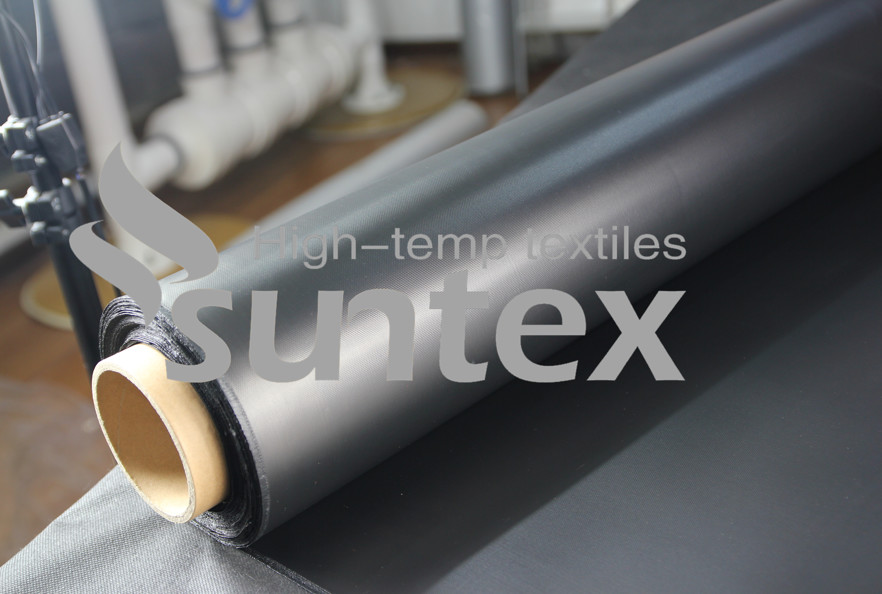

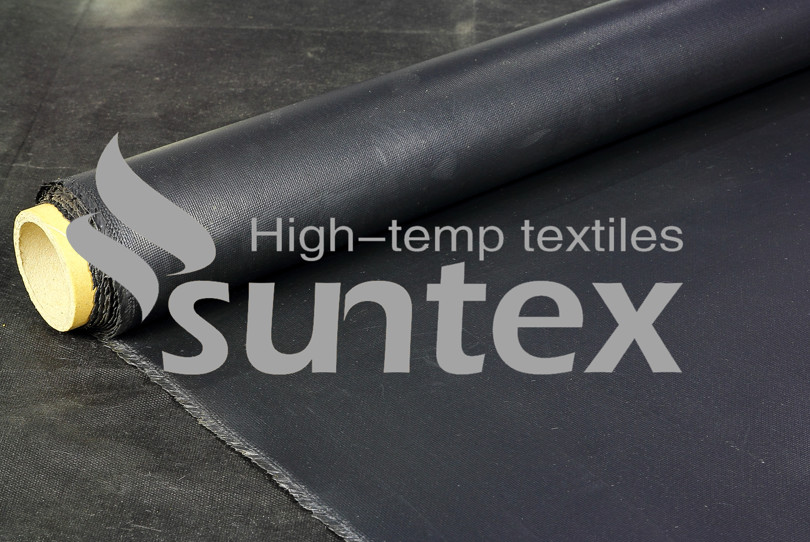

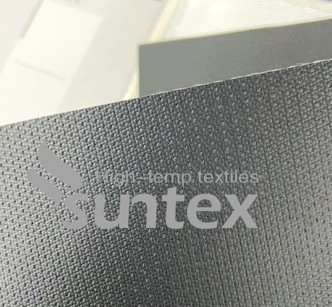

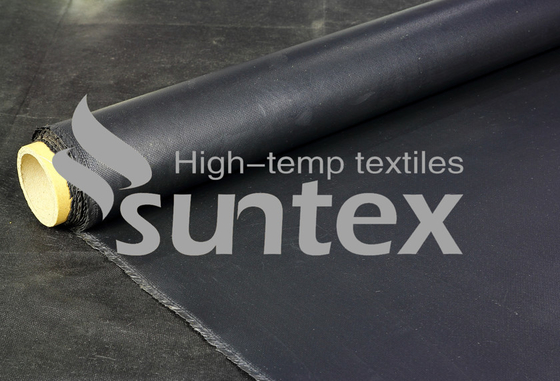

High temperature resistance Black Neoprene Coated Glass Cloth For Flexible Connector

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF200P-NE265-4001
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

neoprene coated fabric

,

chemical resistant fabric

,

woven fiberglass fabric
Temperature Resistance: From -50 C To 550 C
Weight: 500 G/M2
Thickness: 0.35 Mm Or OEM
Coating: Neoprene
Width: 1.5m
Color: Black
Roll Length: 50 Meter
Origin: China
Main Market: Mid-east / Europe
Application: Air Condition System
Product Description

Neoprene Coated Fiberglass Cloth For Flexible Connector Weather Proofing Material



Description:



Neoprene coated fabric is fiberglass cloth coated with neoprene on the surface to meet customer demands. It's composite material with retardant and multiple applications. It has high tensile stength, better resistance to heat, light, aging and oil compared to natural rubber, SBR and BR. With strong resistance to flammability and excellent resistance to water, along with its high chemical stability, neoprene coated fabric is used extensively in the field of elastomers.



GF200P-NE265-4001 is a light-weight woven fiberglass fabric with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of flexible connector, removable insulation pads, jacket and mattresses. The material is soft and pliable and easy to sew.



Parameter List:



BASE FABRIC Base fabric style No. GF200P
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp EC9 68 1*0 ECG 75 1/0
Weft EC9 68 1*0 ECG 75 1/0
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch






COATED FABRIC Coating style No. NE265-4001
Coating Neoprene rubber, one side
Weight 500 ± 30 g/m2 14.7 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.33 ± 0.03 mm 0.013 ± 0.0011 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5400C (10000F)

Neoprene rubber coating up to 1500C (3600F)



Typical Applications:



- Flexible ductwork connector;
- Welding blankets;
- Heat shield and containment;
- Other fire control systems.



Advantage:



Good resistance to ageing.

Good weather resistance.

Soft, easy to cut and sewing

Chinese manufacturer price

Good chemical resistance

Good abrasion resistance

High temperature resistance Black Neoprene Coated Glass Cloth For Flexible Connector
