Silicone Coated Fiberglass Fabric for Thermal Insulation Cover Insulation Mattress Insulation Blanket Insulation Jacket
thermal insulation fabric
,Silicone Coated Fiberglass Fabric
,Thermal Insulation Cover

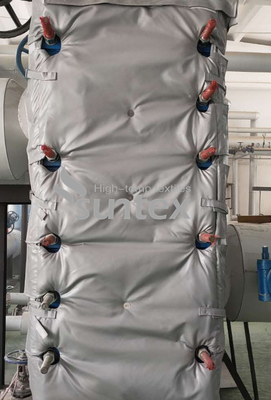

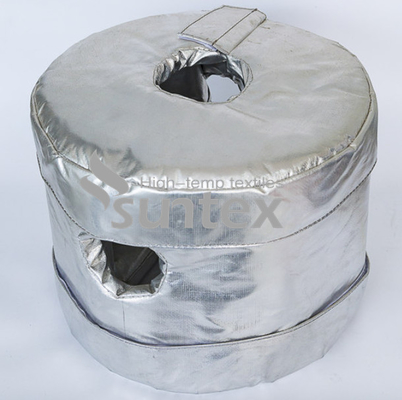

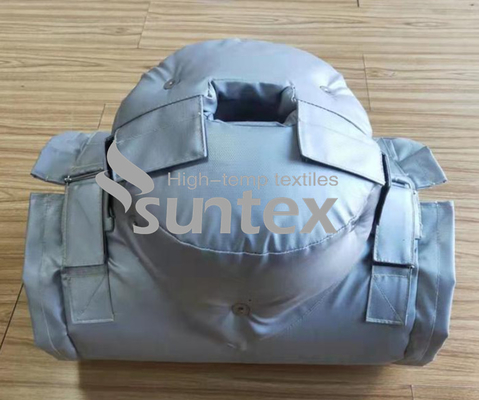

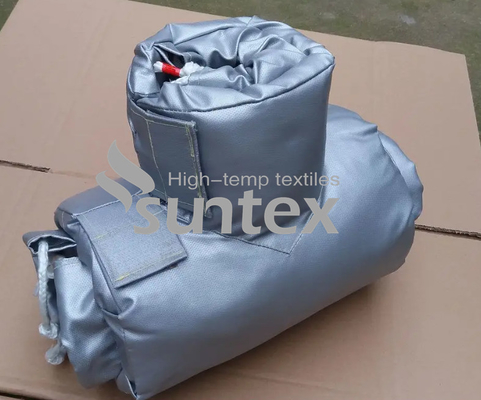

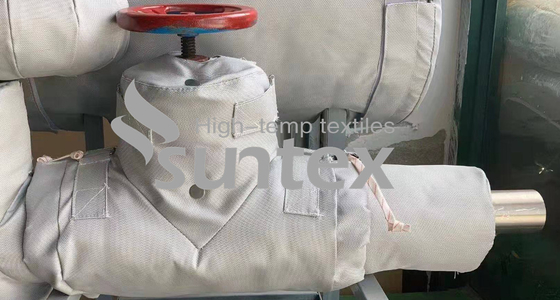

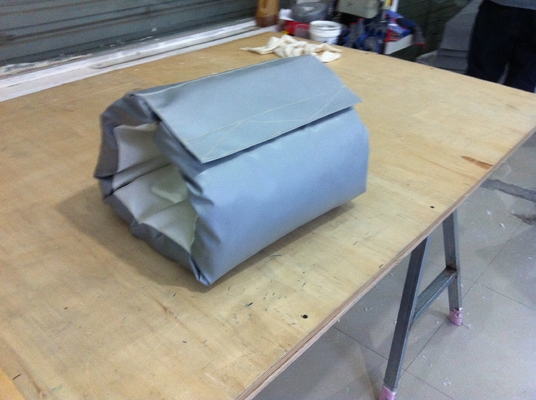

Heat Guard Fiberglass Insulation Cover For Insulation Of Flanges And Pipes
Suntex heat guard insulation cover is an economical solution for reducing heat loss and energy costs. It conserves energy, preserves process temperatures, and improve workplace safety for various applications with in process industry where heat conservation and process temperature are concerns. It is applicable for the insulation of flanges and pipes.
it is also known as removable insulation jackets made from ceramic fiber insulation and fiberglass cloth. It is asbestos free , environmentally safe, durable, reusable, and easily applicable.
Application:
It is customized and wrapped outside flanges, pipes, pumps, filters, exchange, pipeline, valves, freeze protection, and others.
characteristics of Suntex thermal insulation covers:
--Excellent control or reduction of radiant heat loss
--Improves equipment efficiency and durability
--Reduces energy consumption
--Removable and reusable
--Reduce maintenance cost
--Closed insulation system
--Personal protection
--Reduce sound transmission
--Asbestos free and environmentally safe
--Weatherproof
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
| Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
| (gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
| GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
| GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
| GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
| GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
| GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
| GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
| GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
| GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
| GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
| TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
| TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
| TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
| TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
Silicone Coated Fiberglass Fabric Excellent high & low temperature resistance
Single-sided Silicone Coated Fiberglass Fabric for Removable Thermal Insulation Jackets and Blankets
Two Sides Silicone Coated Fiberglass- Welding Blanket Factory
