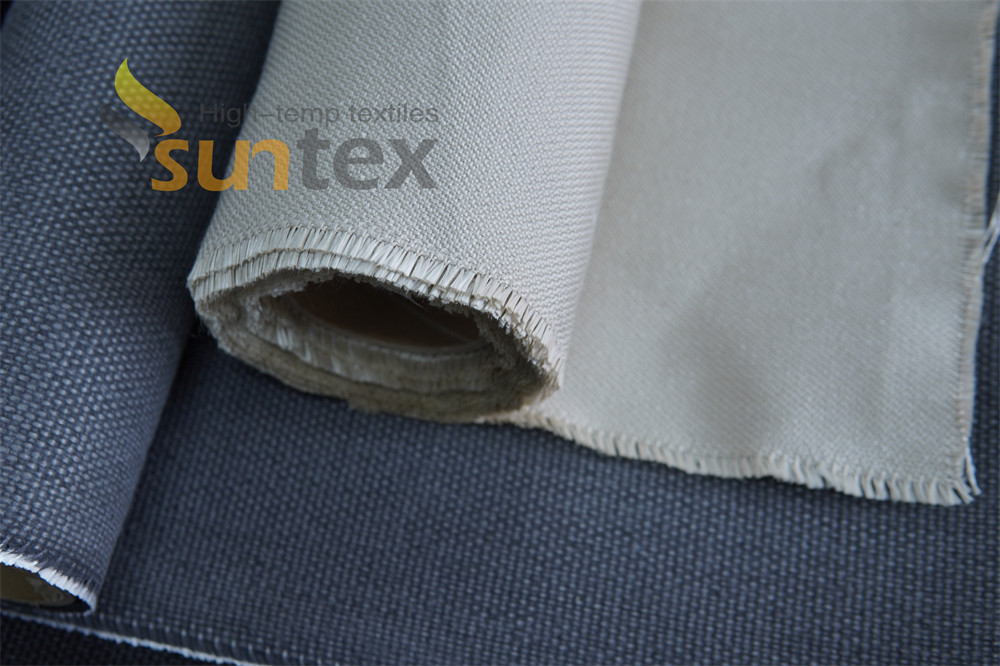

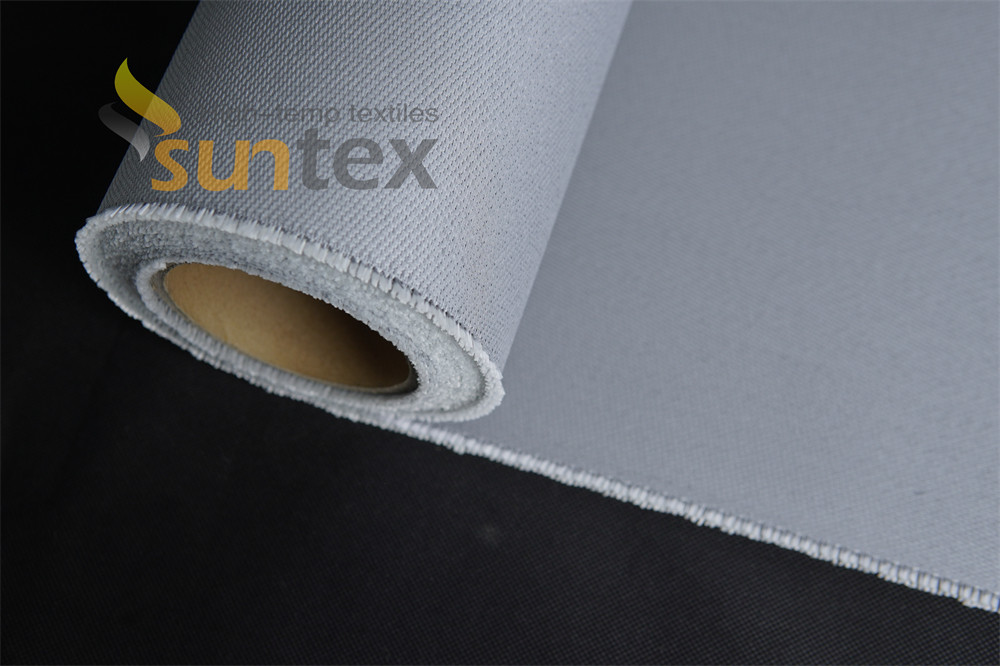

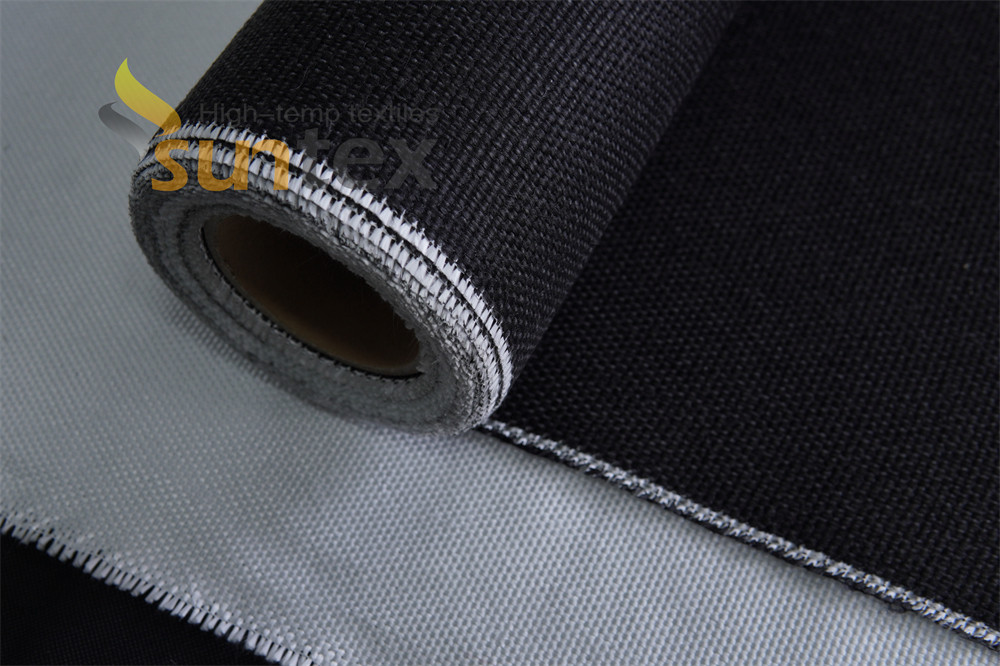

Fiberglass Coated Fabric Expansion Joint Cloth Heavy Duty High Temperature Welding Blanket

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-SI261-1020
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

silicone coated glass fiber fabric

,

expansion joint

,

fiberglass fabric roll
Temperature Resistance: -50 C Degree To 550 C Degree
Weight: 730 G/sqm OEM
Thickness: 0.53 Mm OEM
Coating: Silicon
Width: 1.5 /1.52 M
Alkali Content:: Alkali Free
Color: Tarmac
Roll Length: 50 M
Origin: Hubei, China
Product Description

730 g Fiberglass Coated With Silicone Anti Fire Fabric Air Connector Cloth



Description:



This fiberglass fabric material is impregnated with silicone rubber. The high temperature, flame retardant silicone rubber provides improved resistance to abrasion, flexing, tear and puncture. This product is designed specifically for high temperature (500°F) removable insulation blankets for valves, flanges, and fittings. Water and oil resistant, Flame retardant, Low smoke, Easily fabricated,



This is a medium weight fabric, suitable for light molten splash, weld splatter and grinding spark protection. The base fabric is coated on both sides with our special formulation of silicone rubber . Easy to work with when fabricating complex shapes for covers and shields. Provides against ozone, UV and abrasion.



Parameter List:



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot

Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI261-1020
Coating Silicone rubber 2 sides
Weight 730 ± 25 g/m2 21.5 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.53 ± 0.02 mm 0.02 ± 0.0007 inch ASTM D1777-96
Color Tarmac
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)



Typical Applications:



Smoke curtain

Fire door

Thermal insulation covers

Fire blanket

FLexible ducts

Air connector



Features:



Dimensionally stable

Low friction non-sticking smooth surfaces

Dimensional stability under heat and pressure

Excellent chemical resistance

Excellent mechanical strength

Superior heat and cold resistance

High dielectric strength

Low electrical losses – non tracking

Fiberglass Coated Fabric Expansion Joint Cloth Heavy Duty High Temperature Welding Blanket
