Chemical Resistant Non Stick Adhesive PTFE Coated Fiberglass Fabric For Packaging Industry Baking

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-PTFE133-8003
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

Chemical Resistant Coated Fiberglass Fabric

,

Non Stick Adhesive Fiberglass Fabric

,

Packaging Industry Ptfe Fiberglass Fabric

Weight: 580g/sqm
Width: 1000mm 1520mm
Thickness: 0.43mm
Color: Grey
Weave: 4H Satin
Temperature Resistance /Working Temperature: 550℃ 1000℉
Coated: PTFE One Side
Fiberglass: E-glass
Product Description

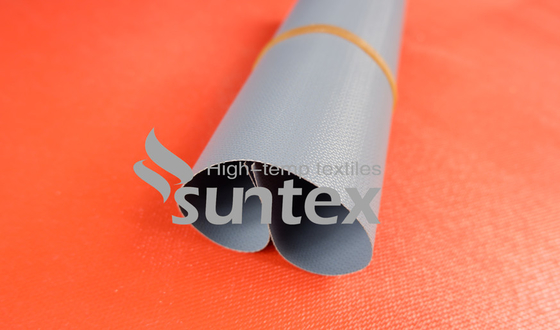

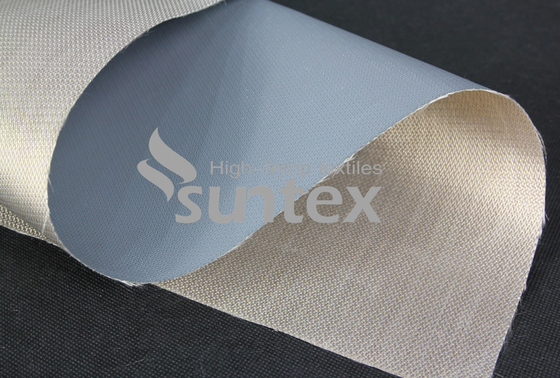

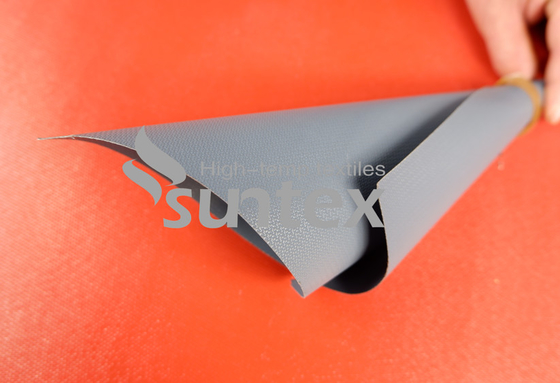

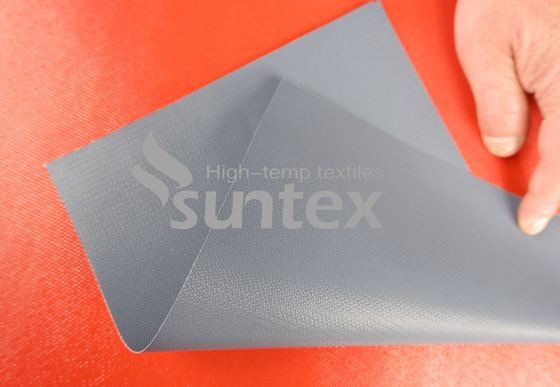

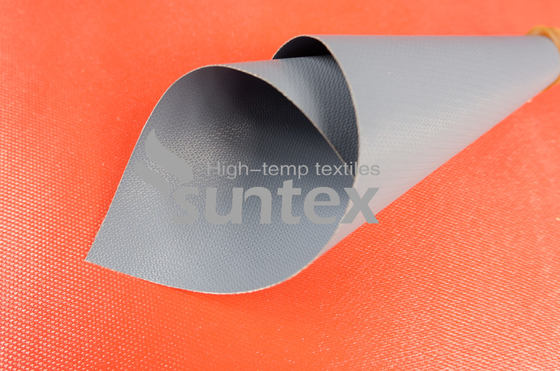

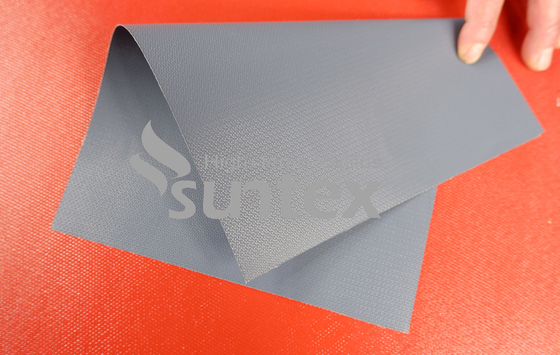

Chemical Resistant Non Stick Adhesive PTFE Coated Fiberglass Fabric For Packaging Industry Baking



Introduce



GF430P-PTFE133-8003 is 430g E-glass basic glassfiber coating with 150g PTFE single side. It's weight and thickness are suitable for many applications.



Advantage



GF430P-PTFE133-8003 is 0.43mm in thickness at a middle level PTFE Coated Fiberglass Fabric, felt hard and convient to cutting and sewing. PTFE membrane has good abrasion resistance, so can be used in movable parts.

It's can bear temperature up to 300℃. It also has property of anti-stastic.



Data



Weight 580 g/m2
Thickness 0.43 mm
Width 1000mm 1520mm 1550mm 2000mm
Coated PTFE
Color Grey
Fire resistance Good
Working temperature Basic fabric 550 ℃, PTFE coating 330 ℃.
Weave 4H Satin
Yarn warp EC9 136 1*0
Yarn weft EC9 136 1*0
Construction warp 18 ends/cm
Construction weft 12.6 ends/cm
Fiberglass E-Glass



Applications



GF430P-PTFE133-8003 PTFE Coated Fiberglass Fabric can be used in many industry, just like ship building, chemical material stock, heat insulation and air distribution. We use it make dust Lagging, smoke curtain, reusable thermal insulation jacket and thermal insulation pad.



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.


Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.


Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.


Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.


Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.


Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.


Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.


Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.


Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.

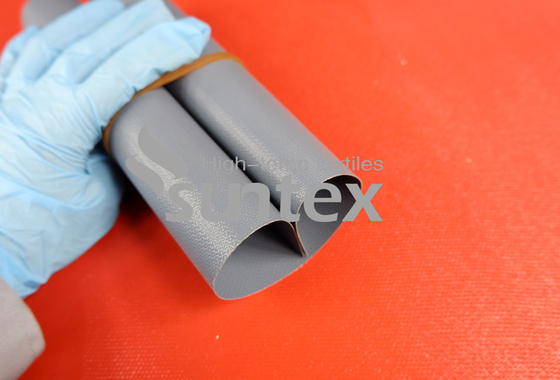

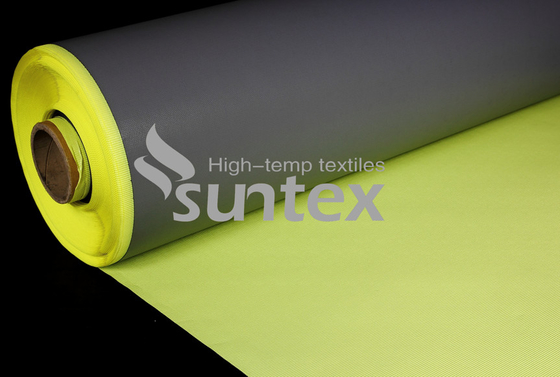

Chemical Resistant Non Stick Adhesive PTFE Coated Fiberglass Fabric For Packaging Industry BakingChemical Resistant Non Stick Adhesive PTFE Coated Fiberglass Fabric For Packaging Industry Baking
