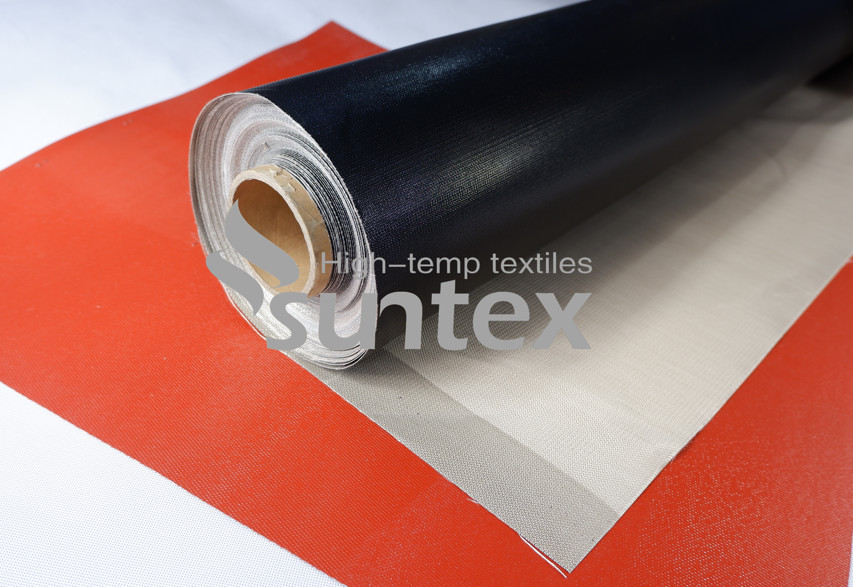

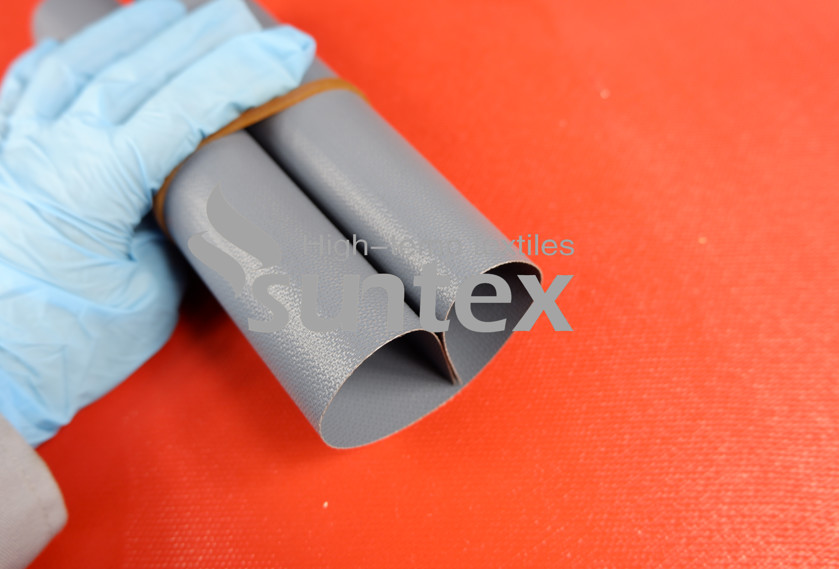

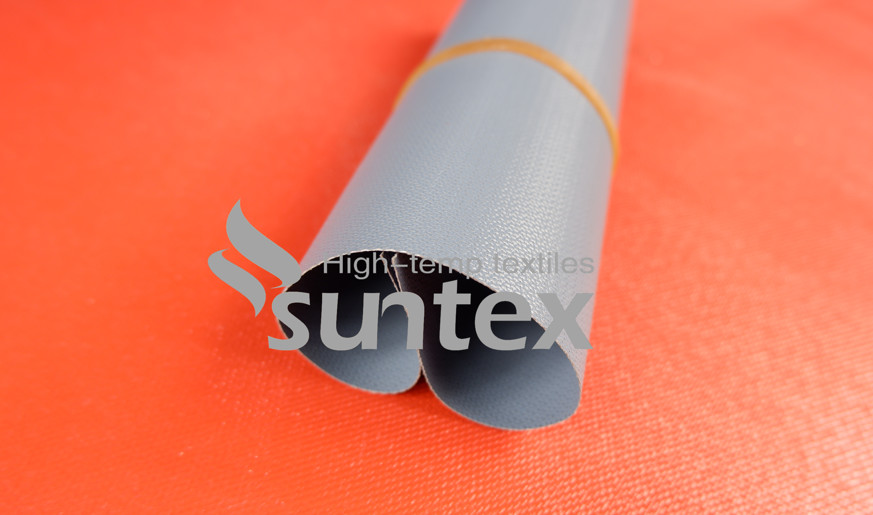

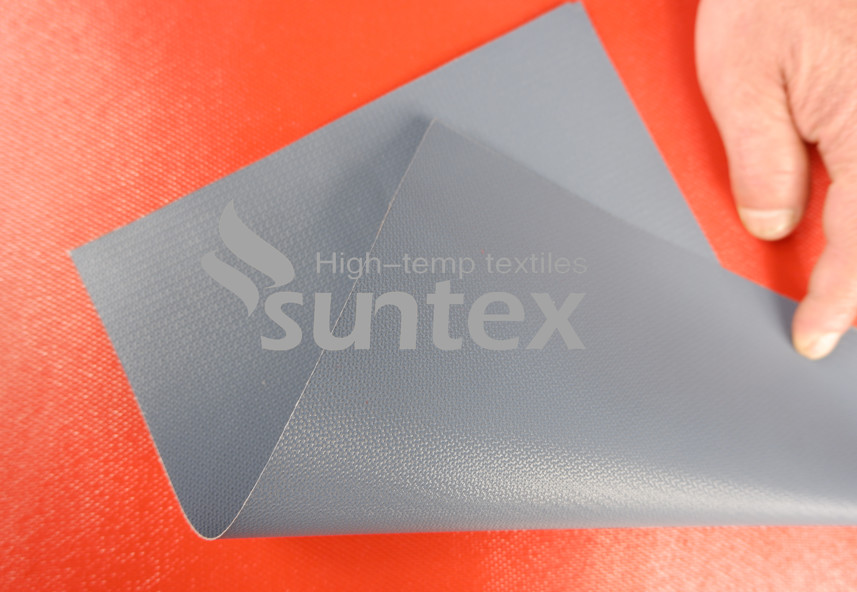

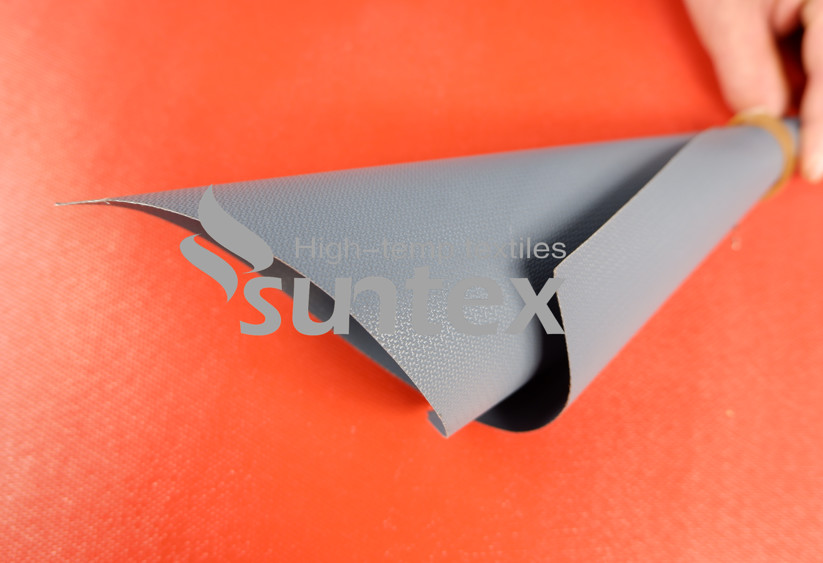

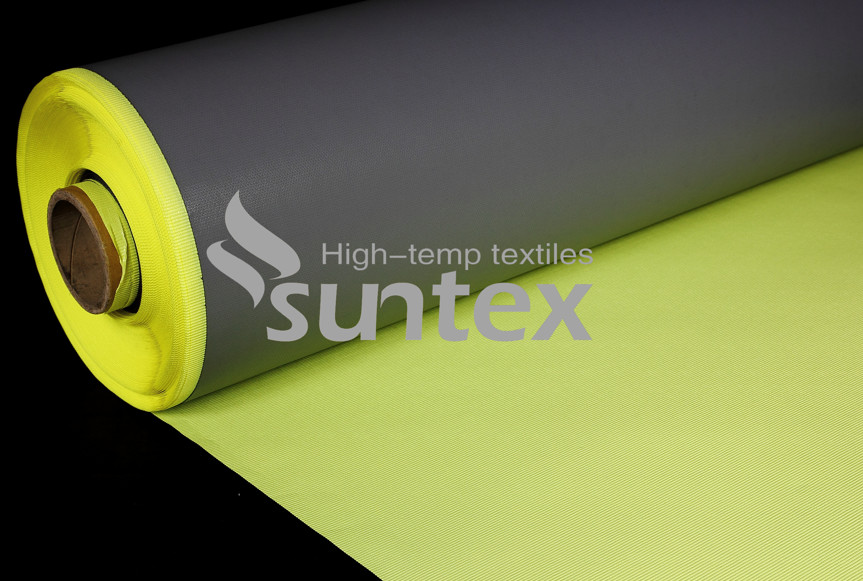

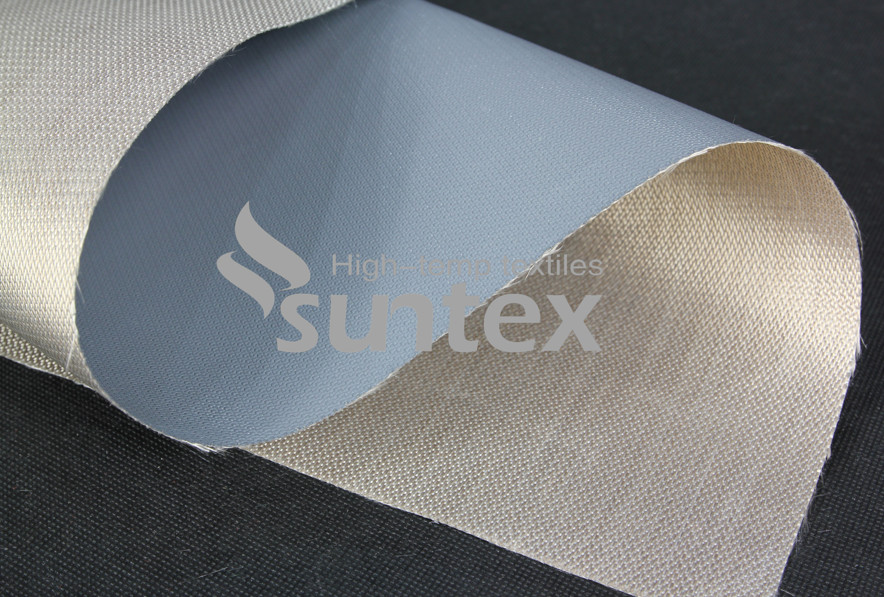

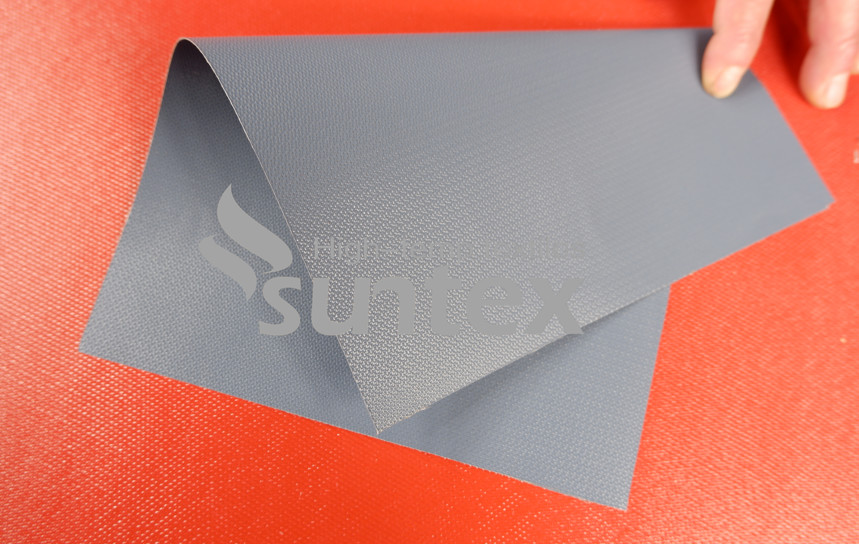

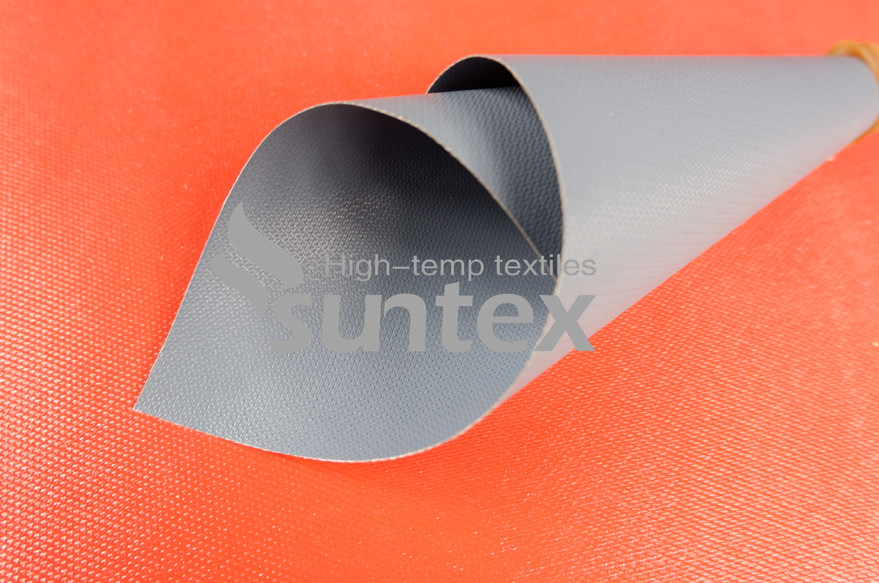

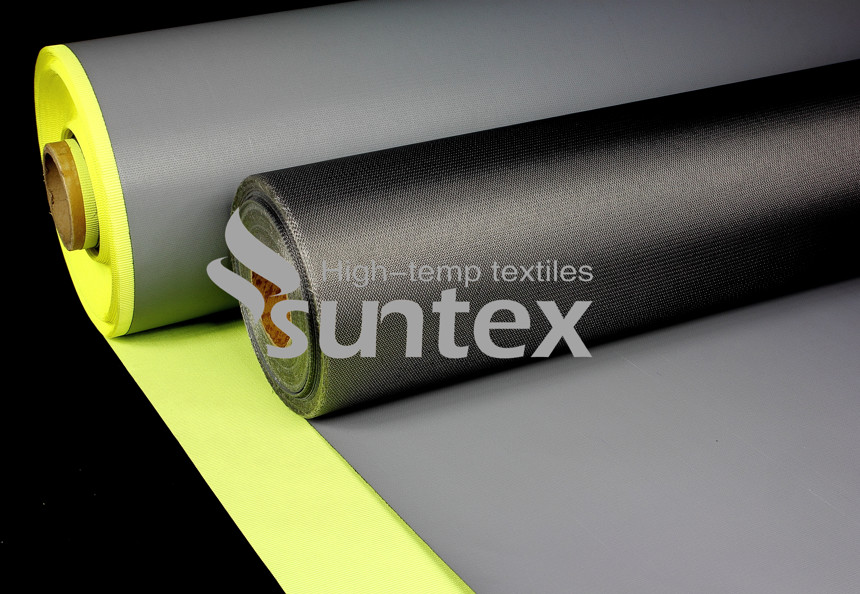

2 Sided Ptfe Coated Fiberglass Fabric With Crowfoot Pattern

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-PTFE135-8006
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

2 Sided Ptfe Coated Fiberglass

,

Crowfoot Pattern Ptfe Coated Fiberglass

,

Ptfe Fiberglass Thermal Insulation Fabric

Standard Weight: 20oz/sqy
Standard Width: 1000mm 1520mm 1550m 2000m
Standard Thickness: 0.017inch
Colour: Grey
Pattern: Crowfoot
Coating Temperature Resistance: 620℉
Basic Fabric Temperature Resistance: 1000℉
Coating: PTFE 2 Side
Fiberglass: E-glass
Product Description

Ptfe Coated Fiberglass Fabric Wholesale Best Quality Ptfe Coated Fiberglass Fabric



Introduce



GF430P-PTFE135-8006 is a middle weight, thickness E-glass woven glass fiber fabric coated with special PTFE coating. It has black version, can provide trustable anti-static guard for you.



Advantage



PTFE Coated Fiberglass Fabric GF430P-PTFE135-8006 has well fire, abrasion resistance than any other ptfe coated fiber glass. It's anti static feature is even better. In order to fit different scene of application, thickness, unit weight, pattern, all can be customized base on your use method.



Data



Standard weight 20oz/y2
Standard Thickness 0.017inch
Standard width 1000mm 1520mm 1550mm 2000mm
Coating PTFE
Colour Grey
Fire resistance Well
Coating temperature resistance PTFE coating 620℉
Basic fabric working temperature Basic fabric 1000℉
Yarn warp ECG 37 1/0
Yarn weft ECG 37 1/0
Construction warp 48 ± 3 ends/inch
Construction weft 32 ± 3 ends/inch



Applications



PTFE Coated Fiberglass Fabric Except used as fire protect and heat proof, GF430P-PTFE135-8006 can be used in liquid chemical material stock, for it anti static property can eliminate any sparks caused by static. its products contain: dust Lagging, fire curtain, removable heat insulation jacket and heat insulation mattress.



Guarantees



All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)

Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
