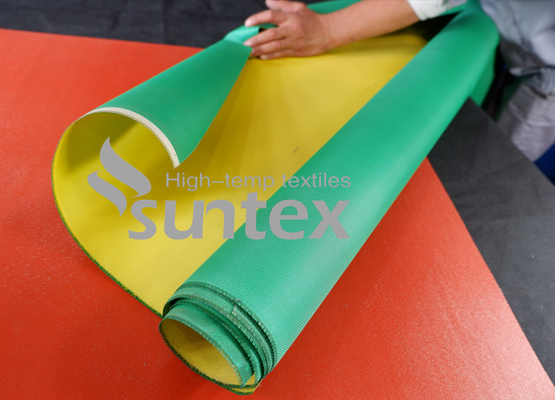

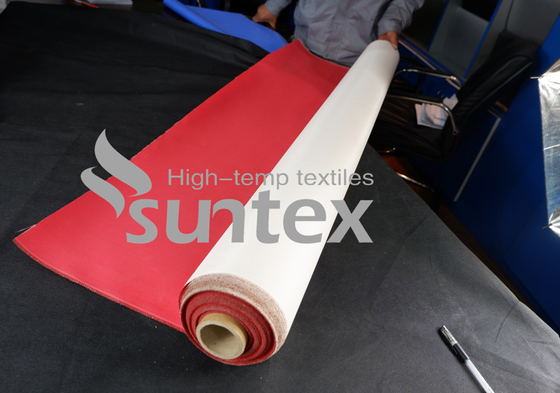

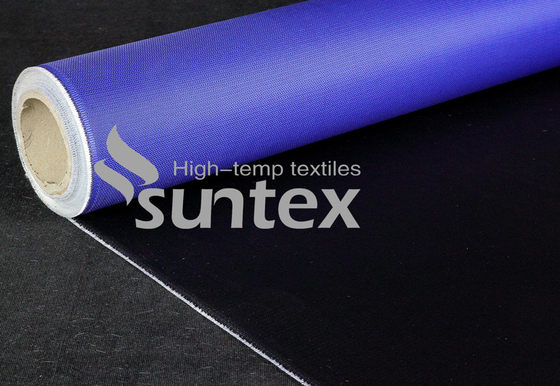

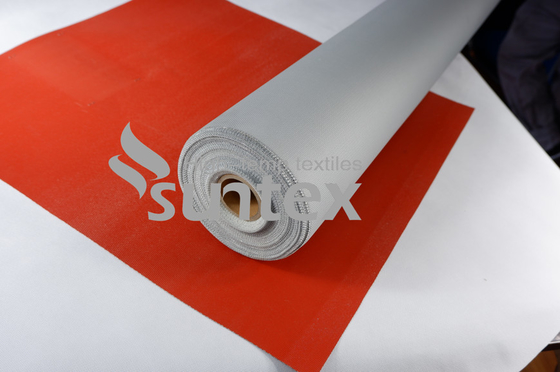

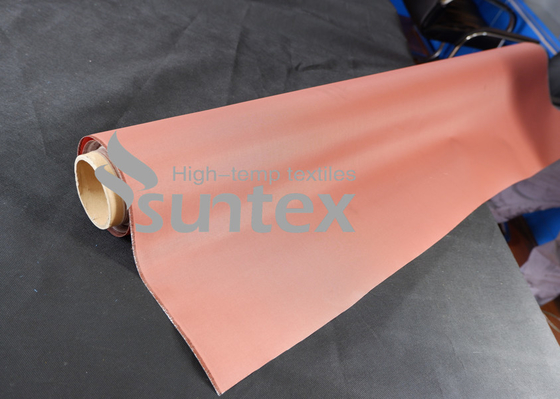

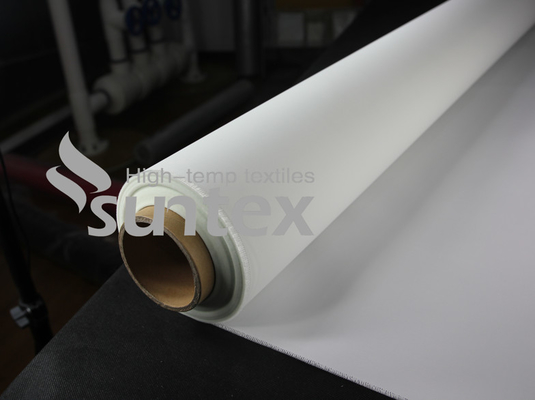

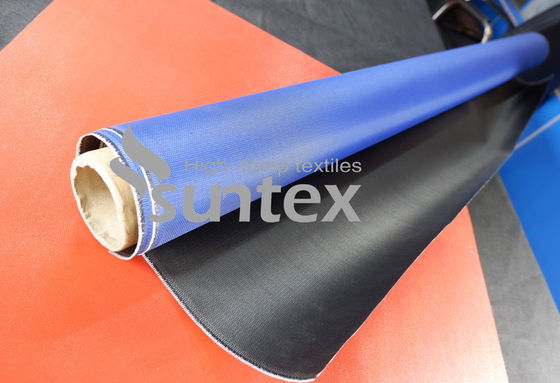

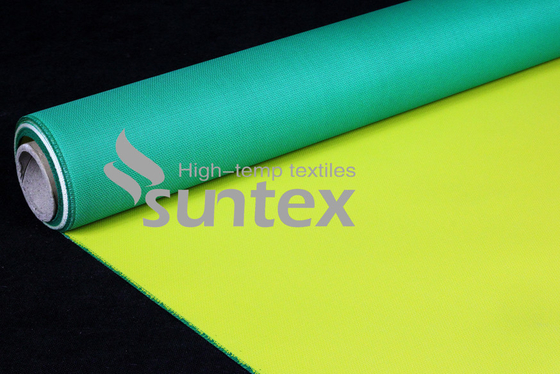

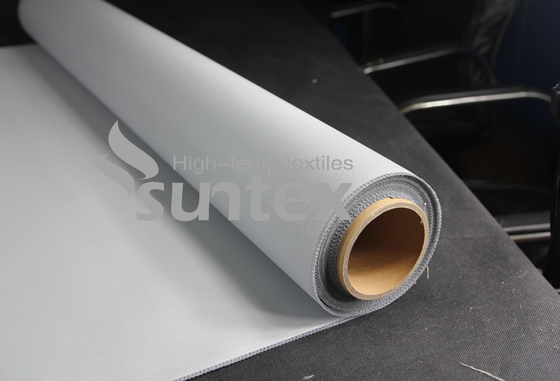

Waterproof Flexible Good Chemical/Heat Resistant PU Coated Fiberglass Fabric Fireproof Cloth for Camping Tents

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF200P-PU210-2001
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

coated fiberglass fabric

,

rubber coated fiberglass fabric

,

pu coated fiberglass fabric

Weight: 220g/sqm
Width: 1000mm 1520mm 1550m 2000m
Thickness: 0.21mm
Fiberglass Fabric Color: White
Weave: Plain / Twill / Satin / Crowfoot
Temperature Resistance: 550℃ 1000℉
Coated: PU Two Sides
Fiberglass: E-glass
Product Description

Fire Resistance PU Coated Fiberglass Fabric For Curtain Fabric Fire Protection 0.21mm Thickness Compensator Cloth



Introduce



GF200P-PU210-2002 is a light-weight fiberglass fabric with a specially formulated polyurethane polymer. It’s for the manufacturer of fabric ducts, smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.



Advantage



1. Certified fire resistance up tp M0, withstand 550℃ high temperature Fiberglass Fabric.

2. Use as fiber ducts, customer can choose color which can harmonized with decoration.

3. Soft and thine material, easy to be cut, sewn and fabricated.

4. Good abrasion and tensile resistance property.

5. Except colour, thickness, weight and weave, all can be customized base on your application.



Waterproof Flexible Good Chemical/Heat Resistant PU Coated Fiberglass Fabric Fireproof Cloth for Camping Tents



Data



Weight 220 g/m2
Thickness 0.21 mm
Width 1000mm
Coating PU
Color of surface White
Fire resistance Good
Working temperature Basic fabric 550 ℃, PU coating 180 ℃.
Coating temperature resistance PU coating 180 ℃
Basic fabric working temperature Basic fabric 550 ℃
Weave Plain
Yarn warp EC9 68 1/0
Yarn weft EC9 68 1/0
Construction warp 18 ends/cm
Construction weft 12.6 ends/cm
Fiberglass E-Glass



Applications



GF200P-PU210-2001 Fiberglass Fabric is design for Air Distribution Systems, the most usage is fabric duct. it can also used as smoke curtain, fire blanket, expansion joint.



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides
