Fiberglass Cloth/Fabric Coated with PU Material for Pipe Fabric Soft Connection

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-PU21D-2009
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

coated fiberglass fabric

,

polyurethane coated fabric

,

silicone coated fiberglass fabric

Unit Weight: 13.5 Oz/sq.y
Standard Width: 1000mm 1550mm
Standard Thickness: 0.017 Inch

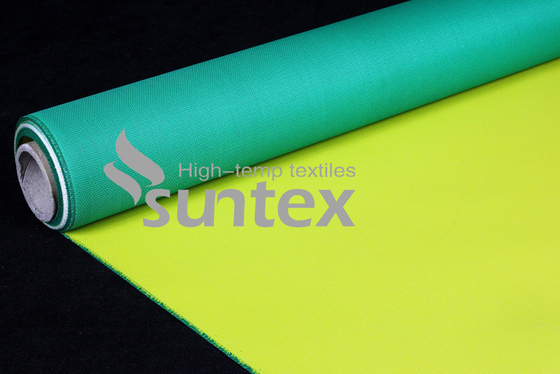

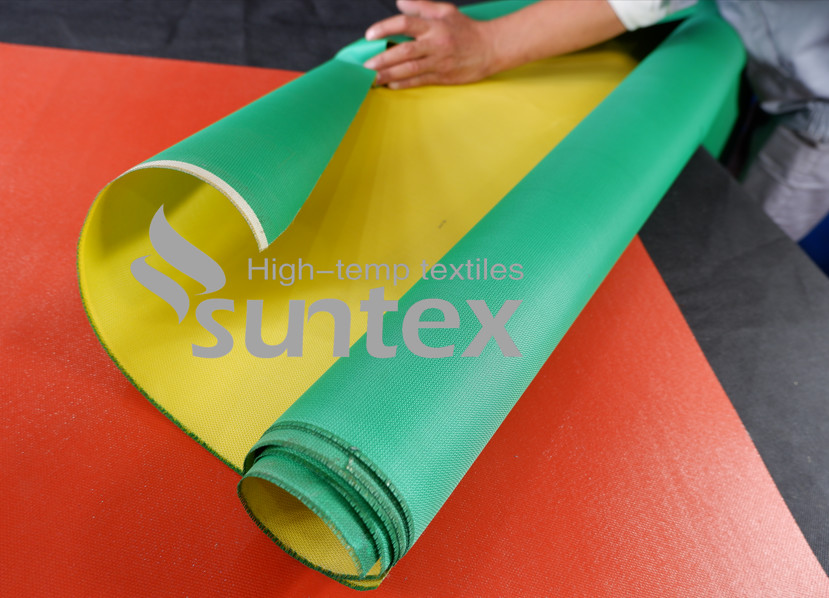

Colour: Yellow/Green
Weave: Crowfoot
Coating Temperature Resistance: 180℃ 350℉
Basic Fabric Temperature Resistance: 550℃ 1000℉
Coating: Polyurethane 2 Sides
feature1: Fire Resistant
feature2: Waterproof
Product Description

Fire Retardant PU Coated Waterproofing Fiberglass Cloth Fire Resistant Fabric



Introduce



PU coated fabric is fiberglass cloth coated with flame retarded PU (polyurethane) on one-sided or double-sided surface.

PU coating imparts fiberglass cloth good weave setting (high stability) and water resistance properties.



Advantage



Suntex Polyurethane PU coated fiberglass cloth can withstand a continuous working temperature of 550C and a short duration working temperature of 600C.

Compared with basic woven glass fiber fabric, It has many good features such as good air gas sealing, fire resistant, abrasion resistance, oils, solvents resistance chemical resistant ability, no skin irritation, halogen free.



Fiberglass Fabric​ Data



Total weight 13.5 oz/y2
Standard Thickness 0.017 inch
Standard width 1000mm 1550mm
Coating Polyurethane
Colour of coating Yellow/Green
Fire resistance Excellence
Coating temperature resistance PU coating 180 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Crowfoot
Fiberglass E-Glass



Fiberglass Fabric​ Applications



Can be used in fire and smoke applications, such as welding blanket,

fire blanket, fire curtain, fabric air distribution ducts, fabric duct connector,

thermal insulation cover, blanket, jacket, pad, mattress.



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides

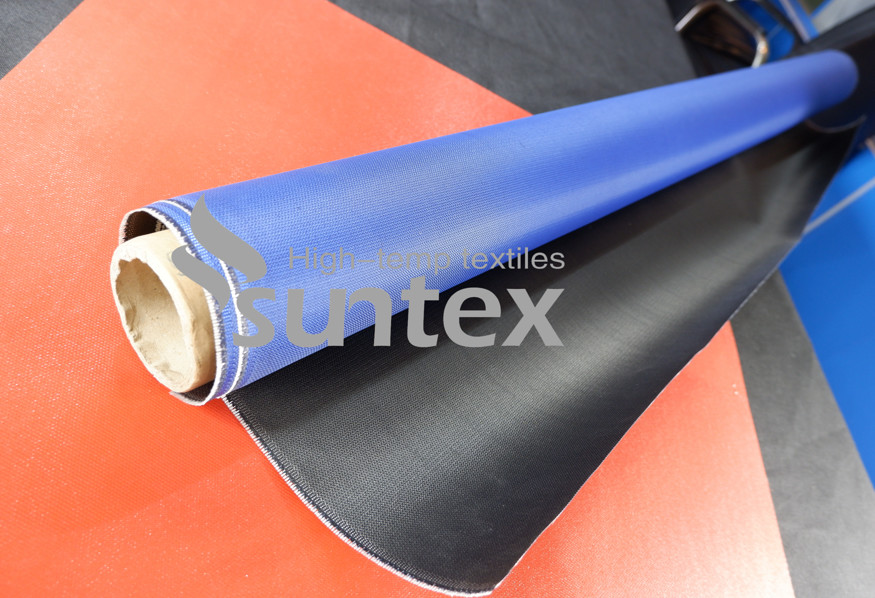

GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides

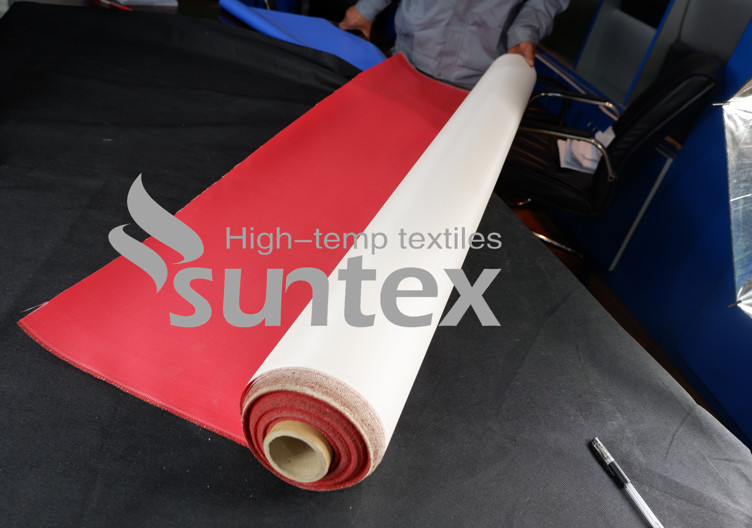

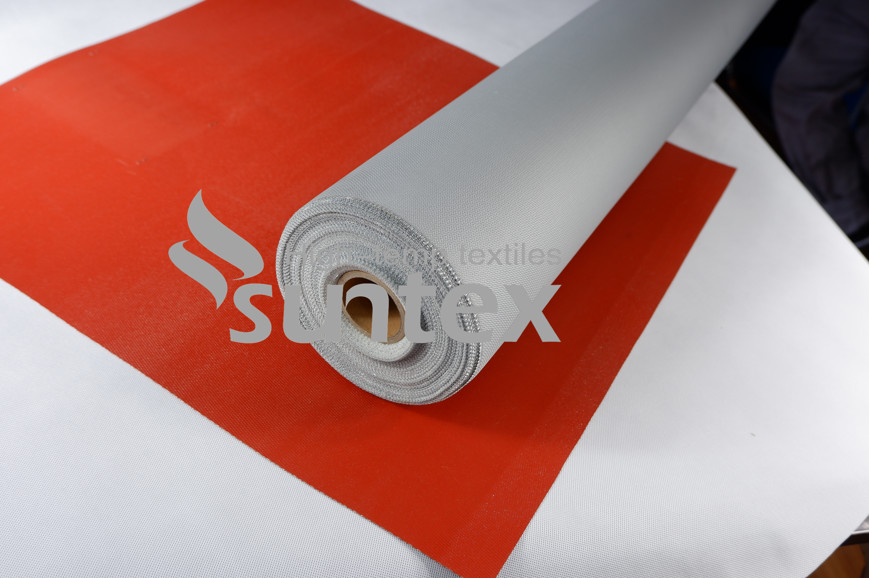

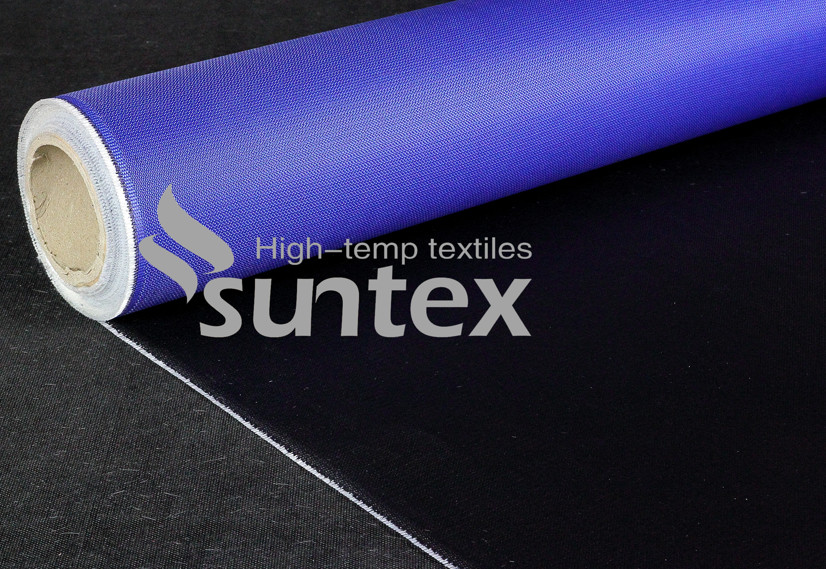

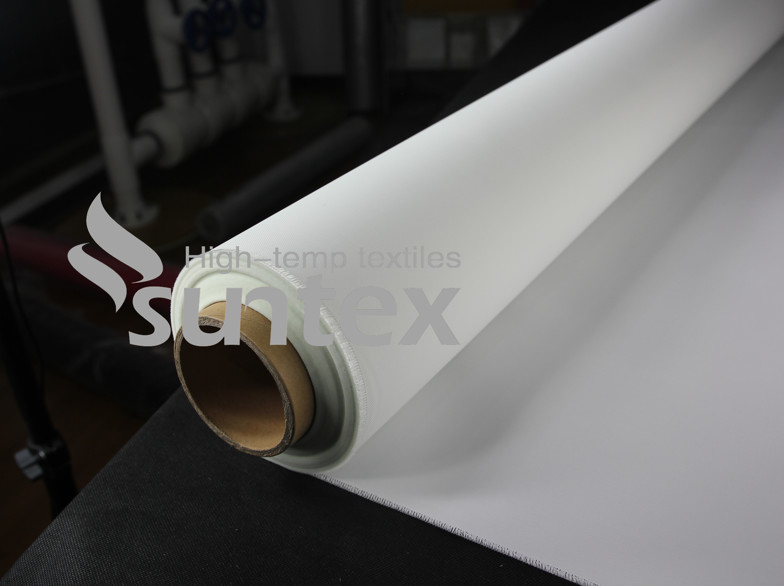

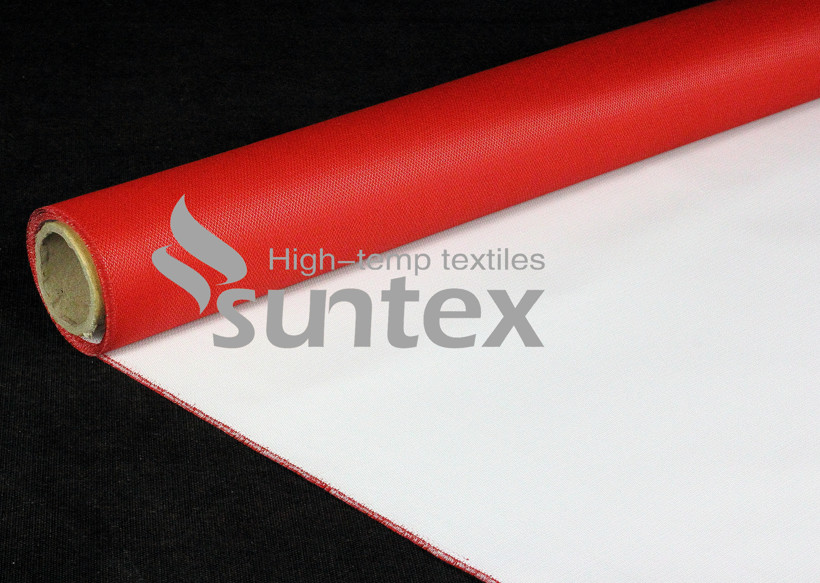

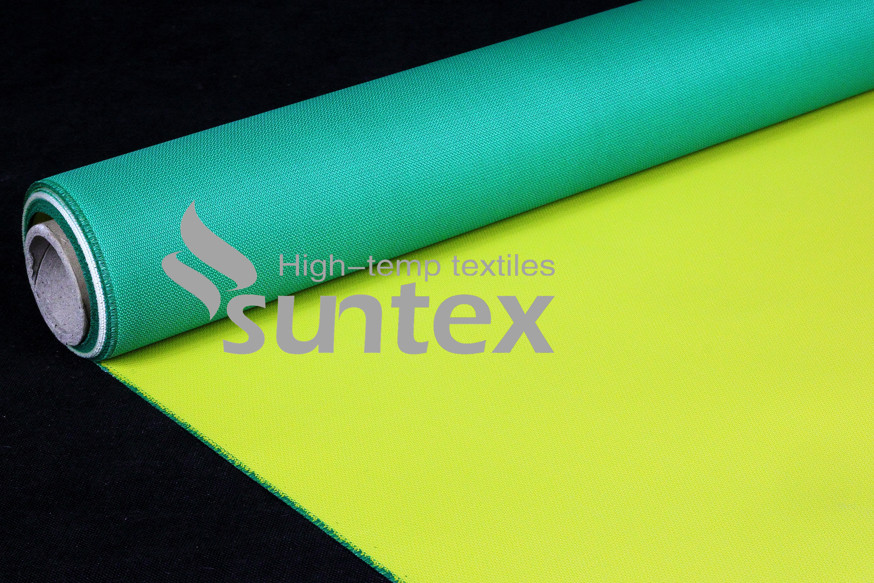

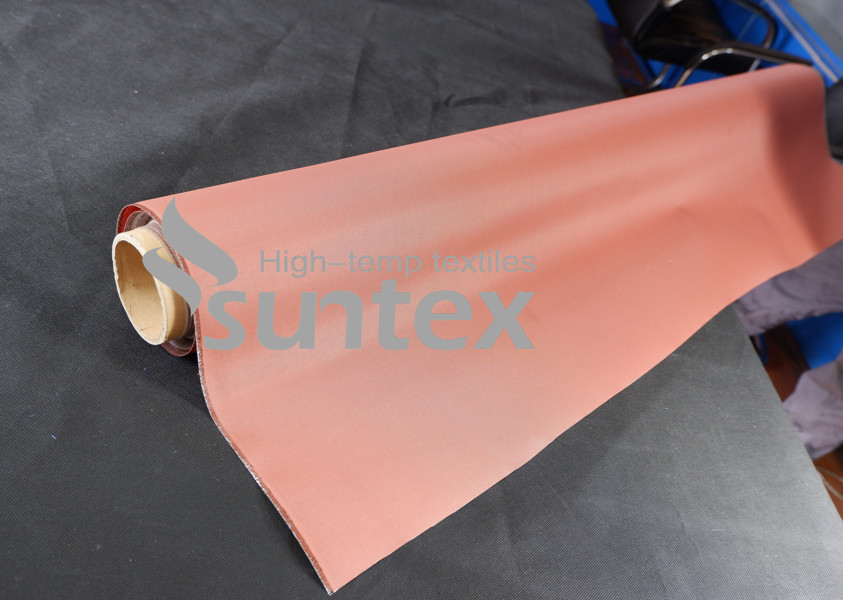

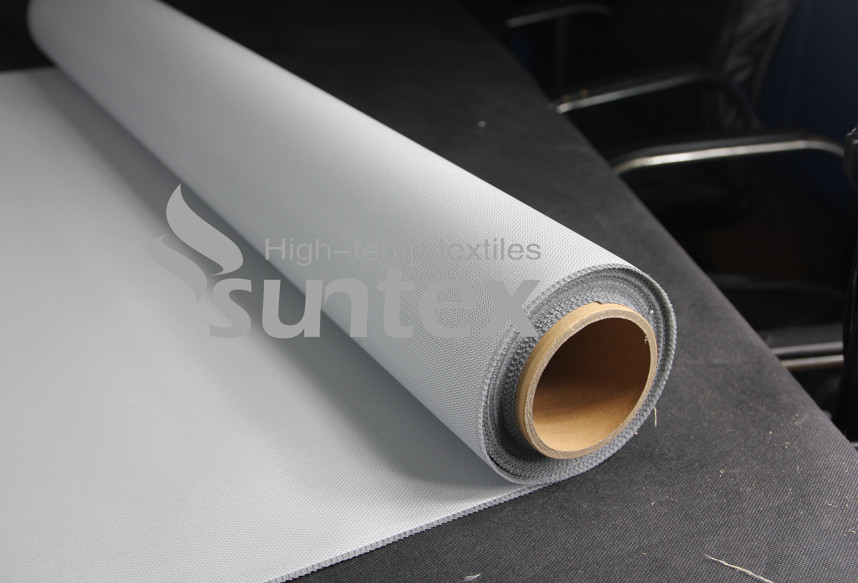

Fiberglass Cloth/Fabric Coated with PU Material for Pipe Fabric Soft ConnectionFiberglass Cloth/Fabric Coated with PU Material for Pipe Fabric Soft Connection
