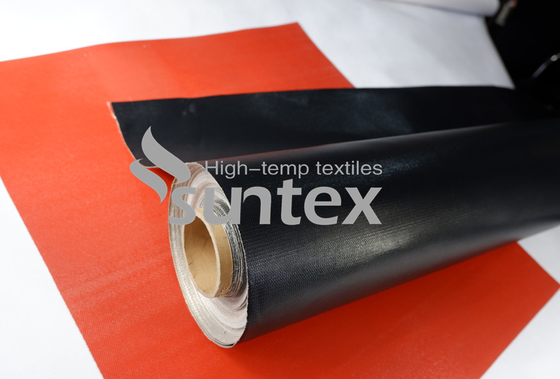

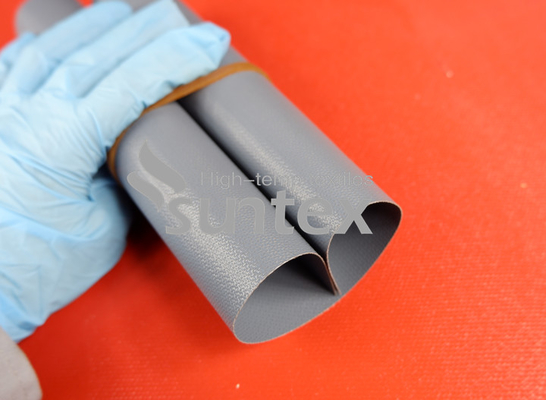

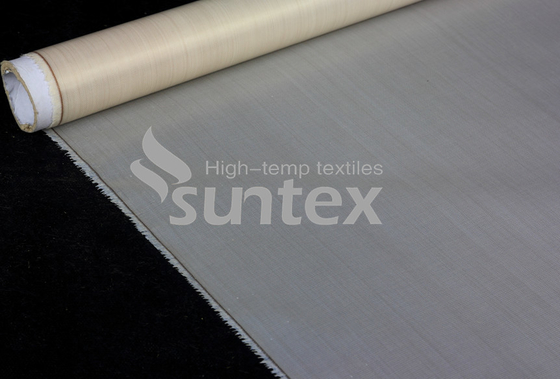

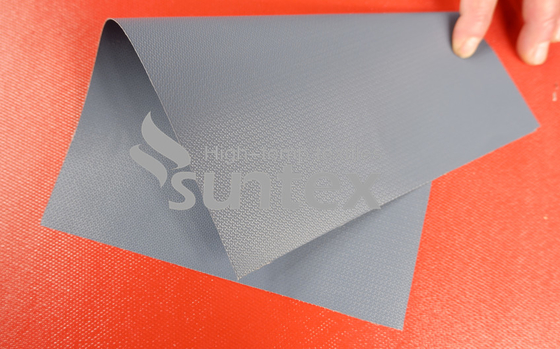

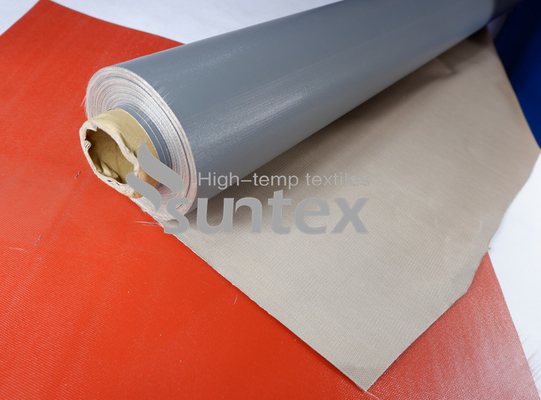

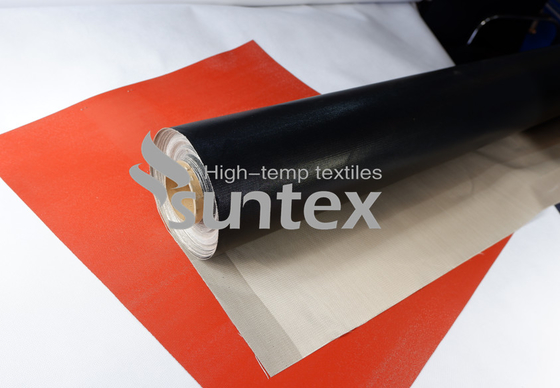

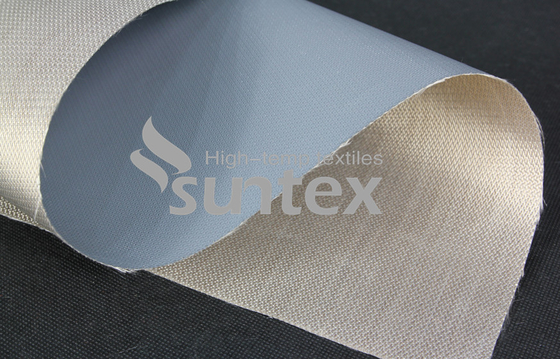

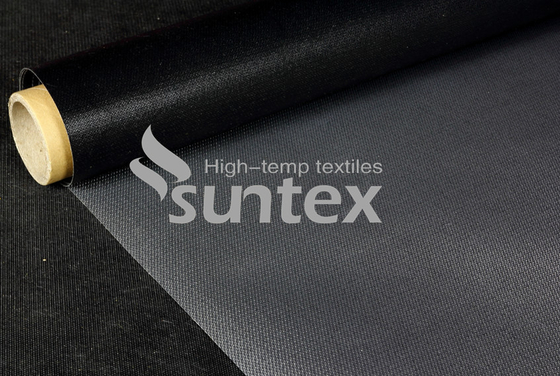

Silicone PTFE Coated Heat Resistant Heat Insulation Cloth Glass Fiber Fiberglass Fabric for Coating

Place of Origin:Jiangsu, China
Brand Name:Suntex
Model Number:GF430P-PE245-8018
Minimum Order Quantity:500 Square Meter/Square Meters
Price:US$6.22 - US$6.60 / Square Meter
Payment Terms:L/C, D/P, T/T
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

coated fiberglass fabric

,

ptfe coated fiberglass fabric

,

silicone coated fiberglass fabric

Weave Type: Twill Woven,plain Woven Or Customized
Surface Treatment: PTFE Coated
Material: Fiberglass
Coating: Two Side PTFE Coated
Thickness: 0.42mm
Width: 1000~4000mm
Standing Temperature: -70 To +330 Degree C
Type: PTFE Coated Fiberglass Cloth
Good Feature: Corrosion Resistance, Flame Retardant, Heat Insulation, Non-stick, Weatherproof
Application: Fire, Welding, Heat Retardant
Color: Black,green,grey And Customed Colors
Product Description

0.42mm High Temperature Resistance Ptfe Fiberglass Coated Fabric for the heat shield and fire/welding





PTFE glass fabrics are made of woven fiberglass that has been coated with PTFE. They are designed for a wide range of applications. They have a nonstick surface, withstand temperature to 620° f. They are chemically inert, have the tear-resistant ability and have excellent electrical properties. Their applications include thermal insulation, welding protection, fire protection, chemical plant, oil refinery, shipyard, conveyor belts, gaskets, seals, fabric air duct connectors, fabric air distribution ducts, and so on.



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 136 1﹡0 ECG 37 1/0
Weft EC9 136 1﹡0 ECG 37 1/0
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96





COATED FABRIC Coating style No. PTFE245-8018
Coating PTFE coated on both sides
Weight 610 ± 20 g/m2 18± 0.6 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.017 ± 0.0007 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Antistatic Yes(Static Dissipative)
Temp resistance

Glass fabric up to 550℃ (1000℉)

PTFE coating up to 330℃ (620℉)



Properties: temperature up to +330°c, non-stick surface, chemically inert, high tensile strength, excellent electrical properties, waterproof, resistance to weather, easy to clean.



Applications:

-- welding blanket and curtains
-- fire doors/curtains/blankets
-- thermal insulation

-- expansion joints

-- chemical plant, oil refinery, shipyard, forge
-- other fire and smoke control systems

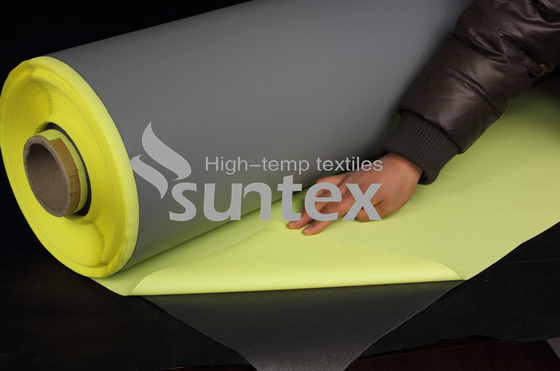

Silicone PTFE Coated Heat Resistant Heat Insulation Cloth Glass Fiber Fiberglass Fabric for Coating

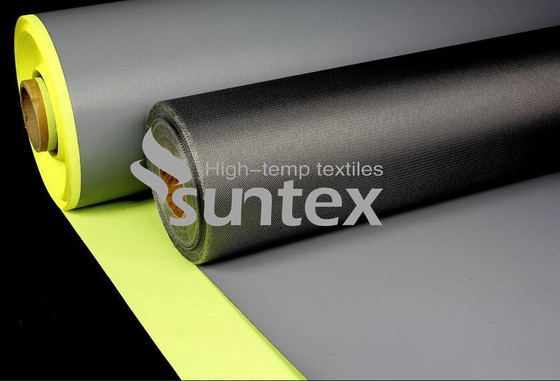

Silicone PTFE Coated Heat Resistant Heat Insulation Cloth Glass Fiber Fiberglass Fabric for Coating
