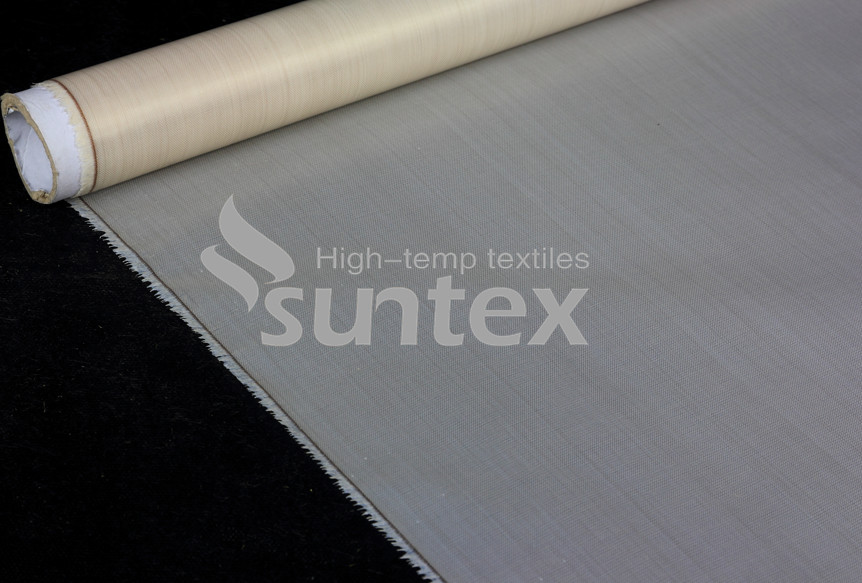

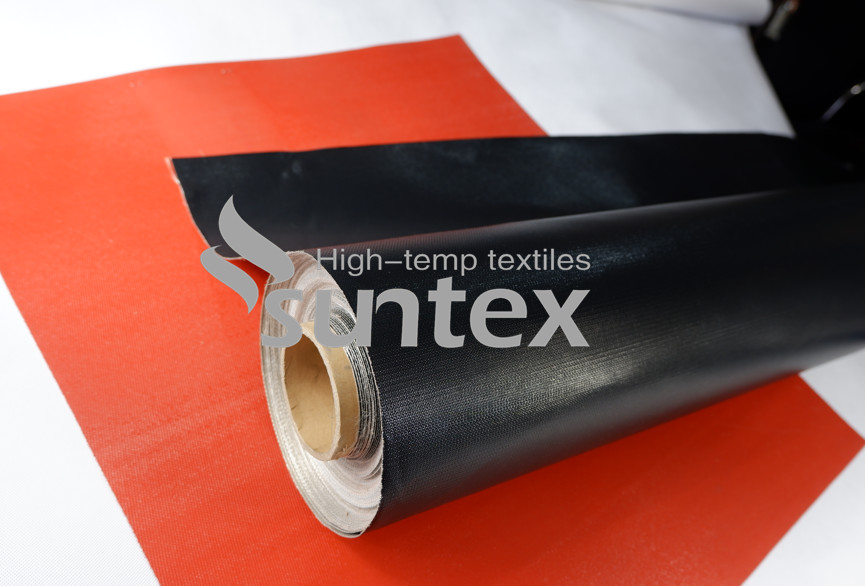

PTFE Coated Fiberglass Fabric for Electronic Insulation and Heat Press Release Sheet
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 580g/sqm | Width | 1000mm 1520mm |
|---|---|---|---|
| Thickness | 0.43mm | Color | Grey |
| Weave | 4H Satin | Temperature Resistance /Working Temperature | 550℃ 1000℉ |
| Coated | PTFE One Side | Fiberglass | E-glass |
| High Light | coated fiberglass fabric,ptfe coated fiberglass fabric,silicone coated fiberglass fabric |
||
Product Description
Chemical Resistant Non Stick Adhesive PTFE Coated Fiberglass Fabric For Packaging Industry Baking
Introduce
GF430P-PTFE133-8003 is 430g E-glass basic glassfiber coating with 150g PTFE single side. It's weight and thickness are suitable for many applications.
Advantage
GF430P-PTFE133-8003 is 0.43mm in thickness at a middle level PTFE Coated Fiberglass Fabric, felt hard and convient to cutting and sewing. PTFE membrane has good abrasion resistance, so can be used in movable parts.
It's can bear temperature up to 300℃. It also has property of anti-stastic.
Data
| Weight | 580 g/m2 |
| Thickness | 0.43 mm |
| Width | 1000mm 1520mm 1550mm 2000mm |
| Coated | PTFE |
| Color | Grey |
| Fire resistance | Good |
| Working temperature | Basic fabric 550 ℃, PTFE coating 330 ℃. |
| Weave | 4H Satin |
| Yarn warp | EC9 136 1*0 |
| Yarn weft | EC9 136 1*0 |
| Construction warp | 18 ends/cm |
| Construction weft | 12.6 ends/cm |
| Fiberglass | E-Glass |
Applications
GF430P-PTFE133-8003 PTFE Coated Fiberglass Fabric can be used in many industry, just like ship building, chemical material stock, heat insulation and air distribution. We use it make dust Lagging, smoke curtain, reusable thermal insulation jacket and thermal insulation pad.
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||

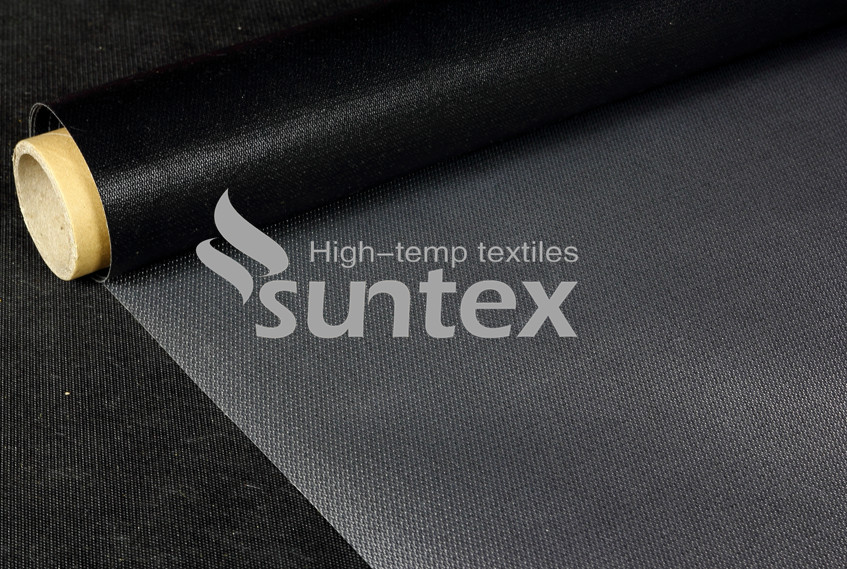

| GF430P-PTFE135-8001 | 580 | 17 | 0.43 | 0.016 | Black | 1 side |
| GF430P-PTFE133-8003 | 580 | 17 | 0.43 | 0.016 | Silver Grey | 1 side |
| GF430P-PTFE233-8006 | 610 | 20 | 0.45 | 0.017 | Black/Grey | 2 sides |
Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
