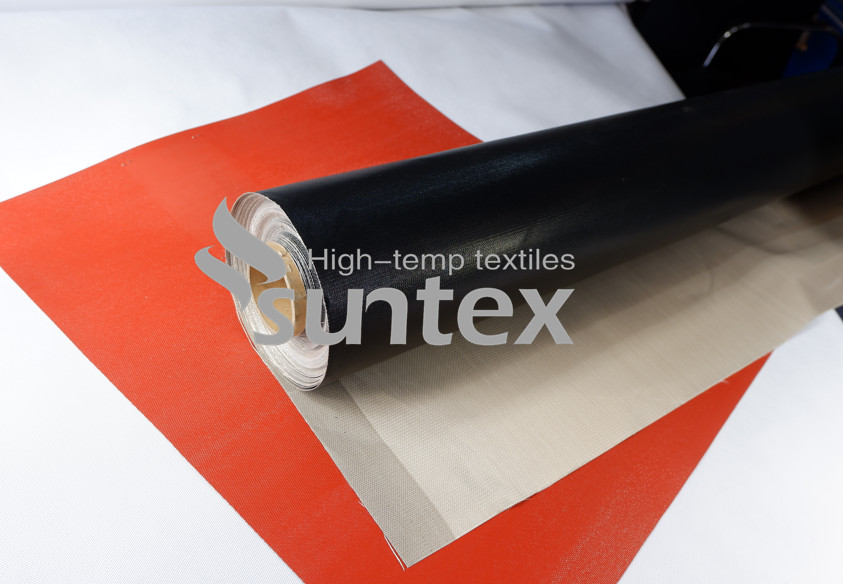

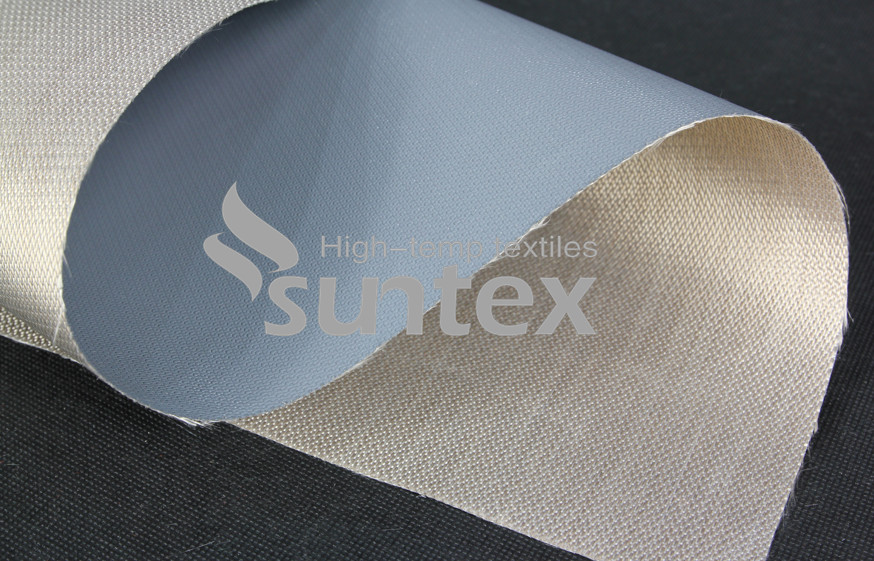

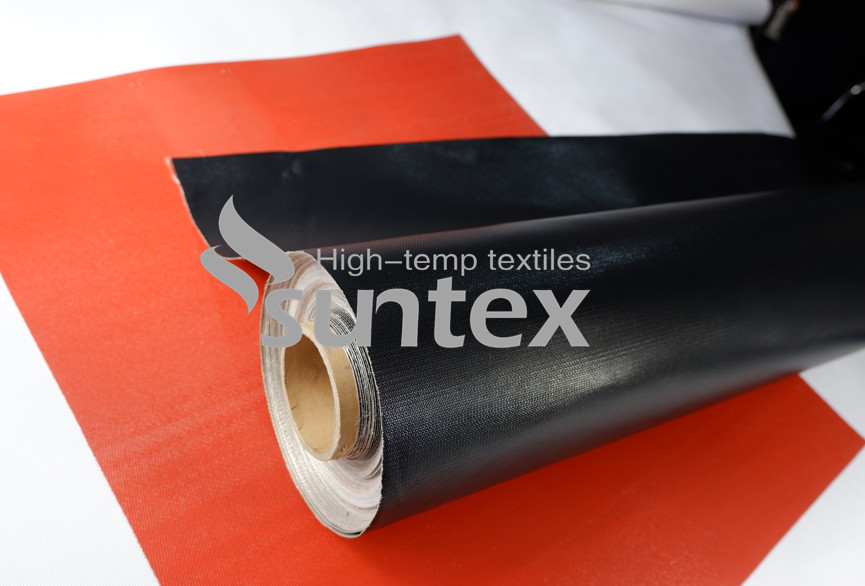

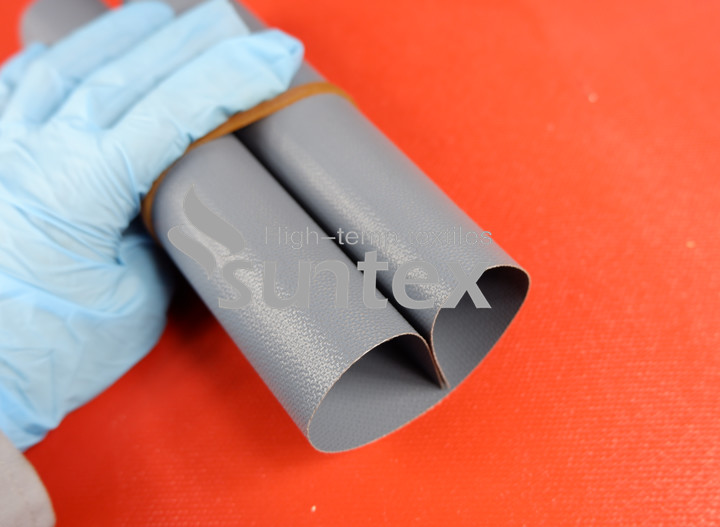

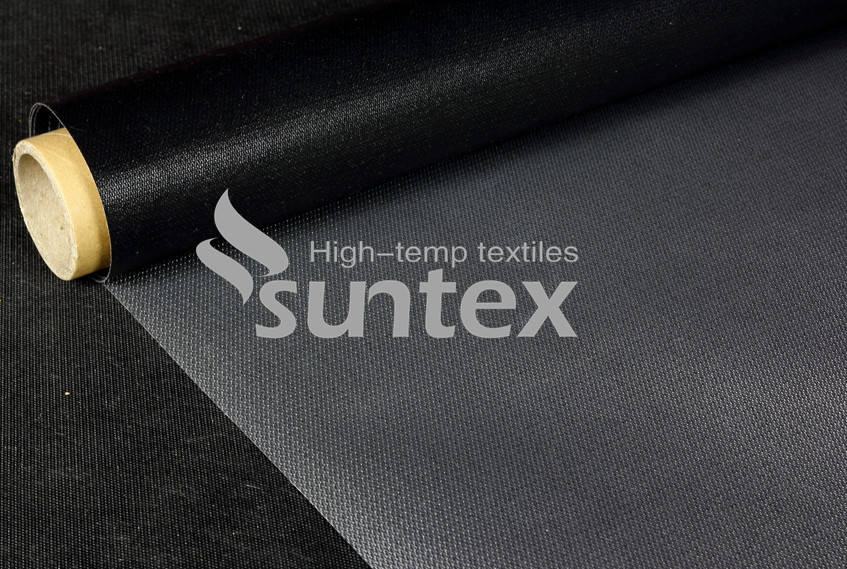

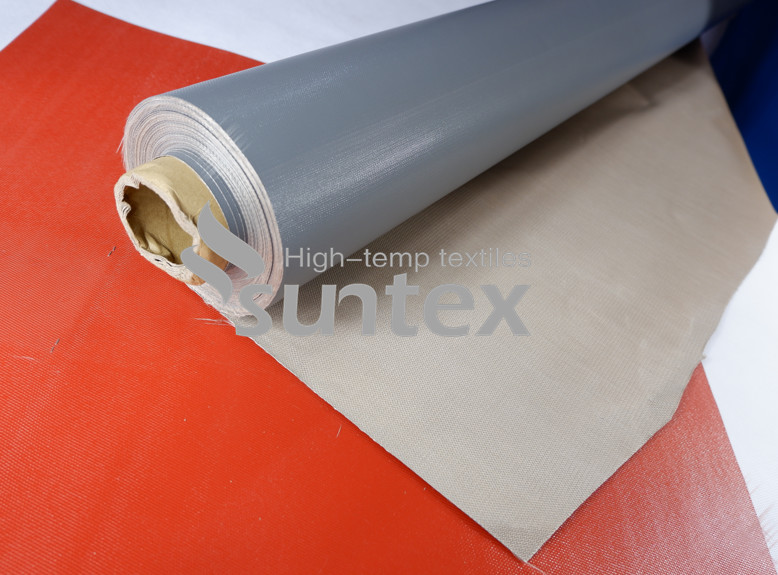

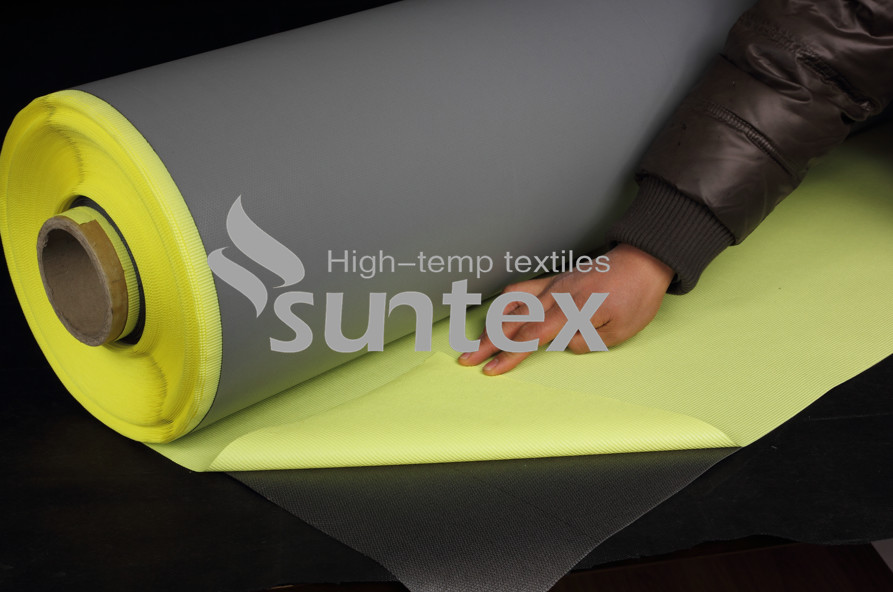

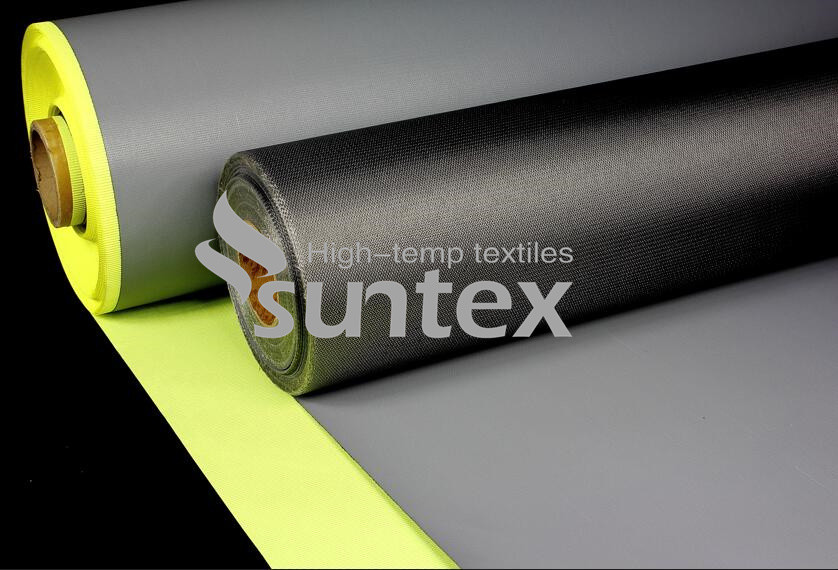

PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation

  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
  • PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation
Place of Origin Jiangsu, China
Brand Name Suntex
Model Number GF430P-PE135-8001
Minimum Order Quantity 500 Square Meter/Square Meters
Price US$6.03 - US$6.40 / Square Meter
Packaging Details Cartons loaded on pallets or according to customers' requirements.
Delivery Time 5-20 days
Payment Terms L/C, D/P, T/T
Supply Ability 300000 Square Meter/Square Meters per Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weave Type Twill Woven,plain Woven Or Customized Alkali Content Alkali Free
Thickness 0.45mm Weight 580g/m2
Width 1000~2000mm Standing Temperature -70 To +330 Degree C
Color Black,green,grey And Customed Colors
Highlight

coated fiberglass fabric

,

ptfe coated fiberglass fabric

,

silicone coated fiberglass fabric
Leave a Message
Product Description

Heat Resistant High Temperature Resistance Non-stick Ptfe Coated Fiberglass Fabric





BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 136 1﹡0 ECG 37 1/0
Weft EC9 136 1﹡0 ECG 37 1/0
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96



COATED FABRIC Coating style No. PTFE135-8001
Coating PTFE coated on one side
Weight 580 ± 20 g/m2 17 ± 0.6 oz/yd2 ASTM D3776-96
Thickness 0.43± 0.02 mm 0.016 ± 0.0007 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Antistatic Yes(Static Dissipative)
Temp resistance

Glass fabric up to 5500C (10000F)

PTFE coating up to 3300C (6200F)



Applications:



-- welding blanket and curtains
-- fire doors/curtains/blankets
-- removable insulation cover
-- high temperature insulation
-- heat shield and containment
-- expansion joints

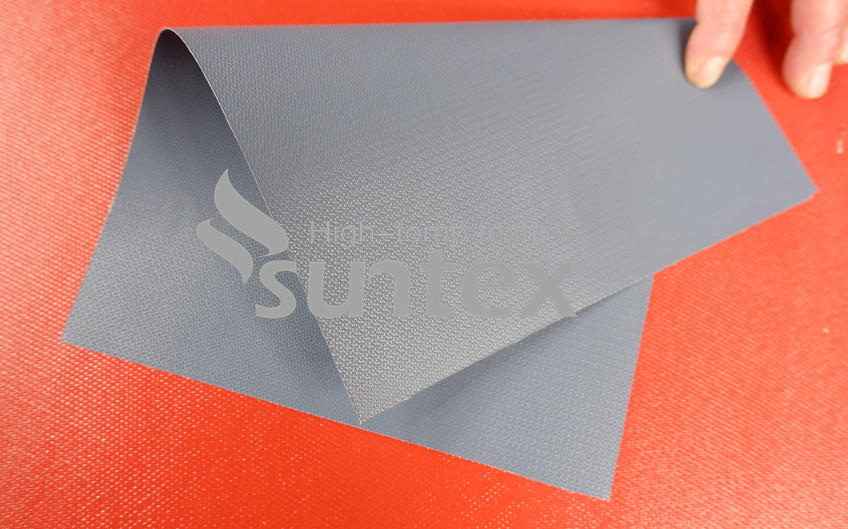

PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation 0

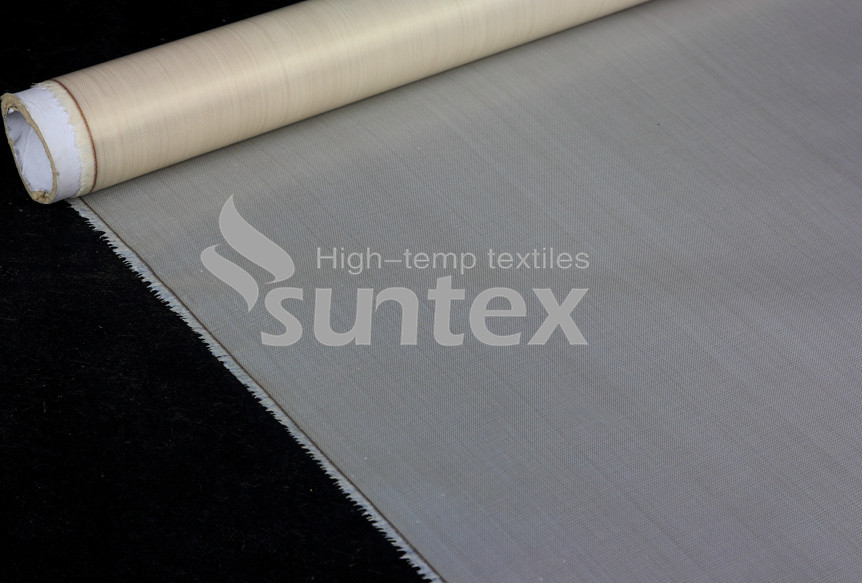

PTFE Coated Fiberglass Fabric for High Temperature Resistance For Thermal Insulation 1
