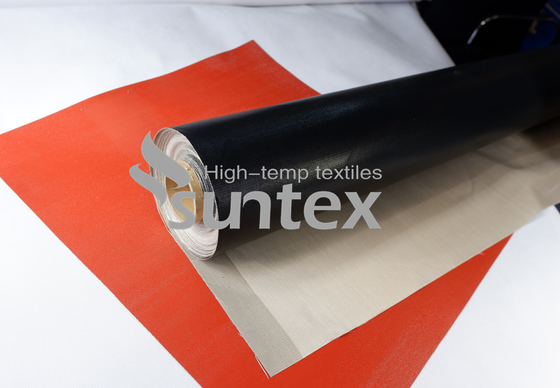

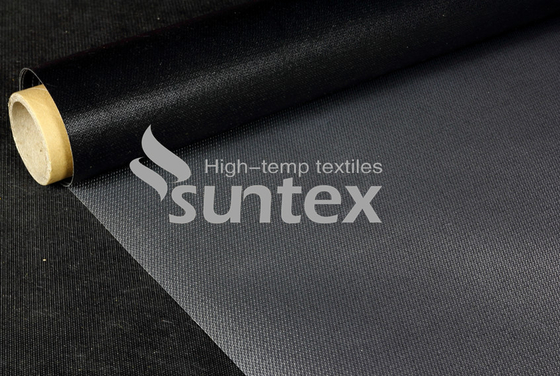

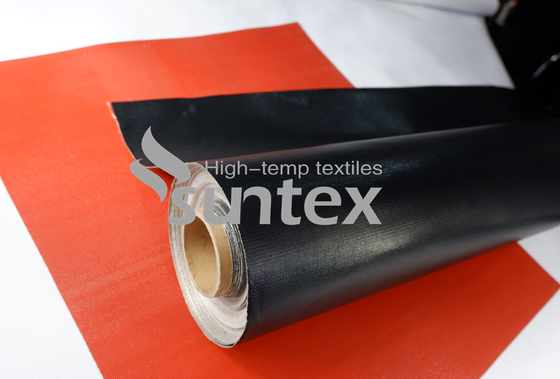

Anti Static High Quality PTFE Coated Fiberglass Fabric High Temperature Resistant Glass Fiber Fabric

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-PTFE135-8001
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

coated fiberglass fabric

,

ptfe coated fiberglass fabric

,

silicone coated fiberglass fabric

Weight: 580g/sqm
Width: 1000mm 1520mm 1550m 2000m
Thickness: 0.43mm
Color: Black
Weave: 4H Satin
Temperature Resistance /Working Temperature: 550℃ 1000℉
Coated: PTFE One Side
Fiberglass: E-glass
Feature: High Temperature, Chemical Resistance, The Best Release
Product Description

Abrasion Resistant PTFE Coated Fabric High Temperature Resistant Fabric High Temperature Resistance



Introduce:



PTFE coated fiberglass fabric is made of suspended PTFE emulsion (commonly known as plastic king) as raw material and impregnated with high performance fiberglass fabric. It is a high performance, multi-purpose composite material.



Product characteristics:


Heat resistance, anti-corrosion and anti-aging
Smooth surface, non adhesion, high insulation, antistatic
Low friction coefficient, high transmittance.
High stability, safety and environmental protection, fire prevention and Flame retardant.



Advantage



1. Good certified fire resistance.

2. Black color. Various color available.

3. Easy to be used, sewn and fabricated.

4. Good abrasion resistance property.

5. Good tensile strength.

6. Thickness, weight, weave, all can be customized base on your application.



Data



Weight 580 g/m2
Thickness 0.43 mm
Width 1000mm 1520mm 1550mm 2000mm
Coated PTFE
Color Black
Fire resistance Good
Working temperature Basic fabric 550 ℃, PTFE coating 330 ℃.
Coating temperature resistance PTFE coating 330 ℃
Basic fabric working temperature Basic fabric 550 ℃
Weave 4H Satin
Yarn warp EC9 136 1*0
Yarn weft EC9 136 1*0
Construction warp 18 ends/cm
Construction weft 12.6 ends/cm
Fiberglass E-Glass



Applications



Dust Lagging

Smoke curtain

Reusable thermal insulation cover

Thermal insulation pad



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
