Fireproof Insulation Vermiculite Coated Silica Fabric 400-1200kg/M3

Place of Origin China
Brand Name SUNTEX
Model Number SL600-VE216-5021
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Nominal Weight 620 G/sq.m Nominal Width 0.914 Meter
Nominal Thickness 0.68 Mm Color Brown
Temperature Resistant 1100 ℃ Treatment Vermiculite On The 2 Side
Basic Fabric Silica/fiberglass Application Welding Protection / Thermal Insulation Jacket
High Light

Vermiculite Coated Silica Fabric

,

Fireproof Vermiculite Coated Silica Fabric

,

1200kg/M3 Coated Fabric

Leave a Message
Product Description

Vermiculite Coated Silica Fabric High Temperature Fiberglass Cloth Working Temperature 1100C



Introduce



With the ability to withstand continuous temperature of 900-degree Celsius and most significantly, the instantaneous temperature of 1400-degree Celsius, the silica cloth is highly heat resistant. It has been made to be suitable for rocket and missile manufacturing in the aerospace industries.



The yarn and filtration mesh pieces that are treated with the use of high resistance coating.

They are perfectly suitable for heat preservation materials as well as fire fighting equipments such as fireproof garments. They are excellent in dust collection and filtration equipments.



Data



BASE FABRIC Base fabric style No. SL600
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin
Yarn
Warp EC9 136 1*2 tex ECG 37 1/2
Weft EC9 136 1*2 tex ECG 37 1/2
Construction
Warp 19 ± 1 ends/cm 48 ± 2 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 36 ± 2 picks/inch ASTM D 3775-96
Weight 600 ± 30 g/m2 17.6 ± 0.8 oz/yd2 ASTM D3776-96
Thickness 0.65 ± 0.08 mm 0.025 ± 0.003 inch ASTM D1777-96






COATED FABRIC Coating style No. VE216-5021
Coating Vermiculite impregnated on both sides
Weight 620 ± 30 g/m2 18.24 ± 0.8 oz/yd2 ASTM D3776-96
Thickness 0.68 ± 0.06 mm 0.027 ±0.002 inch ASTM D1777-96
Color Brown
Temp resistance

The maximum working temperature at 1200 0C

The peak Temp.(melt point) 1500 0C



Advantage



  • Highly heat resistant
  • 90% silicone dioxide
  • Excellent output
  • Incredibly durable



Applications



The cloths are found in a comprehensive range of models. They are designed in keeping with individual specifications as well. Being the foremost supplier & exporter, we ensure our manufactured products exemplify the true standard.



They are used in many applications like, welding/cutting protection, molten metal splash protection, heat and flame shielding and more.

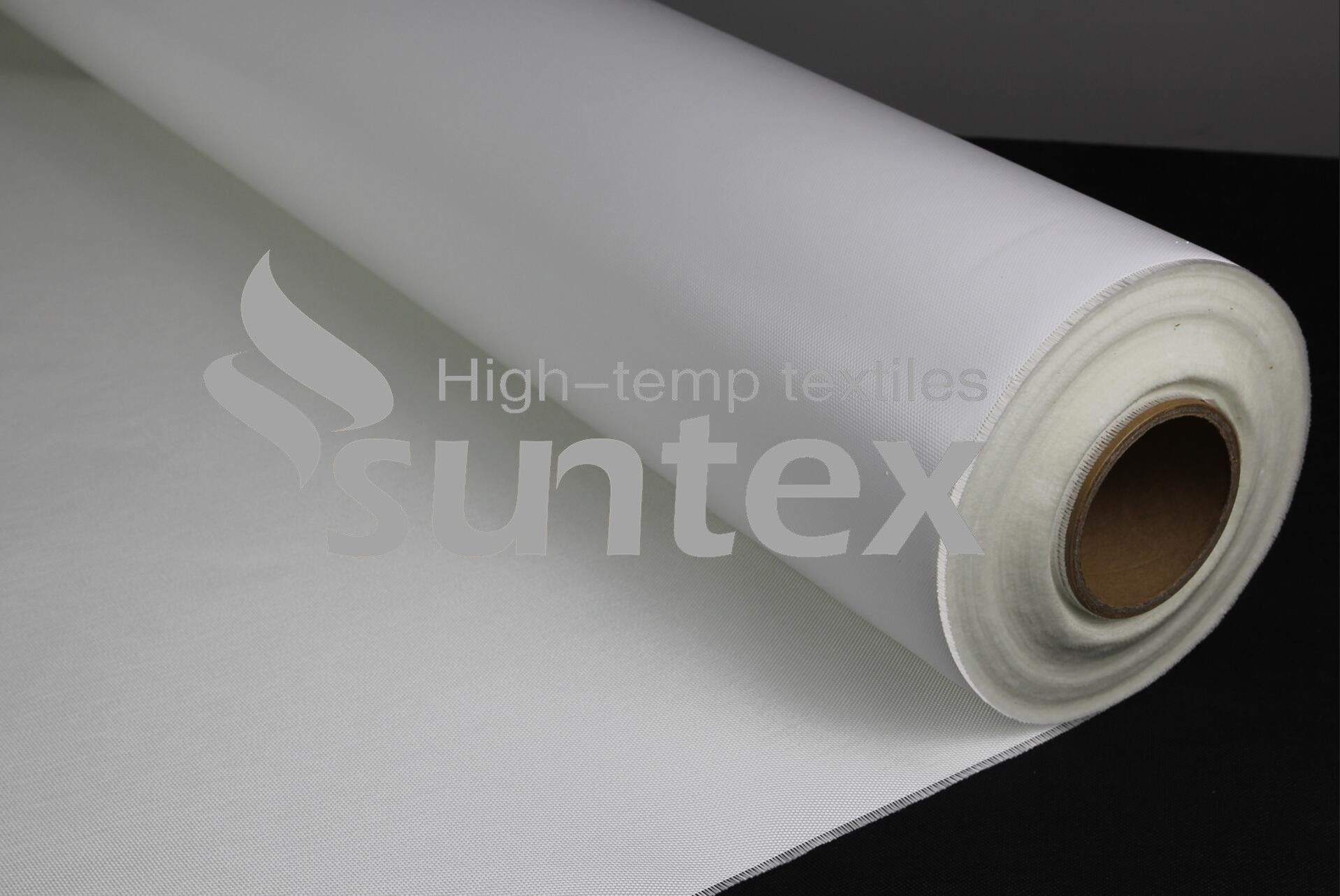

Fireproof Insulation Vermiculite Coated Silica Fabric 400-1200kg/M3 0



Fireproof Insulation Vermiculite Coated Silica Fabric 400-1200kg/M3 1

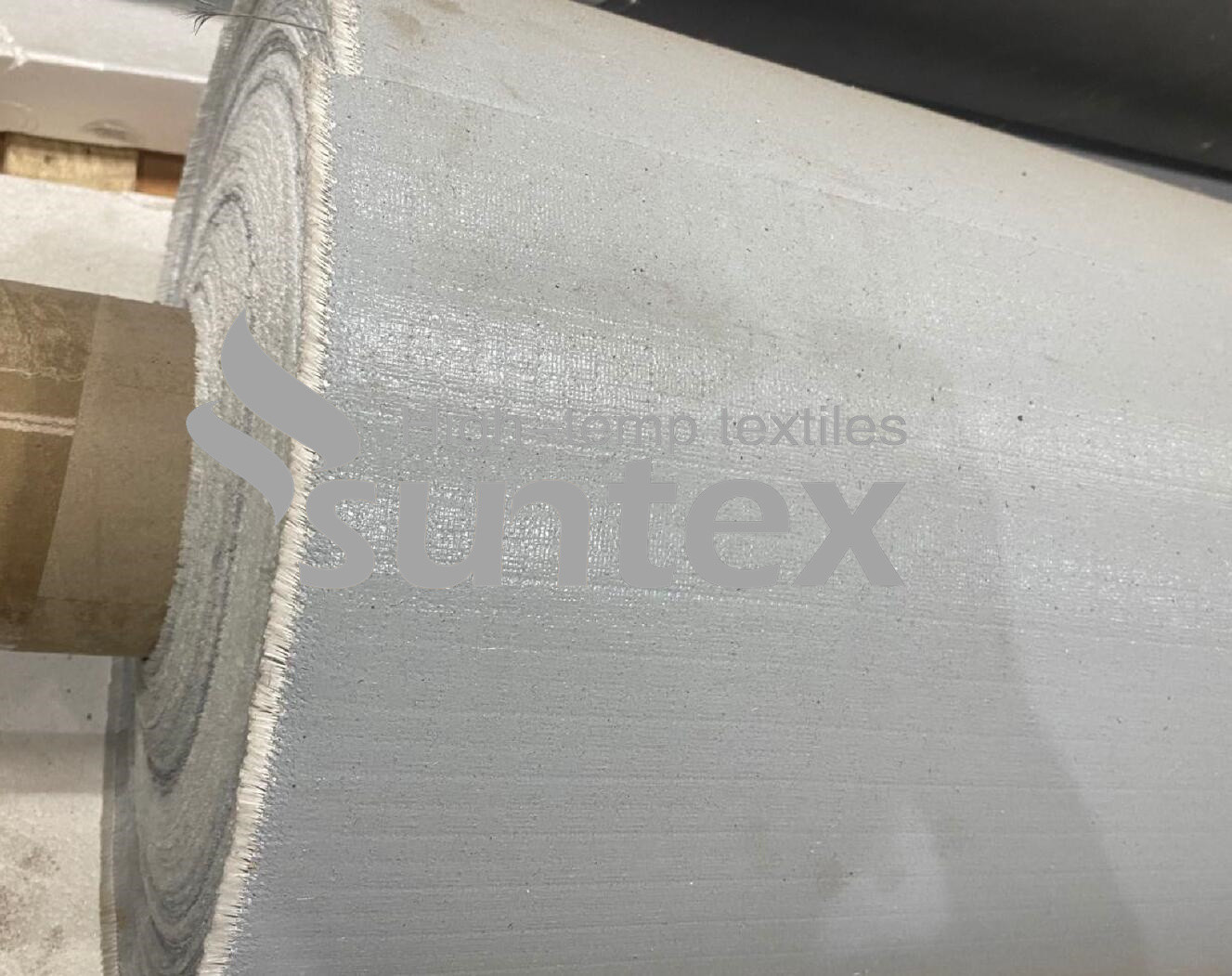

Fireproof Insulation Vermiculite Coated Silica Fabric 400-1200kg/M3 2
