Fireproof Silicone Coated Fiberglass Cloth For Thermal Insulation Mattress

Place of Origin:China
Brand Name:SUNTEX
Model Number:TGF1200S-CS213-5030
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

Thermal Insulation Mattress Fiberglass Cloth

,

Fireproof Silicone Fiberglass Cloth

,

Thermal Insulation Pad Fiberglass Cloth

Weight: 1250 G/sqm
Thickness: 1.4 Mm
Color: Grey
Yarn Tape: E-glass
Weave Tape: Plain Weave
Width: 1m/1.5m/1.8m
Coating: Calcium Silicate
Standing Temperature: From -100℃ To 800℃
Technology: Stainless Steel Wire
Product Description

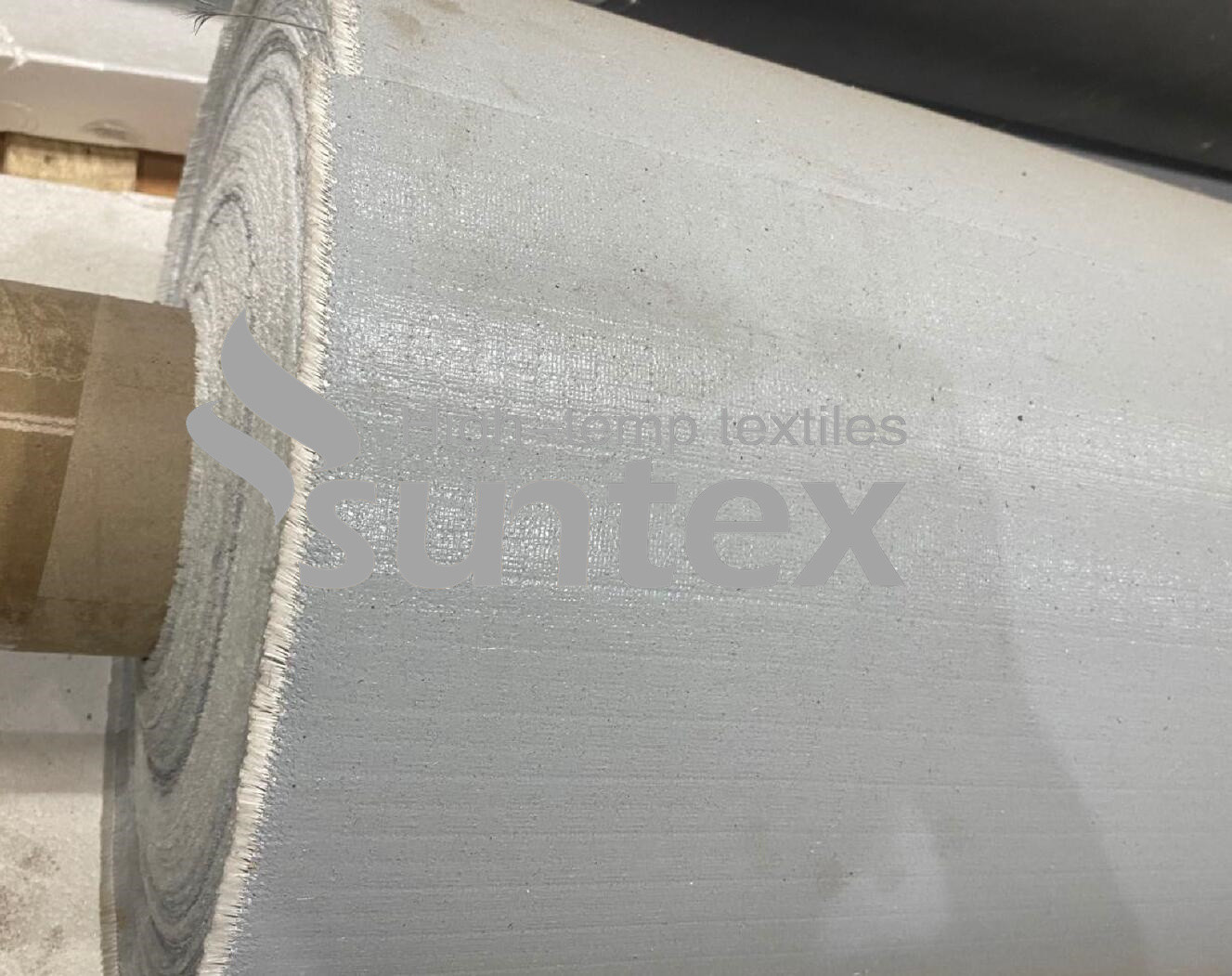

Fireproof Silicone Coated Fiberglass Cloth For Thermal Insulation Mattress

800C Degree Stainless Steel Wire Fiberglass Fabric Roll For Thermal Insulation Mattress



TGF1200S-CS210-5030 is a stainless steel wire inserted woven texturized fiberglass fabric coated with a formulated inorganic solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems.

TGF1200S-CS210-5030 withstands temperature extremes of up to 800 0C, no significant deterioration in flexibility or strength, without smoke/fumes release when catches fire.



Main applications

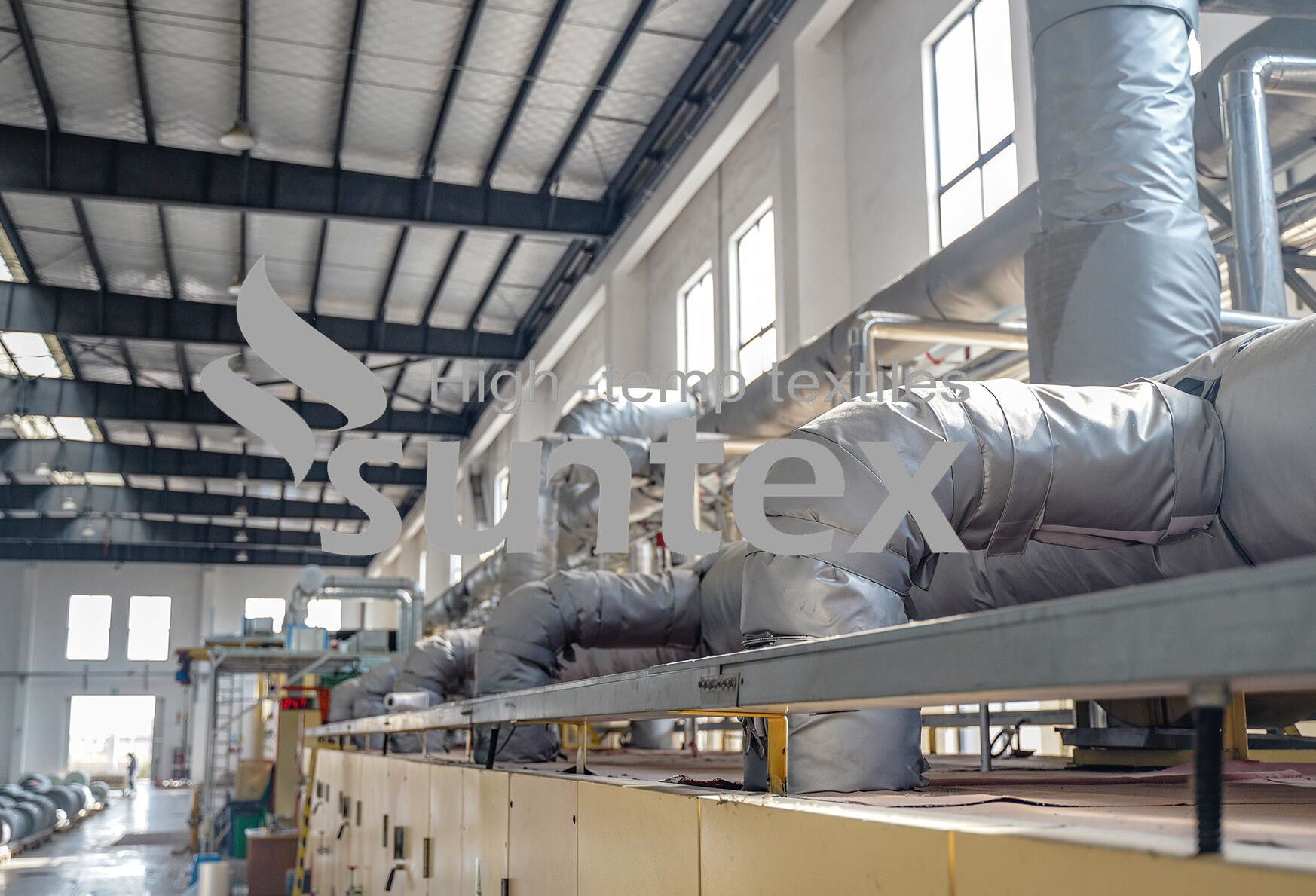

- Thermal insulation jacket, mattress and pad

- Expansion joints and compensators

- Conveying belt



BASE FABRIC Base fabric style No. TGF1200S
  (Metric) (English) Test methods
Weave Panama Panama
Yarn
Warp

ET9 1250 tex

S.S 316# wire

ETG 4.0

S.S 316# wire


Weft

ET9 770 tex

S.S 316# wire

ETG 6.5

S.S 316# wire


Construction
Warp 6 ± 0.6 ends /cm 15 ± 2 ends/inch ASTM D 3775-96
Weft 5.5 ± 0.5 picks /cm 14 ± 2 picks/inch ASTM D 3775-96
Weight 1200 ± 50 g/m2 35 ± 1.47 oz/yd2 ASTM D3776-96
Thickness 1.5 ± 0.07 mm 0.059 ± 0.003 inch ASTM D1777-96

COATED FABRIC Coating style No. CS210-5030
Coating Formulated inorganic solutions coated on both sides
Weight 1220 ± 50 g/m2 36 ± 1.47 oz/yd2 ASTM D3776-96
Thickness 1.5 ± 0.07 mm 0.055 ± 0.003 inch ASTM D1777-96
Color Brown (Tan)
Temp resistance 8000C 13000F

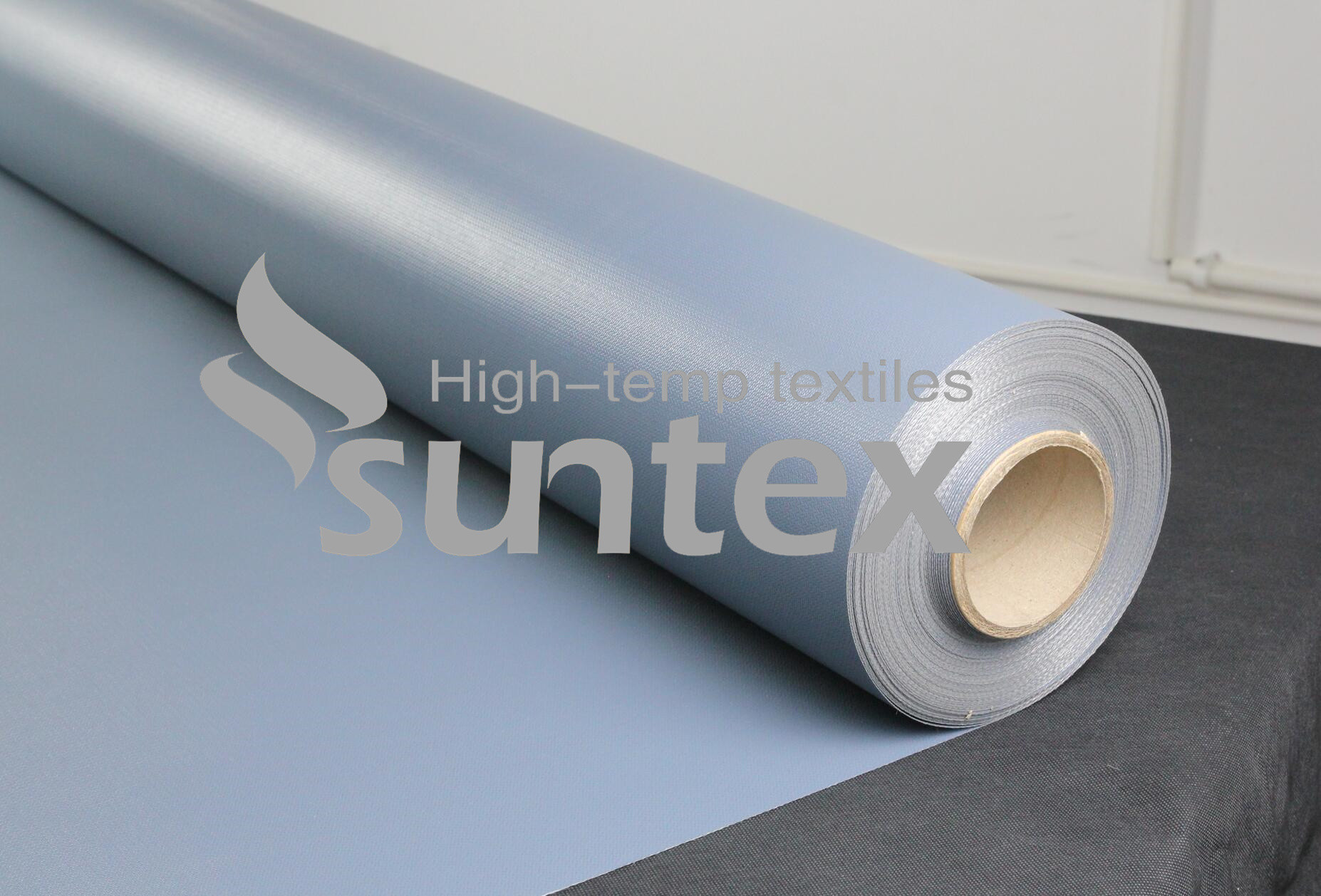

Fireproof Silicone Coated Fiberglass Cloth For Thermal Insulation Mattress

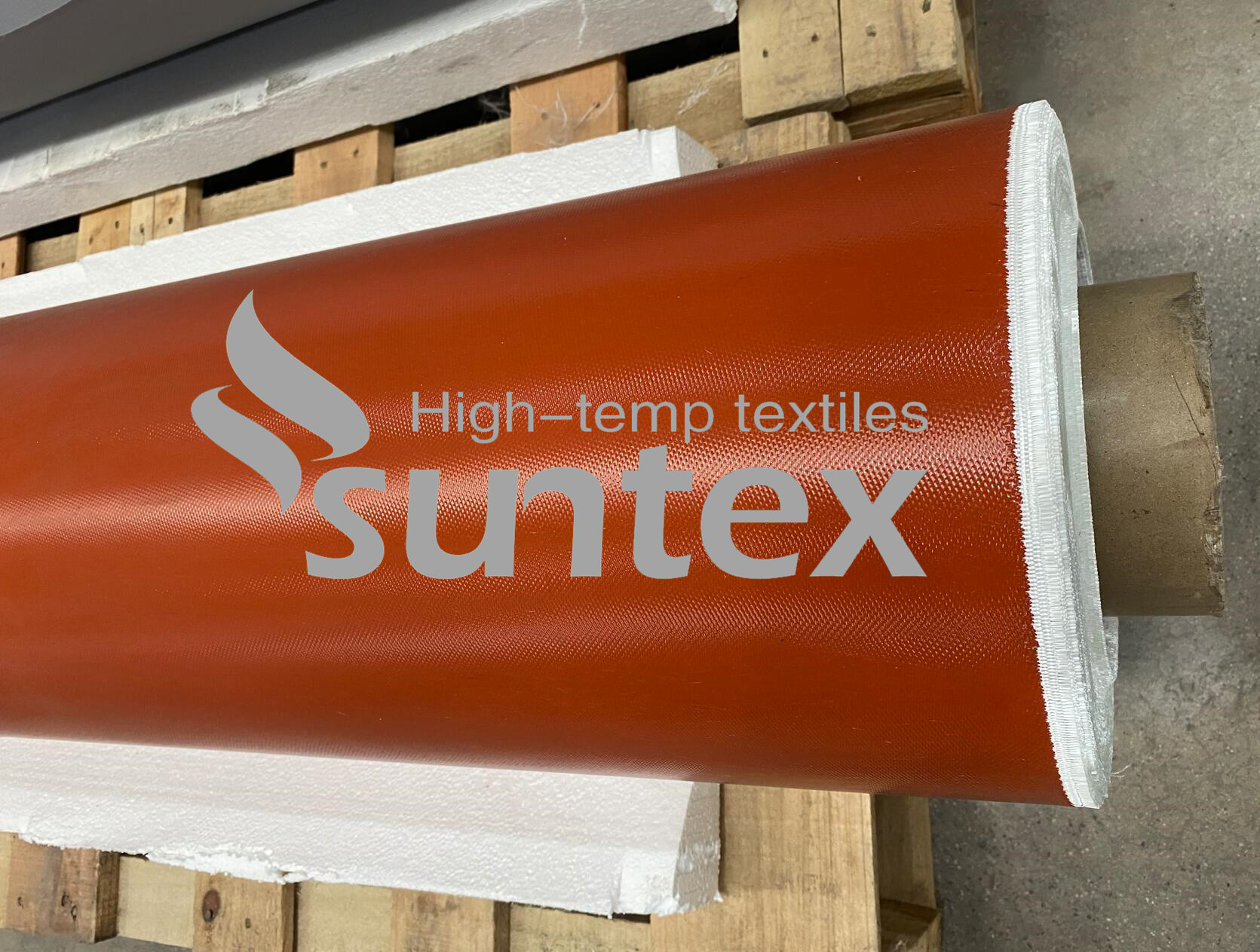

Fireproof Silicone Coated Fiberglass Cloth For Thermal Insulation Mattress

Related Style

-_03-_04-_01-_02-_05-_14-_16-_13

Fireproof Silicone Coated Fiberglass Cloth For Thermal Insulation Mattress

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
