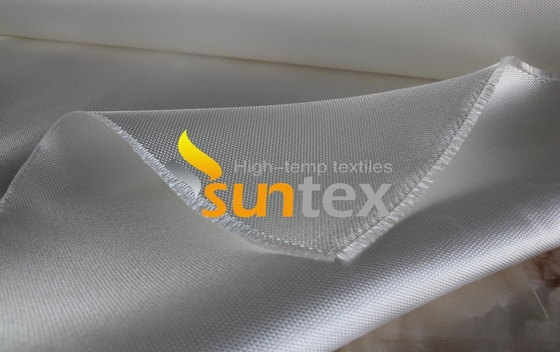

China Manufacturer Good Quality 0.7mm Fireproof High Silica Fiberglass Fabric
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xUnit Weight | 36 Oz/sqy | Standard Width | 1yard |
---|---|---|---|
Standard Thickness | 0.053inch | Colour | Brown |
Pattern | Crowfoot | Temperature Resistance /Working Temperature | 750℃ 1300℉ |
Fiberglass | Silica Wash | ||
High Light | Fireproof High Silica Fiberglass Fabric,0.7mm High Silica Fiberglass Fabric,Fireproof Silica Fiberglass Fabric |
Silica Fire Blanket High Temperature Fiberglass Cloth 36 OZ Flame Resistant Barrier Silica Cloth
Introduce
GF1400-HA266-5034 is a slica wash fabric treated by hydrochloric acid. 750℃ high temperature resistance is higher than most kinks of fiberglass fabric, although lower than SL600. But it don't has significant deterioration in strength tensile. It's a econmic replacement of SL600. It was designed for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other type applications for continuous high temperature needs.
Advantage
1. Well fire resistance, as high as 750 degree.
2. Strong construction than silica, have good tensile strength, easy to be applied.
3. Well abrasion resistance property.
Data
Standard weight | 36 oz/y2 |
Standard Thickness | 0.053 inch |
Standard width | 920mm |
Coating | None |
Colour | Yellow |
Fire resistance | Well |
Temperature resistance | 1380℉ |
Pattern | Crowfoot |
Construction warp | 48±3 ends/inch |
Construction weft | 30±3 ends/inch |
Fiberglass | Silica wash |
Applications
Good performance under high temperature environment, can be used as fire curtain, welding blanket, removable heat insulation kit or mat.
Style No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/yd2 | mm | inch | |||
SL600 | 600 | 18 | 0.65 | 0.025 | Yellow | None |
SL1200 | 1200 | 36 | 1.25 | 0.037 | Yellow | None |
GF880-HA266-5017 | 600 | 18 | 0.6 | 0.024 | Yellow | None |
GF1400-HA266-5034 | 1200 | 36 | 1.3 | 0.05 | Yellow | None |
Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
