E-Glass Fiber High Silica Fibre Glass Fabric For Insulation Cover
Place of Origin | Jiangsu, China |
---|---|
Brand Name | Suntex |
Model Number | fiberglass removable insulation jacket |
Minimum Order Quantity | Negotiable |
Price | Negotiable |
Packaging Details | Packed in cartons loaded on pallets or according to customers' requirements. |
Delivery Time | 5-20 days |
Payment Terms | L/C, D/P, T/T |
Supply Ability | 200000 Pieces/ month |

Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum-foil,glassfiber And High Temperature Resistance Cloth | Yarn Type | E-Glass |
---|---|---|---|
Alkali Content | Alkali Free | Weave Type | Twill |
Weight | From 200 To 2000 Gram/sq.mtr | Thickness | 25-100mm |
Width | 1m 1.2m 1.5m 1.8m 2m Or Customized | Colors | Red,grey,black,green,and Customed Colors |
Temperature Resistance | -70C~+1000 C | Size | Be Customized According To Different Shapes And Sizes Of The Equipment |
Fabrics For | Removable Thermal Insulation Pads,jackets | Good Features | Excellent Insulation, Water And Oil Proofing, Easy To Clean |
Application 1 | Heat Preservation And Insulation On Pipes, Elbow, Flange, Tees | Application 2 | Chemical Reactors, Turbine Suits, Heat Exchanges, Exhaust Pipe |
Highlight | High Silica Fiberglass Fabric,E-Glass Silica Fiber Fabric,Insulation Cover Silicone Fiberglass Fabric |

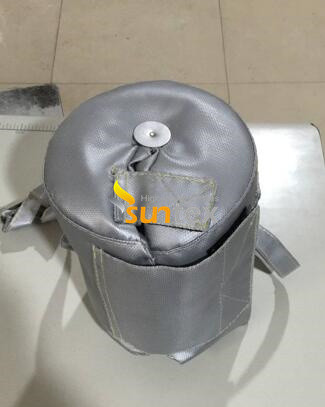

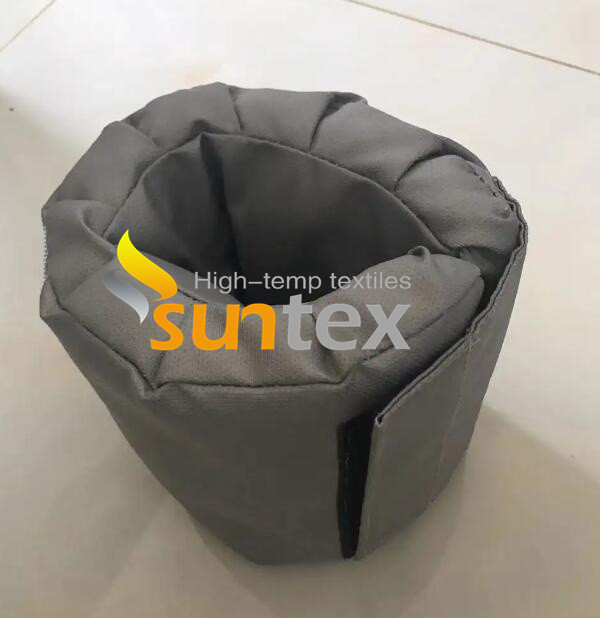

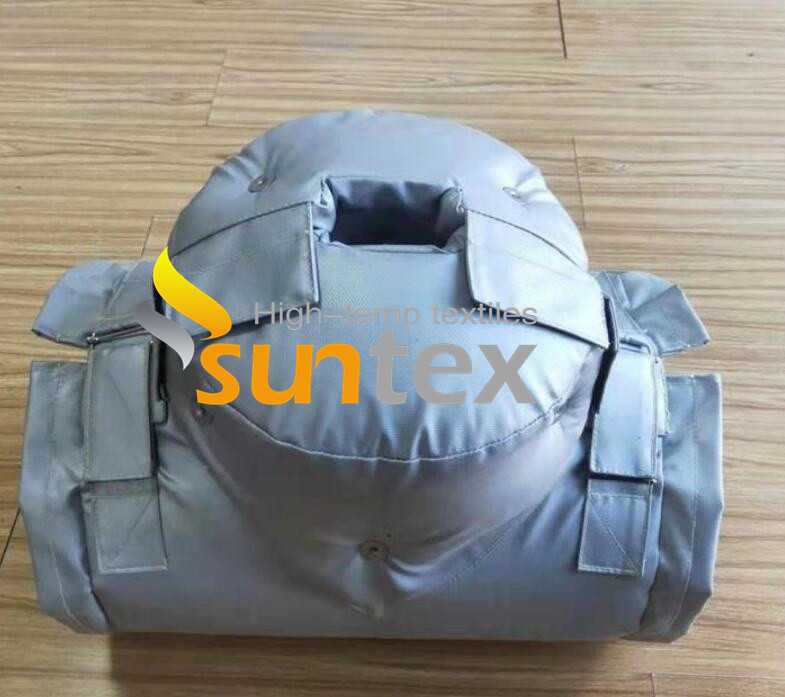

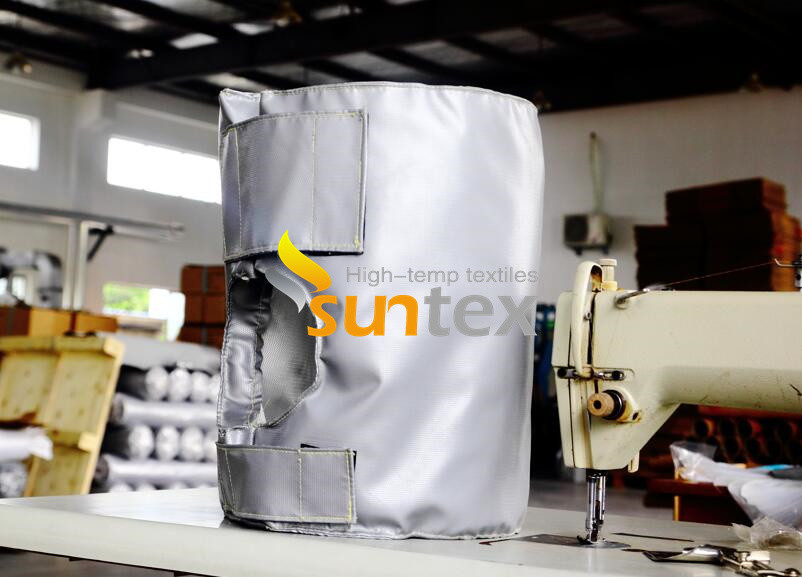

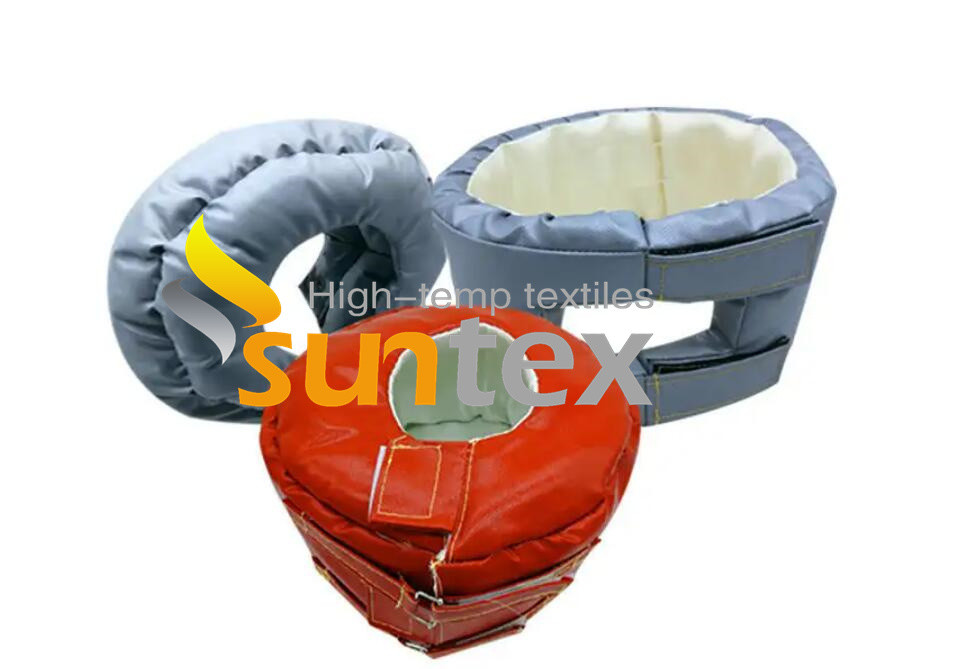

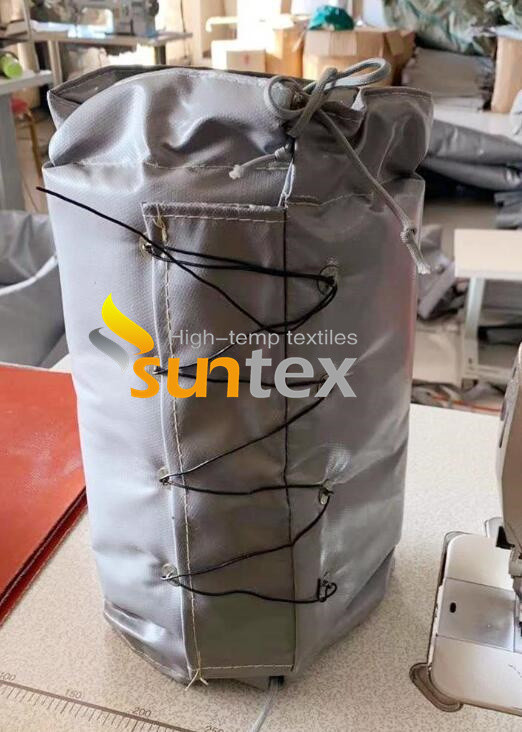

Customized Reusable Fiberglass Thermal Cover Removable Insulation Jacket
Suntex removable insulation jackets are made of glass fiber and high-temperature resistant aluminum foil or silicone cloth. The Jacket comprises three layers-inner, insulation, and protective layers. The working temperature can be up to 1000 C.It has many advantages such as excellent insulation, water, and oil proofing,multi-lay protection,anti-corrosion, easy to clean, easy to bend,pollution-free. It Can be customized according to different shapes and sizes of the equipment, it is all up to customers’ requirements.
Application:
--removable thermal insulation cover, insulation blanket, insulation cover
--injection molding machine, extrusion machines, molds& dies

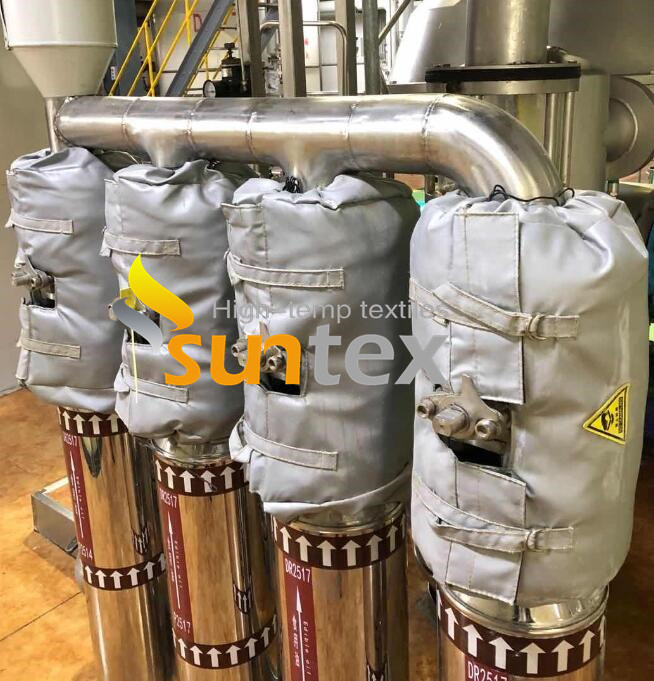

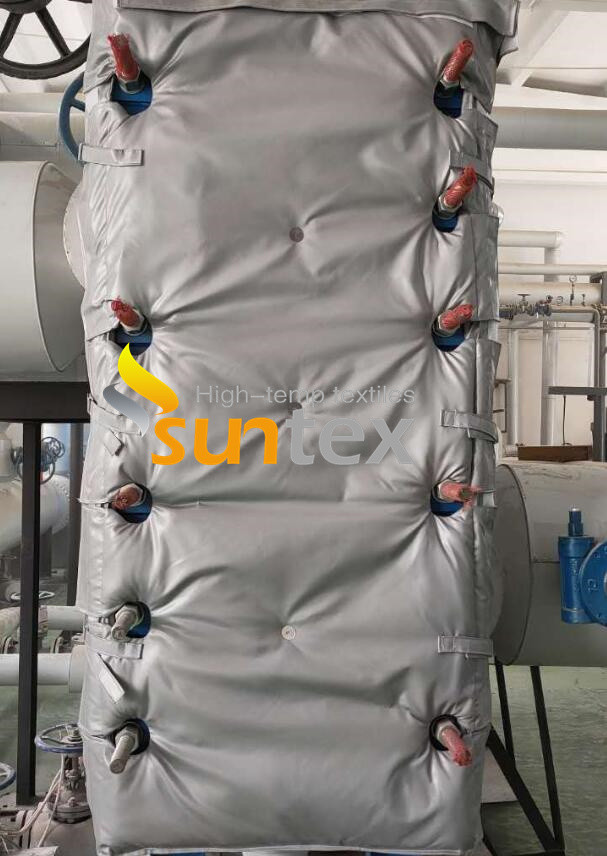

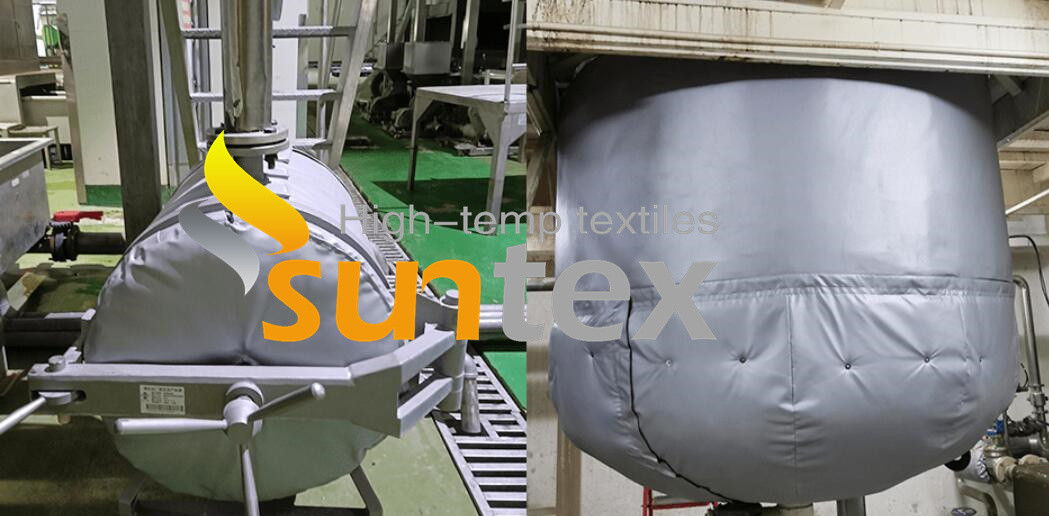

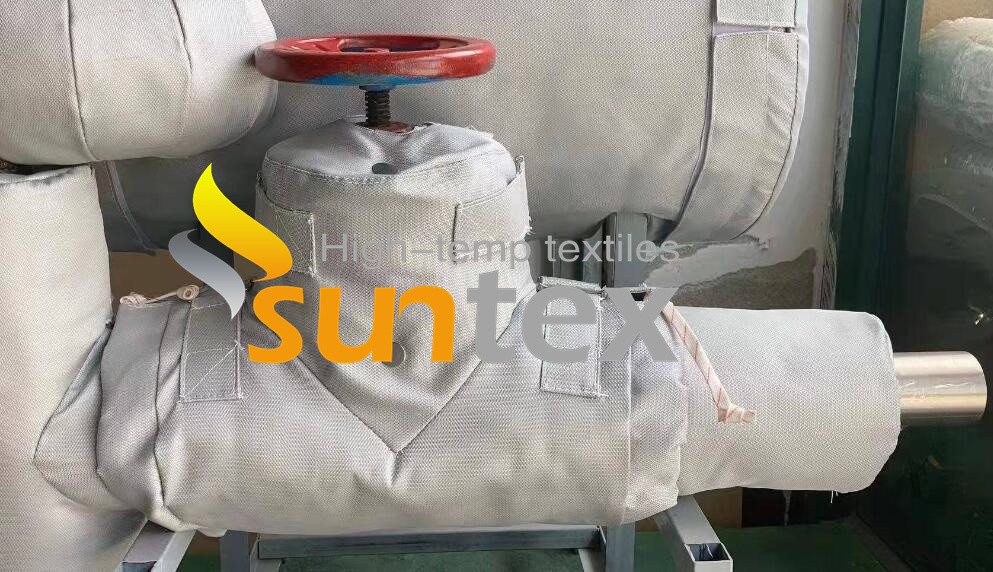

--heat preservation and insulation on pipes. elbow, flange, tees, chemical reactors
--turbine suits of thermal power and nuclear powers
--gas turbine suits, the heat exchanges and the exhaust pipe of engines
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
(gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
