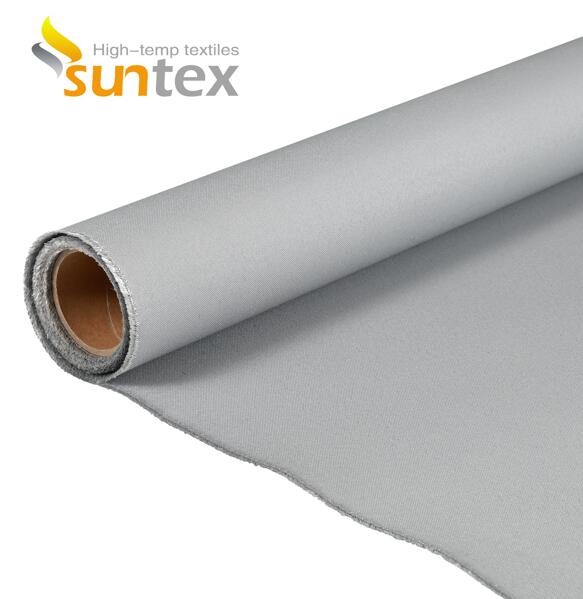

Acids Chemical Resistant PU Coated Fiberglass Fabric Weatherproof Water Repellent
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 460g/sqm | Width | 1000mm 1520mm 1550m 2000m |
|---|---|---|---|
| Thickness | 0.41mm | Color | Silver Grey |
| Weave | 4H Satin | Temperature Resistance /Working Temperature | 550℃ 1000℉ |
| Coated | PU Two Sides | Fiberglass | E-glass |
| Highlight | Weatherproof PU Coated Fiberglass Fabric,Water Repellent PU Fiberglass Fabric,Acid Resistant PU Fiberglass Fabric |
||
Product Description

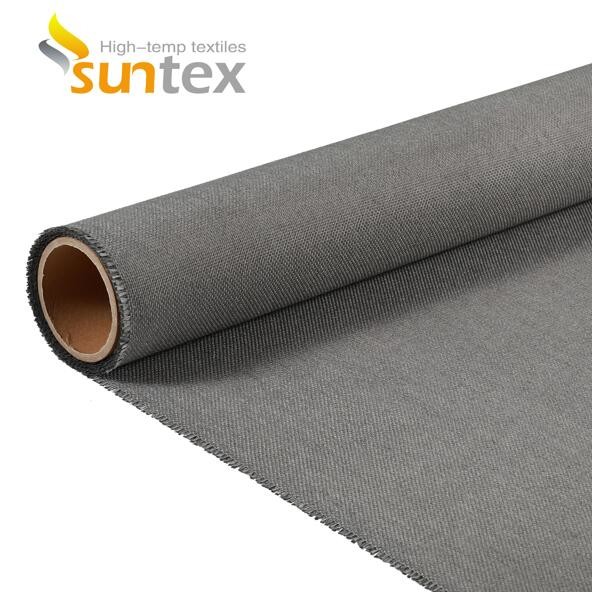

Weatherproof Water Repellent Good Chemical Resistance To Acids PU Coated Fiberglass Fabric
Introduce
GF430P-PU213-2004 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU213-2004 is the fabric applied for textile air distribution system. The other applications for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.
Advantage
1. M0 certified fire resistance.
2. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
| Weight | 460 g/m2 |
| Thickness | 0.41 mm |
| Width | 1000mm 1520mm 1550mm 2000mm |
| Coated | PU |
| Color / colour of coating/surface | Silver Grey |
| Fire resistance | M0 |
| Working temperature / Temperature resistance | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave/Pattern | 4H Satin |
| Yarn warp | EC9 136 1/0 |
| Yarn weft | EC9 136 1/0 |
| Construction warp | 18±1 ends/cm |
| Construction weft | 12.6±1 ends/cm |
| Fiberglass | E-Glass |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation cover
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
