Fiberglass Manufacture Silica Coated Cloth Fabric high temperature fiberglass cloth

Place of Origin Jiangsu, China
Brand Name Suntex
Model Number SL600
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Fabric rolls packed in cartons loaded on pallets or according to customers' requirements.
Delivery Time 5-20 days
Payment Terms L/C, D/P, T/T
Supply Ability 300000m/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alkali Content Alkali Free Yarn Type E-Glass
Thickness 0.65mm Weight 600g/m2
Width From 1m To 2m Or Customized Weave Type Twill Woven Or Plain Woven Or Customized
Coating Two Sides Vermiculite Coated Color Brown/yellow
Base Material Silica Fiberglass Cloth Standing Temperature Up To 1000 Degree C
Good Features High Temperature Resistance, Good Flame Retardant Ability Properties Weatherproof, Water Repellent, Good Chemical Resistance
Application 1 Welding And Molten Metal Splash Protection, Heat And Flame Shielding Application 2 Chemical Plants, Oil Refineries, Ports, And Industry Fields
Highlight

high temperature fiberglass cloth

,

coated fiberglass fabric

,

silicone coated fiberglass fabric

Leave a Message
Product Description

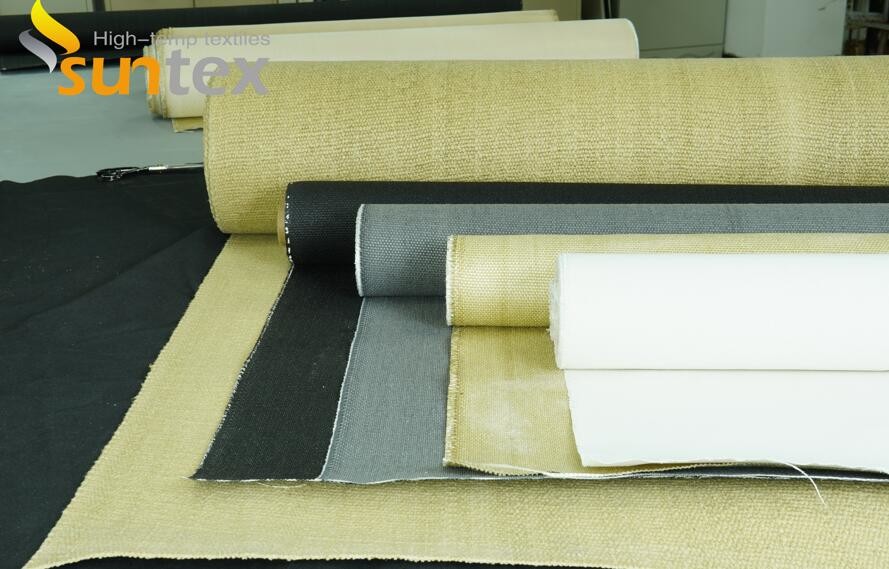

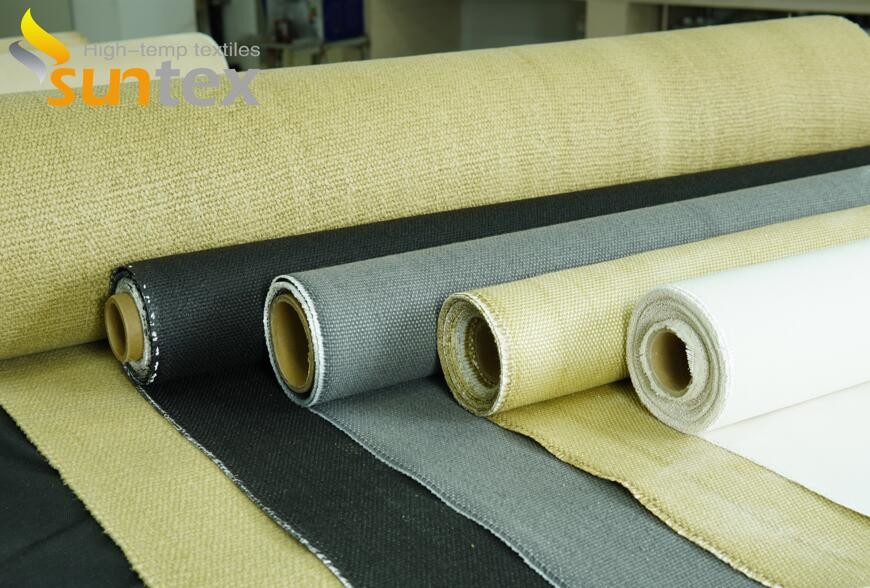

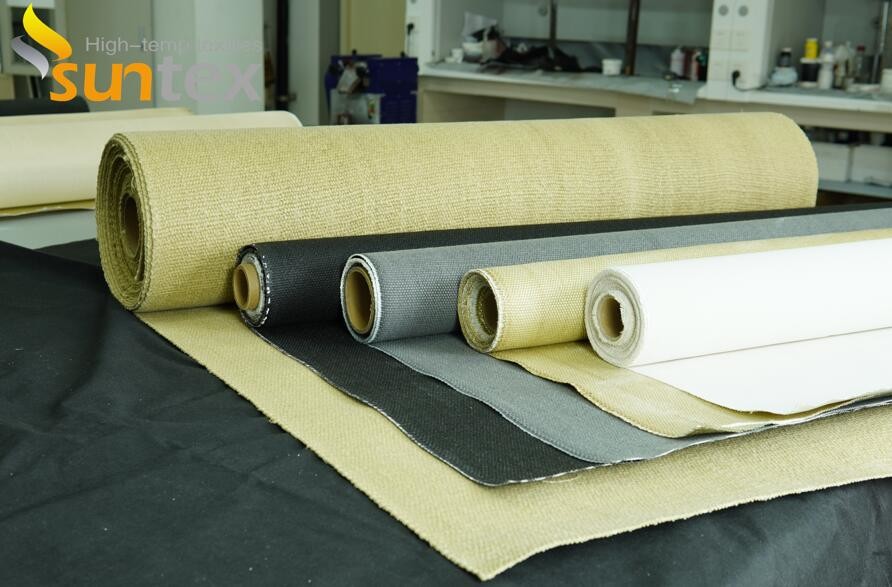

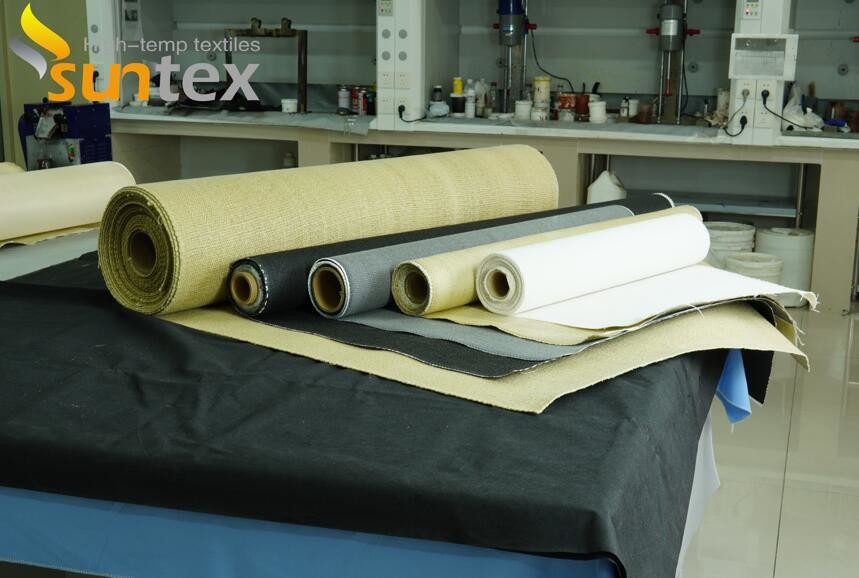

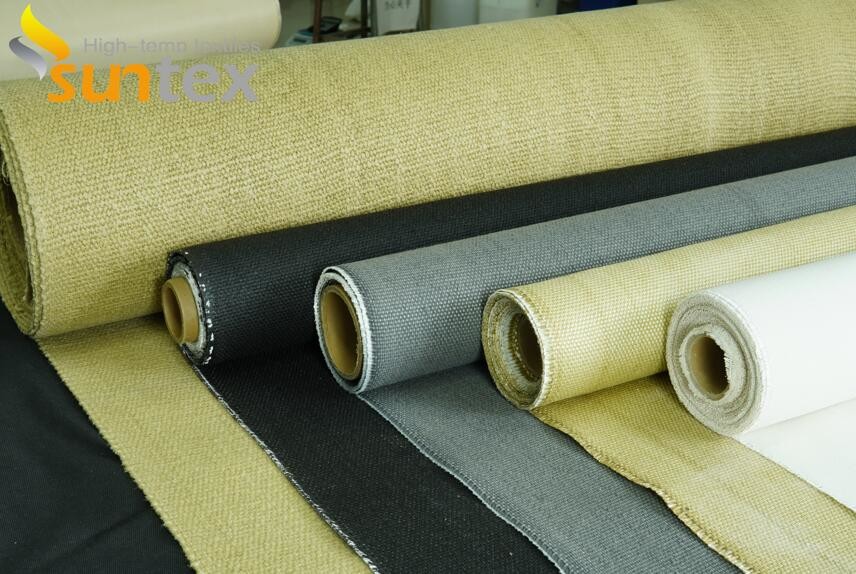

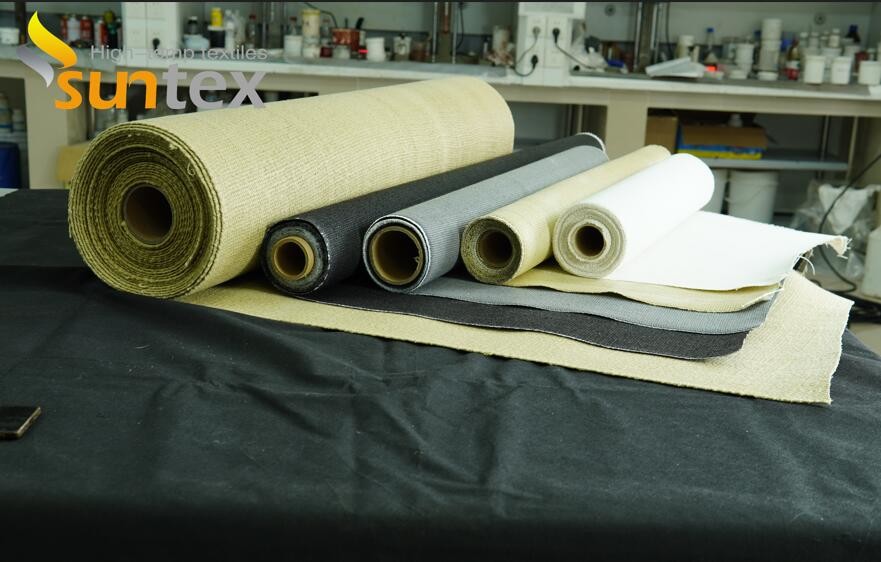

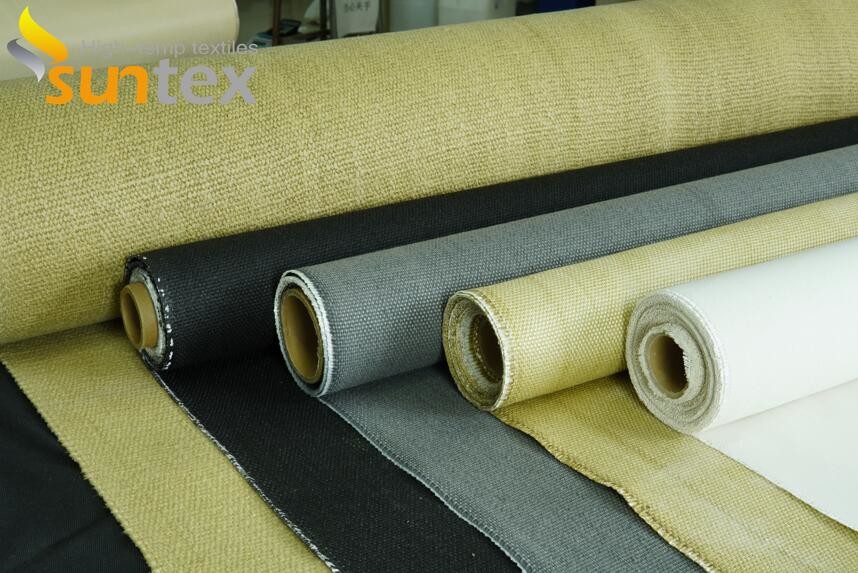

High Temperature Silica Fiberglass Cloth Fire Barrier Fire Blanket Material



Product Description



    SL 600 is a medium weight of 96% content silica fabric. SL 600 is excellent for very high temperature resistance and fire resistance.

    The application is for insulation covers, padding, lagging, welding blanket, fire curtain, and other heavy duty fire control system.

    SL 600 is suitable for coating with different elastomers and polymers.



Good features:

--Silicone dioxide content >96%

--Extremely high-temperature resistance up to 1000 C

--Good anti-abrasion, good chemical resistance, easy to be cut, sewn and fabricated

--Excellent chemical resistance

--Soft and pliable

--Excellent anti-abrasion property

-- Asbestos-free, halogen-free



BASE FABRIC Base fabric style No. SL600
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin
Yarn
Warp EC9 136 1*2 tex ECG 37 1/2
Weft EC9 136 1*2 tex ECG 37 1/2
Construction
Warp 19 ± 1 ends/cm 48 ± 2 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 36 ± 2 picks/inch ASTM D 3775-96
Weight 600 ± 30 g/m2 17.6 ± 0.8 oz/yd2 ASTM D3776-96
Thickness 0.65 ± 0.08 mm 0.025 ± 0.003 inch ASTM D1777-96

COATED FABRIC Coating style No. VE216-5021
Coating Vermiculite impregnated on both sides
Weight 620 ± 30 g/m2 18.24 ± 0.8 oz/yd2 ASTM D3776-96
Thickness 0.68 ± 0.06 mm 0.027 ±0.002 inch ASTM D1777-96
Color Brown
Temp resistance

The maximum working temperature at 1200 0C

The peak Temp.(melt point) 1500 0C



TGF2050-VE236-5009
