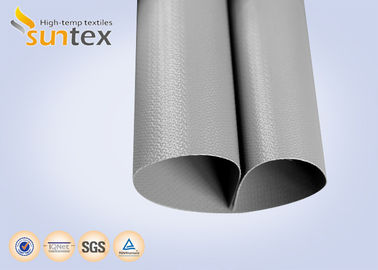

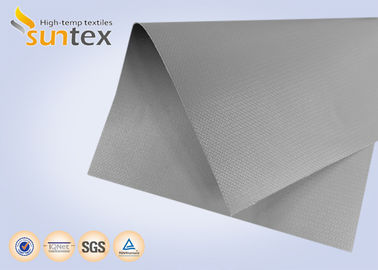

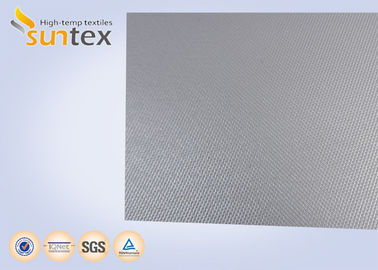

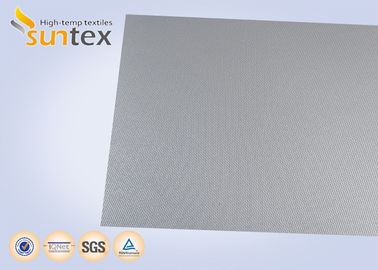

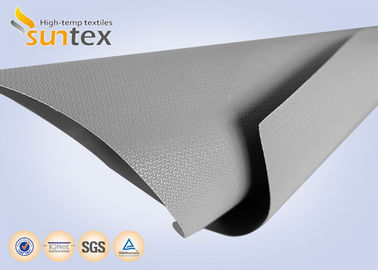

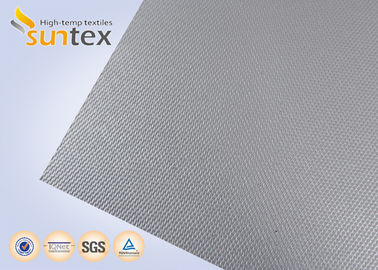

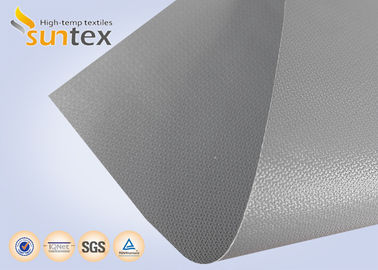

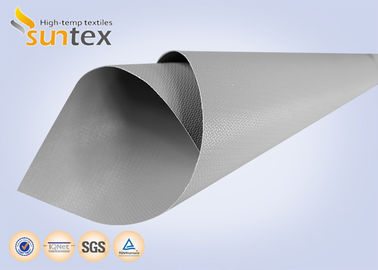

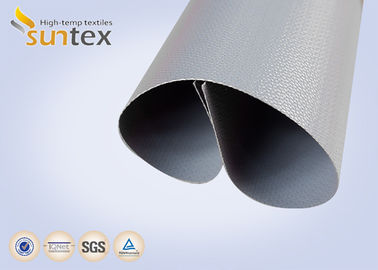

High Temperature Resistant Anti-Static PTFE Coated Fiberglass Fabric for fire prevention and thermal isolation

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-PTFE135-8001
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

coated fiberglass fabric

,

ptfe coated fiberglass fabric

,

Anti-Static PTFE Coated Fiberglass Fabric

Unit Weight: 17 Oz/sqy
Standard Width: 1520mm 1550m
Standard Thickness: 0.016 Inch
Colour: Black
Pattern: Crowfoot
Coating Temperature Resistance: 330℃ 620℉
Basic Fabric Temperature Resistance: 550℃ 1000℉
Coating: PTFE 1 Side
Product Description

Awesome Tensile Strength PTFE Coated Fiberglass Fabric For High Temperature Insulation



Introduce



GF430P-PTFE135-8001 is single side PTFE coated fiberglass, middle level thickness and weight. it is black color, have antistatic property, can be used in different environment like chemical corruption or volatile matter environment. PTFE has good resistance to abrasion.



Advantage



1. Fire resistance to 300℃.

2. Black color. End users can choose the favority face.

3. Hard surface, easy to be applied, sewn and fabricated.

4. Well abrasion, chemical resistance property.

5. Well tensile strength.

6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.



Data



Standard weight 17oz/y2
Standard Thickness 0.016inch
Standard width 1520mm 1550mm
Coating PTFE
Colour Black
Fire resistance Well
Coating temperature resistance PTFE coating 620 ℉
Basic fabric working temperature Basic fabric 1000 ℉
Pattern Crowfoot
Yarn warp EC9 136 1*0
Yarn weft EC9 136 1*0
Construction warp 48 ± 3 ends/inch
Construction weft 32 ± 3 ends/inch
Fiberglass E-Glass



Applications



GF430P-PTFE135-8001 is usualy used as dust Lagging, fire curtain, removable heat insulation shell and heat insulation mattress.



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
