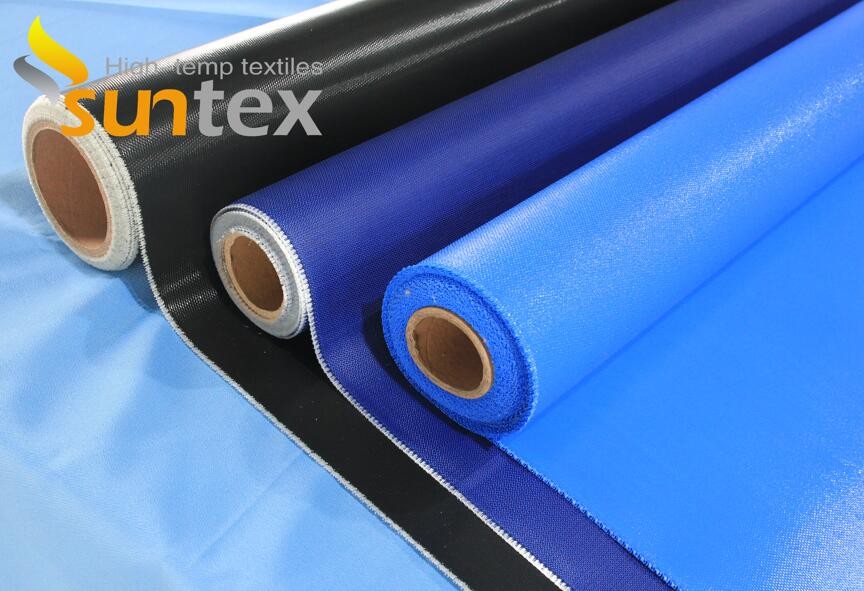

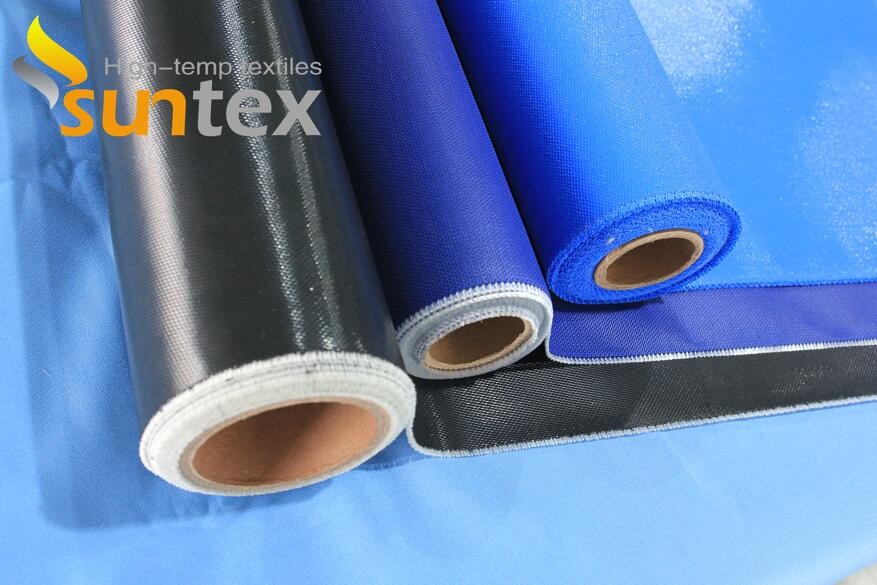

Fireproof PU Coated Fiberglass Fabric For Expansion Joint

Place of Origin China
Brand Name SUNTEX
Model Number F430P-PU21A-2006
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Weight 460g/sqm Width 1000mm 1520mm 1550m 2000m
Thickness 0.41mm Color Blue/Black
Weave 4H Satin Fiberglass Fabric Working Temperature 550℃ 1000℉
Coated PU Two Sides Fiberglass E-glass
High Light

PU Coated Fiberglass Fabric


Expansion Joint


coated fiberglass fabric

Leave a Message
Product Description

Fire Resistance PU Coated Fiberglass Fabric M0 0.41mm 460g Flexible Fabric Compensators


Production Description:


GF430P-PU21A-2006 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer.

GF430P-PU21A-2006 is the fabric applied for textile air distribution system. The other applications for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.


Fiberglass Fabric​ Advantages:


1. M0 certified fire resistance.

2. Great mechanical property.

3. Good abrasion resistance property.

4. Good tensile strength.

5. Thickness and colors can be customized base on your application.




Weight 460 g/m2
Thickness 0.41 mm
Width 1550mm
Coated PU
Color of coating Blue/Black
Fire resistance M0
Working temperature Basic fabric 550 ℃, PU coating 180 ℃.
Weave/Pattern 4H Satin
Yarn warp EC9 68 1*2
Yarn weft EC9 68 1*2
Construction warp 18±1 ends/cm
Construction weft 12.6±1 ends/cm
Fiberglass E-Glass


Fiberglass Fabric​ Applications


Smoke curtain

Fire blanket

Expansion joint

Reusable thermal insulation cover

Thermal insulation pad

Air duct


Related Products


Fiberglass Fabric Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides
