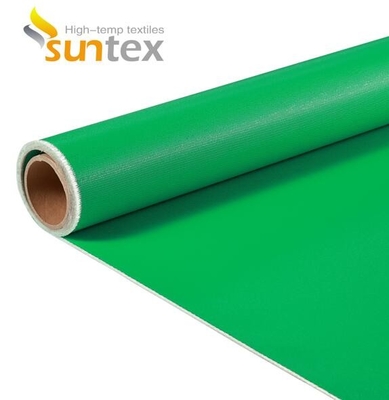

Silicone Coated Fiberglass Fabric for Welding protective blanket to prevent spark slag from splashing and catching fire
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Suntex |
| Model Number | GF660P-SI164-1092 |
| Minimum Order Quantity | 100 Square Meter/Square Meters |
| Price | US$2 - US$10 / Square Meter |
| Packaging Details | Rolls packed in cartons loaded on pallets or according to customers' requirements. |
| Delivery Time | 5-20 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 300000 Meter/ Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicone Fiberglass | Yarn Type | E-Glass |
|---|---|---|---|
| Alkali Content | Alkali Free | Coating | One Or Two Sided Silicone Rubber |
| Weight | 960g/m2 | Thickness | 0.72 Mm |
| Width | 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized | Color | Red,grey,black,green,and Customed Colors |
| Standing Temperature | From -50℃ To 500℃ | Good Features | Corrosion Resistance,weatherproof,solvent Resistant,anti-aging |
| Application 1 | Boat,shipping,power Generation,aerospace,marine | Application 2 | Insulation Cloth,heat Cloth,heat Resistant Cloth,fire Fabric |
| High Light | high temperature fiberglass cloth,Welding protective blanket,silicone coated fiberglass fabric |
||
Product Description
Fire Retardant Fabric Silicone Coated Fiberglass Fabric Insulation Cloth
Product Description

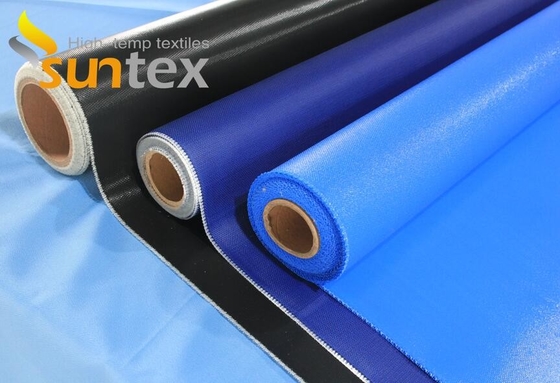

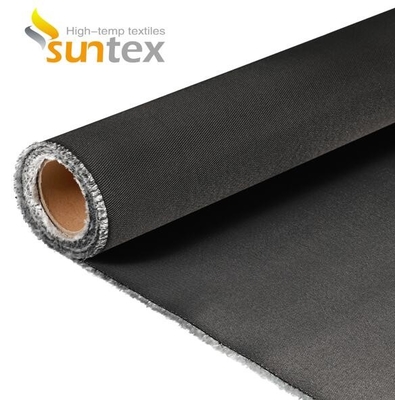

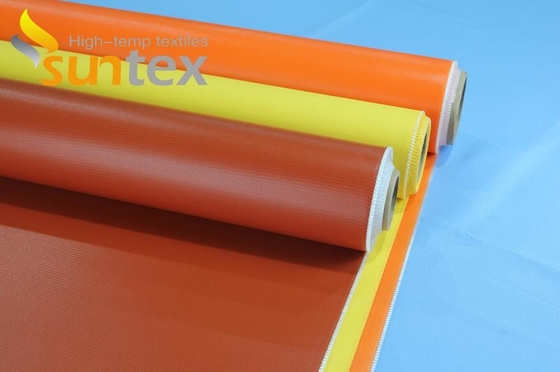

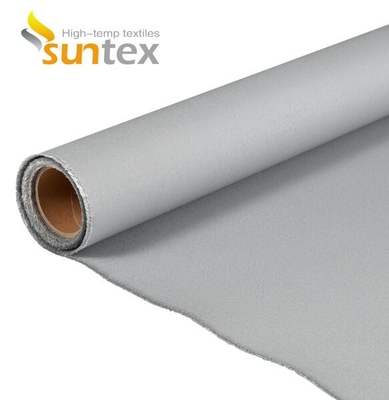

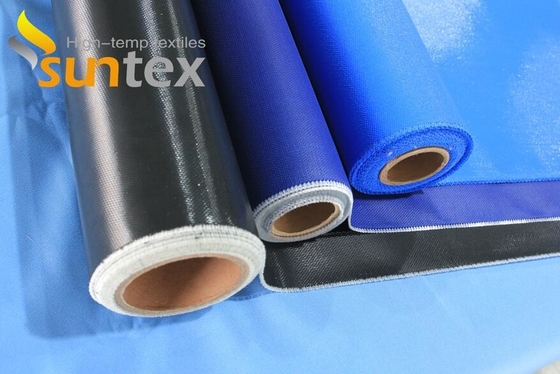

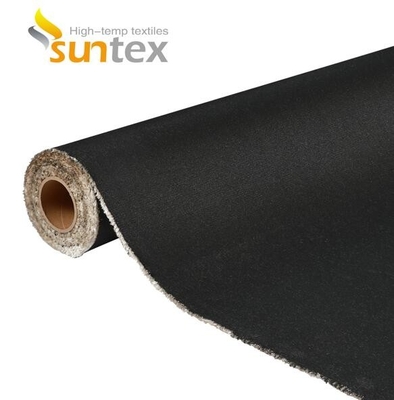

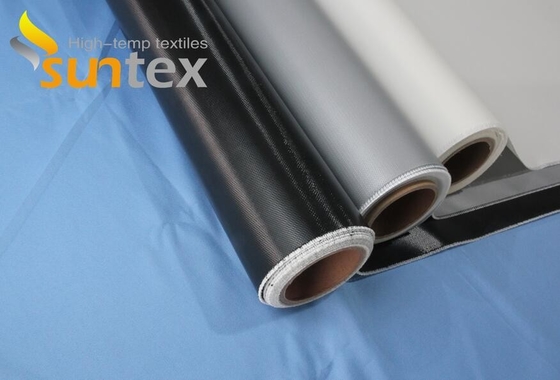

Silicone coated fiberglass fabrics
Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, solvent resistant, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.

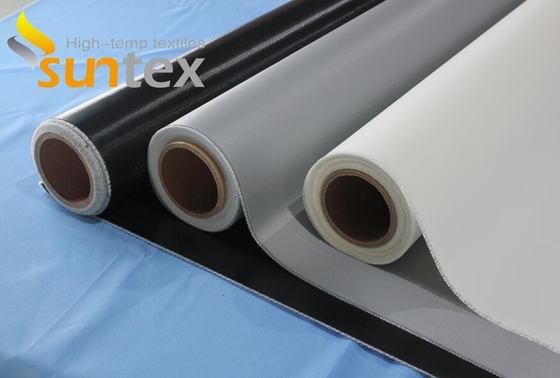

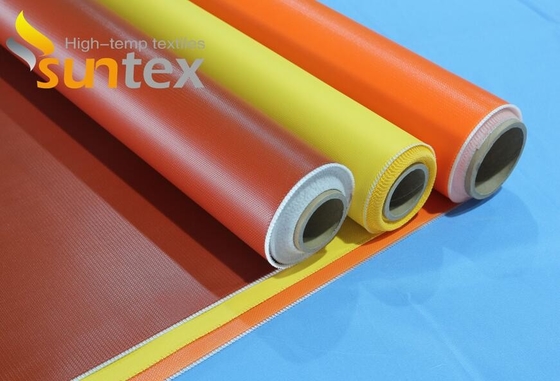

Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.
Main applications:
1.Shipping, power generation, aerospace, marine
2.Insulation cloth, heat cloth, heat resistant cloth, fire fabric
3.Insulation jackets, mattress, and pad
4.Fabric expansion joints
5.Fabric ductwork connector
6.Fire doors & Fire curtains
7.Welding/fire blankets
8.Other fire control systems

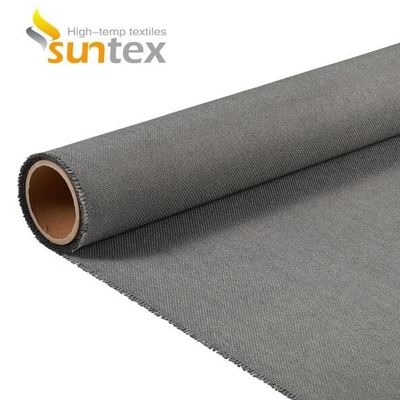

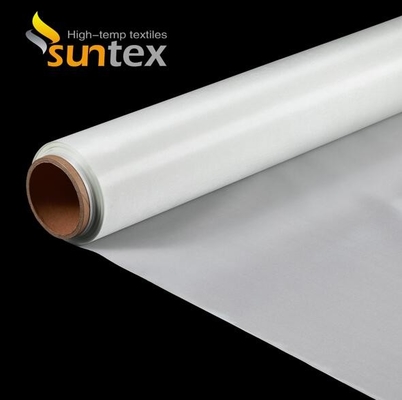

| BASE FABRIC | Base fabric style No. GF660P | ||
| (Metric) | (English) | Test methods | |
| Weave | 8H Satin | 8H Satin | |
| Yarn | |||
| Warp | EC9 68 1*3 | ECG 75 1/3 | |
| Weft | EC9 68 1*3 | ECG 75 1/3 | |
| Construction | |||
| Warp | 16 ± 1 ends/cm | 41± 2 ends/inch | ASTM D 3775-96 |
| Weft | 15± 1 picks/cm | 38 ± 2 picks/inch | ASTM D 3775-96 |
| Weight | 660 ± 45 g/m2 | 19.4 ± 1.3 oz/yd2 | ASTM D3776-96 |
| Thickness | 0. 6 ± 0.06 mm | 0.024 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. SI164-1092 | ||
| Coating | Silicone rubber coated one side | ||
| Weight | 960 ± 50 g/m2 | 28 ± 1.4 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.72 ± 0.05 mm | 0.028 ±0.002 inch | ASTM D1777-96 |
| Color | RED | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
||
