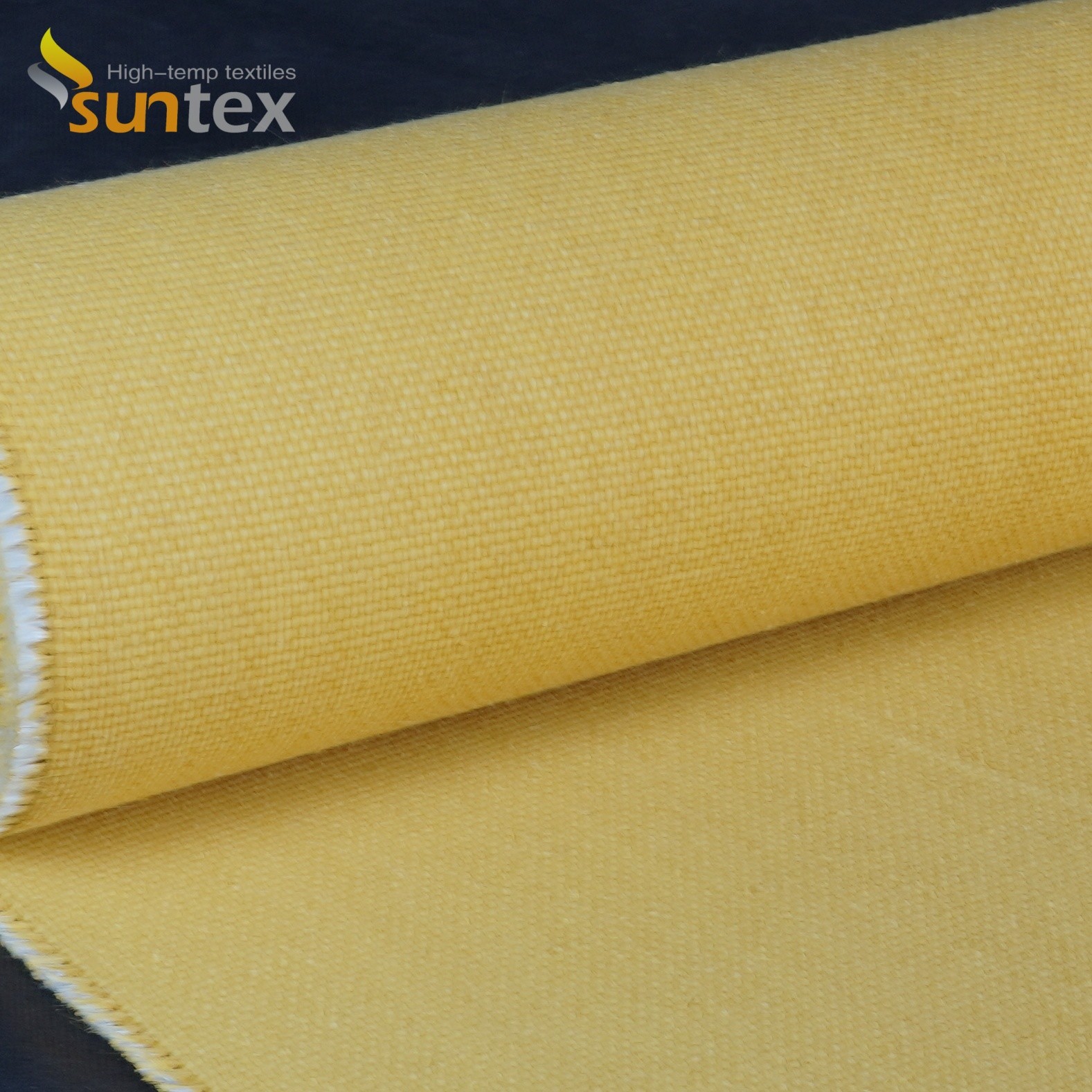

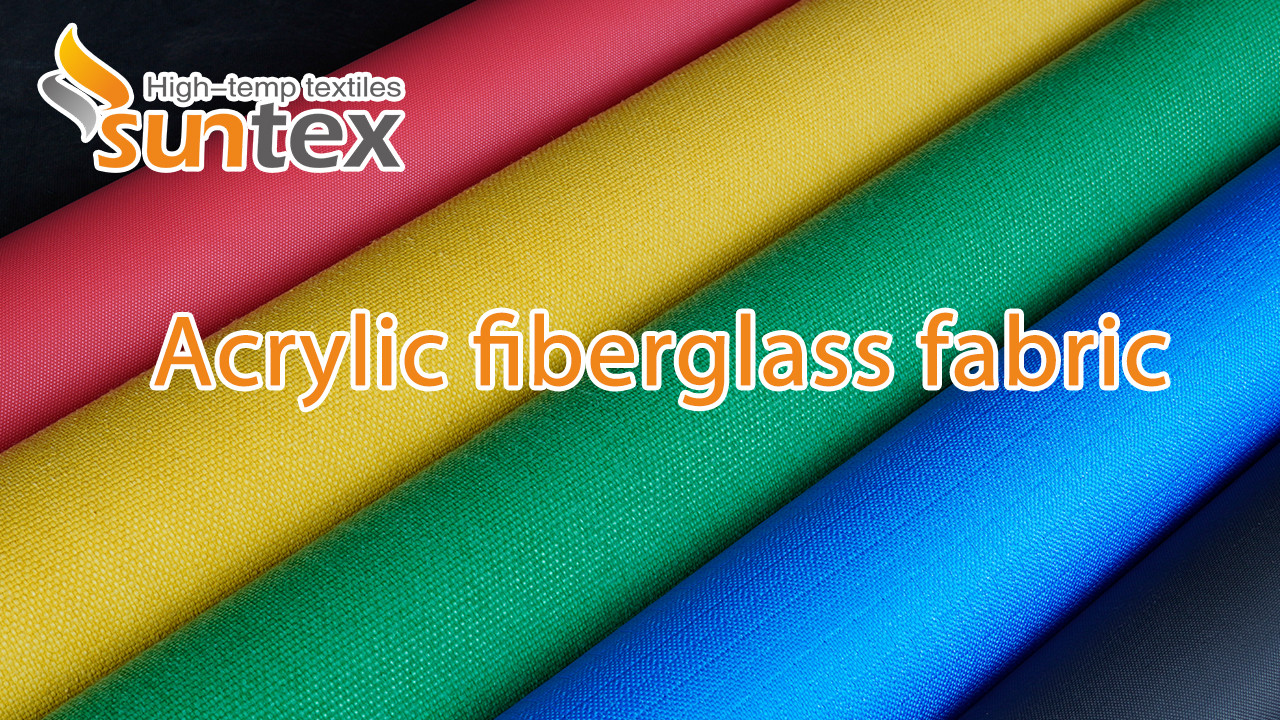

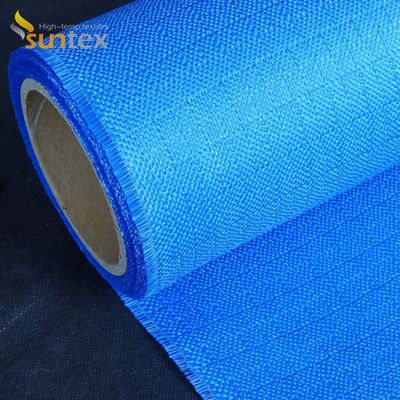

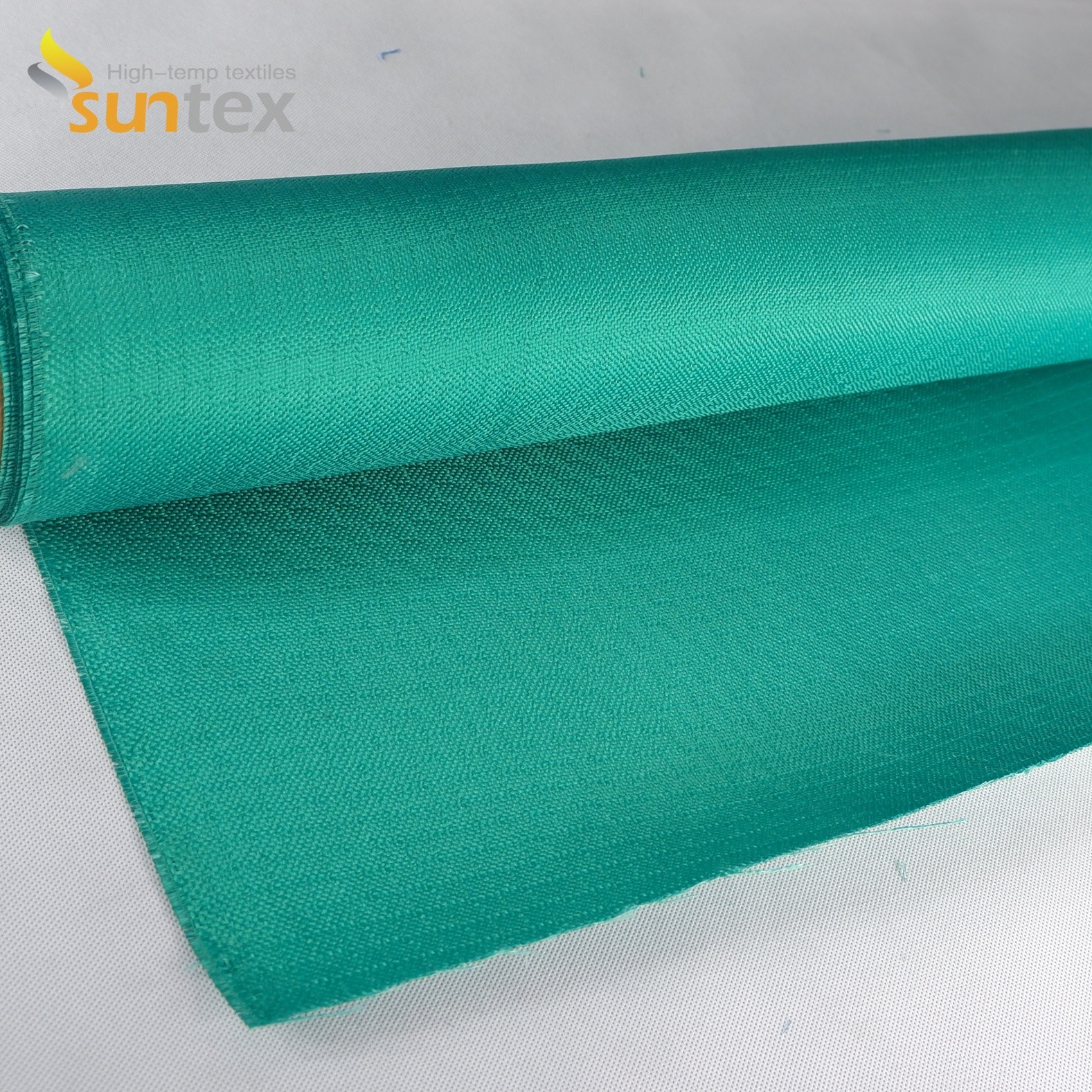

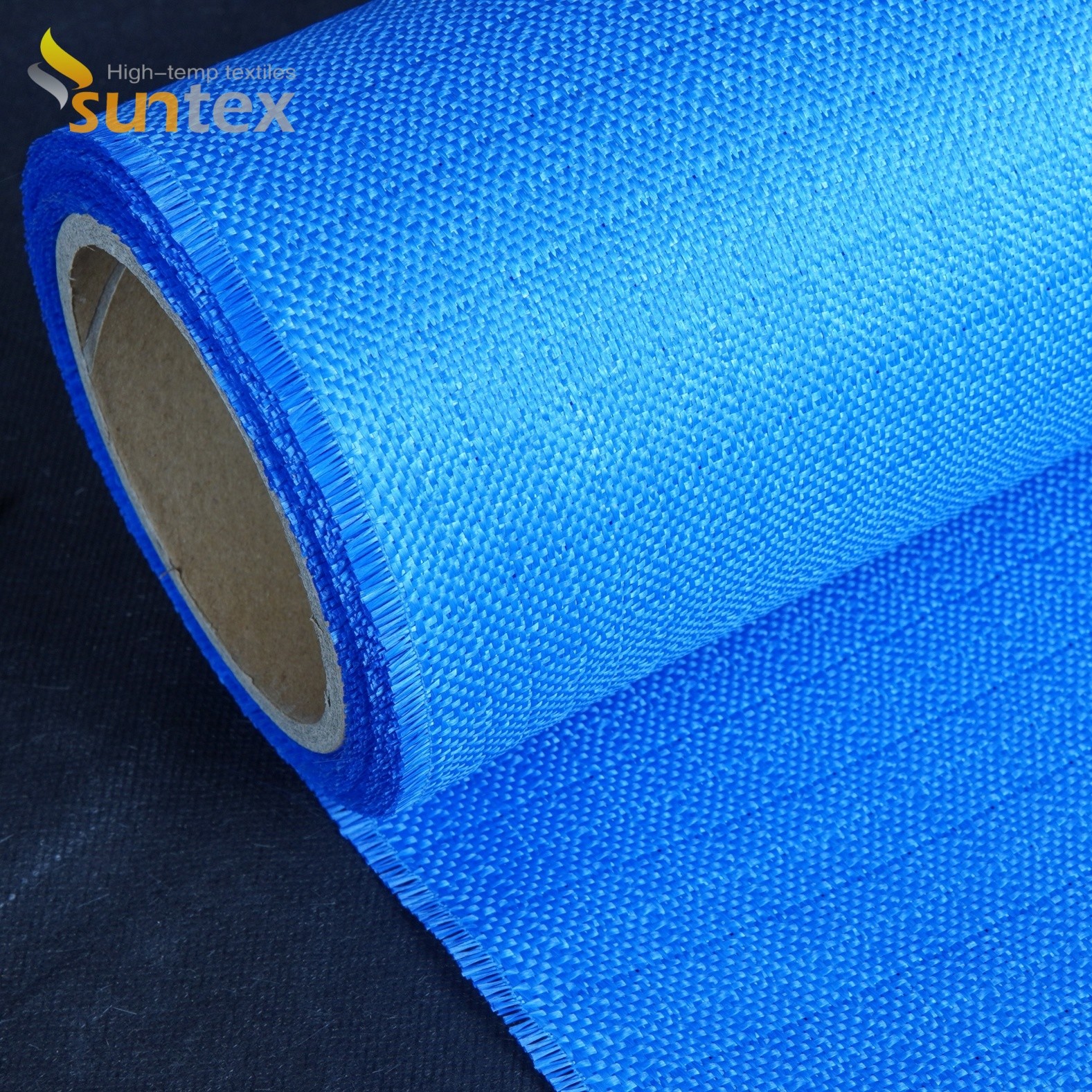

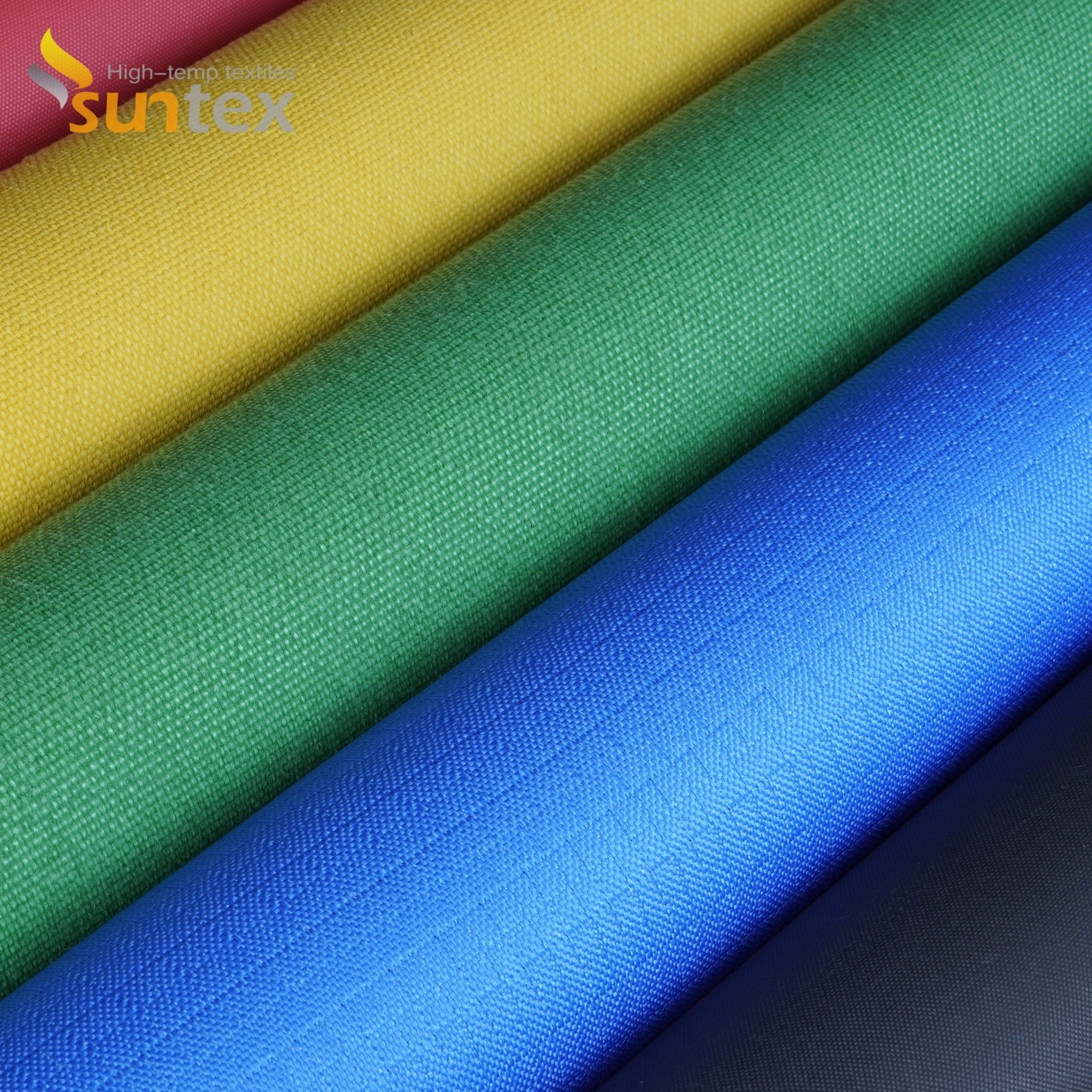

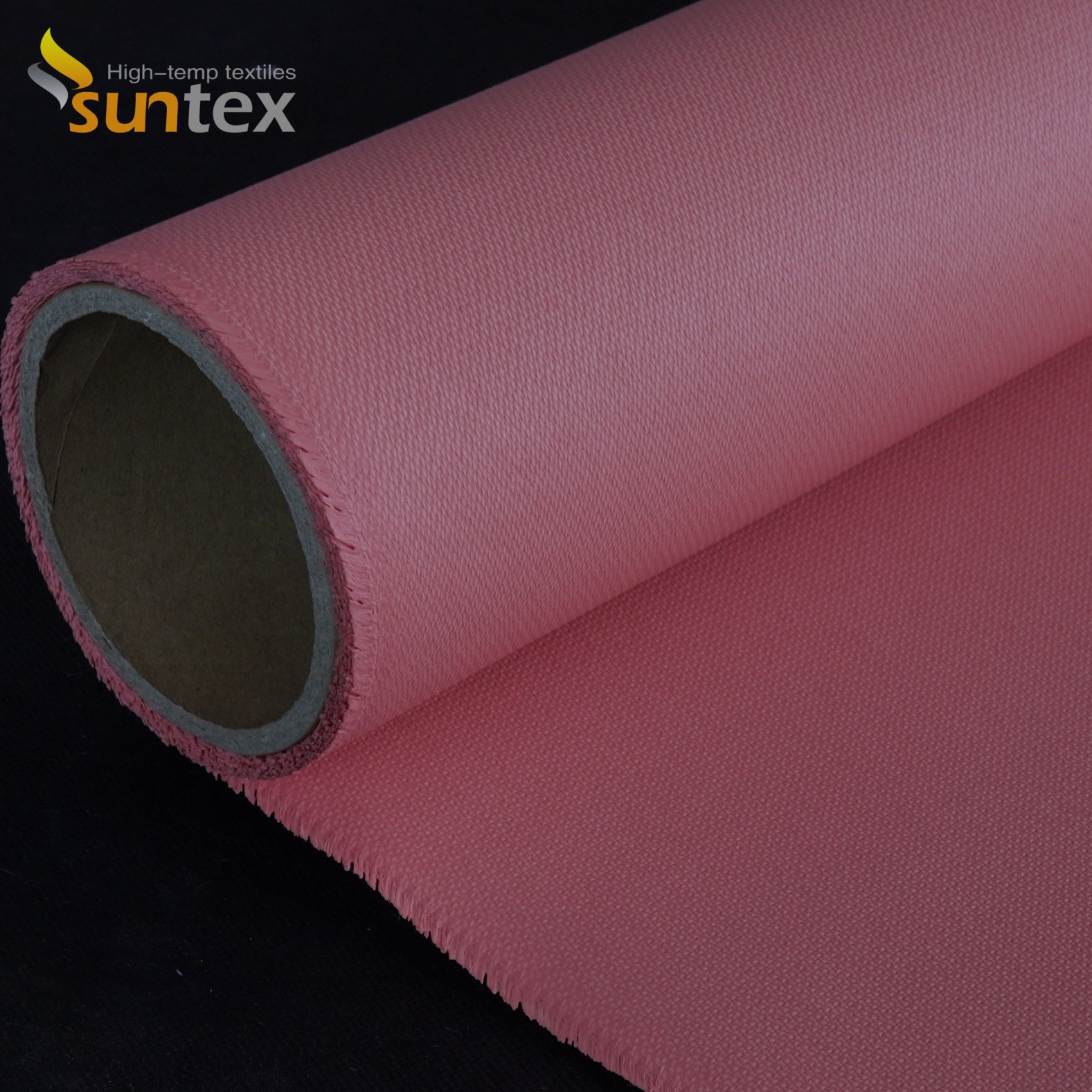

SUNTEX Acrylic Coated Fiberglass Fabric

  • SUNTEX Acrylic Coated Fiberglass Fabric
  • SUNTEX Acrylic Coated Fiberglass Fabric
  • SUNTEX Acrylic Coated Fiberglass Fabric
  • SUNTEX Acrylic Coated Fiberglass Fabric
  • SUNTEX Acrylic Coated Fiberglass Fabric
  • SUNTEX Acrylic Coated Fiberglass Fabric
  • SUNTEX Acrylic Coated Fiberglass Fabric
Place of Origin China
Brand Name SUNTEX
Model Number TGF884P-AC236-3022
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Golden Fire Resistant Fiberglass Fabric Application Smoke Curtain,welding Protection
Width 183cm Thickness 1.0mm
Density 1020 G/sq.mtr Temperature 550 Degree C
Highlight

Acrylic Coated Fiberglass Fabric

,

Acrylic Coated Fiberglass Fabric

,

Acrylic Coated Fiberglass Fabric
Leave a Message
Product Description

Excellent Tensile Strength Acrylic Coated Fiberglass Fabric For Welding Protection Blanket



TGF884P-AC236-3022 is a texturized fiberglass fabric with acrylic coating.It has excellent high temperature resistance up to temp. 5500C,self-extinguishes in 2 seconds when moving away from fire.



Acrylic coating improves handing and reduces airborne fibers.The coating enhances abrasion resistance and shelf life while eliminating the potential for toxic smoke out gassing. After treatment, the machnical performance improved as well.



Fire Resistant Fiberglass Fabric is asbestos-free totally,no harm to human or animals.



Suntex provide golden color or other colors required.



Technical Data:



BASE FABRIC Base fabric style No. TGF884
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp ET9 860 tex ETG 5.8
Weft ET9 860 tex ETG 5.8
Construction
Warp 6.1 ± 0.5 ends/cm 15 ± 1 ends/inch ASTM D 3775-96
Weft 4.1 ± 0.2 picks/cm 10 ± 1 picks/inch ASTM D 3775-96
Weight 884± 30 g/m2 26 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 1.0 ± 0.04 mm 0.039 ± 0.002 inch ASTM D1777-96



FINISHED FABRIC Finishing style No. AC236-3022
Coating Acrylic weave-set finish on both sides, high add-on.
Weight 1020 ± 50 g/m2 30 ± 1.47 oz/yd2 ASTM D3776-96
Thickness 1.0 ± 0.08 mm 0.039± 0.003 inch ASTM D1777-96
Color Golden
Temp resistance 5500C 10000F





SUNTEX Acrylic Coated Fiberglass Fabric 0



Advantages:



1. Easy to be holed, sewn and fabricated.

2. Supports high heat up to 550 C degree

3. Excellent tensile strength.



Main applications:



1. Smoke retardant curtain

2. Welding protection blanket

3. Industrial heat insulation mattress

Tags:

fiberglass fabric roll

high temp fabric

acrylic coated fiberglass
