Quality High Temperature Resistant Glass Fiber Cloth Fabric 460g/m2 factory

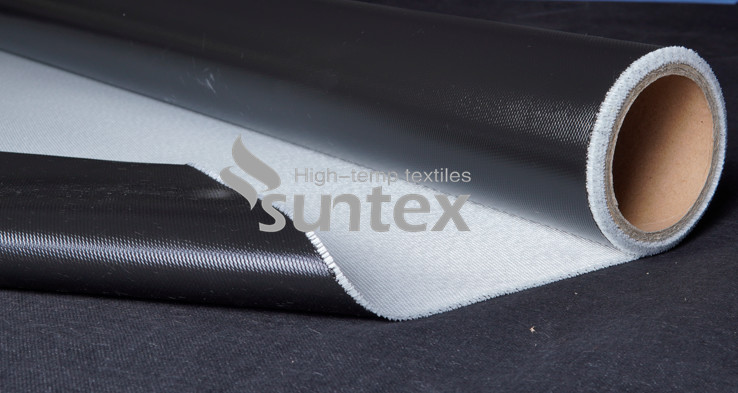

High Temperature Resistant Glass Fiber Cloth Fabric 460g/m2

Name: High Temperature Resistant Glass Fiber Cloth Fabric 460g/m2
Brand: Suntex Composite Industrial Co.,Ltd.
SKU: GF430P-PU213-2005
Price: 2.40 USD
Availability: InStock

Place of Origin:Jiangsu, China

Brand Name:Suntex

Model Number:GF430P-PU213-2005

Minimum Order Quantity:500 Square Meter/Square Meters

Price:US$2.4 - US$2.6 / Square Meter

Payment Terms:L/C, D/P, T/T

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Temperature Resistant Glass Fiber Cloth Fabric

,

Fireproof Glass Fiber Cloth Fabric

Weave Type: Twill Woven,plain Woven Or Customized

Alkali Content: Alkali Free

Surface Treatment: Polyurethane(PU) Coated

Material: Fiberglass

Coating: Two Side Polyurethane(PU) Coated

Thickness: 0.41mm

Weight: 460g/m2

Width: 1000mm,1520mm,1550mm,2000mm Or Customized

Standing Temperature: -70 To +180 Degree C

Good Feature: High Stability, High-temp,nonstick

Application: Fire Blanket/curtain, Welding Blanket/curtain, Smoke Curtain

Color: Grey And Customed Colors

Product Description

Public Area And Home Safety Emergency Universal Sizes Welding Fiberglass Fire Blanket

Suntex insulation fireproof non-stick fiberglass cloth polyurethane(PU) coated fabric is made up of woven fiberglass fabric with a waterproof polyurethane coating or laminate. The polyurethane coating is applied to two sides of the base fabric, this makes the fabric water-resistant, lightweight and flexible. Its applications include camping tents, clothing, bags, light-duty covers, fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, and so on.

BASE FABRIC	Base fabric style No. GF430P
	(Metric)	(English)	Test methods
Weave	4H Satin	Crowfoot
Yarn
Warp	EC9 68 1﹡2	ECG 75 1/2
Weft	EC9 68 1﹡2	ECG 75 1/2
Construction
Warp	18 ± 1 ends/cm	48 ± 3 ends/inch	ASTM D 3775-96
Weft	12.6 ± 1 picks/cm	32 ± 3 picks/inch	ASTM D 3775-96
Weight	430 ± 30 g/m²	12.6 ± 0.9 oz/yd²	ASTM D3776-96
Thickness	0.37 ± 0.06 mm	0.015 ± 0.002 inch	ASTM D1777-96

COATED FABRIC	Coating style No. PU213-2005
Coating	Fire resistance, high performance, polyurethane on both sides
Weight	460 ± 20 g/m²	13.5 ± 0.59 oz/yd²	ASTM D3776-96
Thickness	0.41 ± 0.03 mm	0.016 ± 0.0012 inch	ASTM D1777-96
Color	Grey
Fire resistance	M0 approvals		NFP92503
Temp resistance	Glass fabric up to 550⁰C (1000⁰F) Polyurethane coating up to 180⁰C (356⁰F)

Applications:

- fire Doors/curtains/blankets;
- smoke Curtains
- fire/welding Blankets;
- fabric Air Distribution Ducts;
- fabric Ductwork Connector;
- removable Insulation Cover;
- waterproof In The Roof
