Quality Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric factory

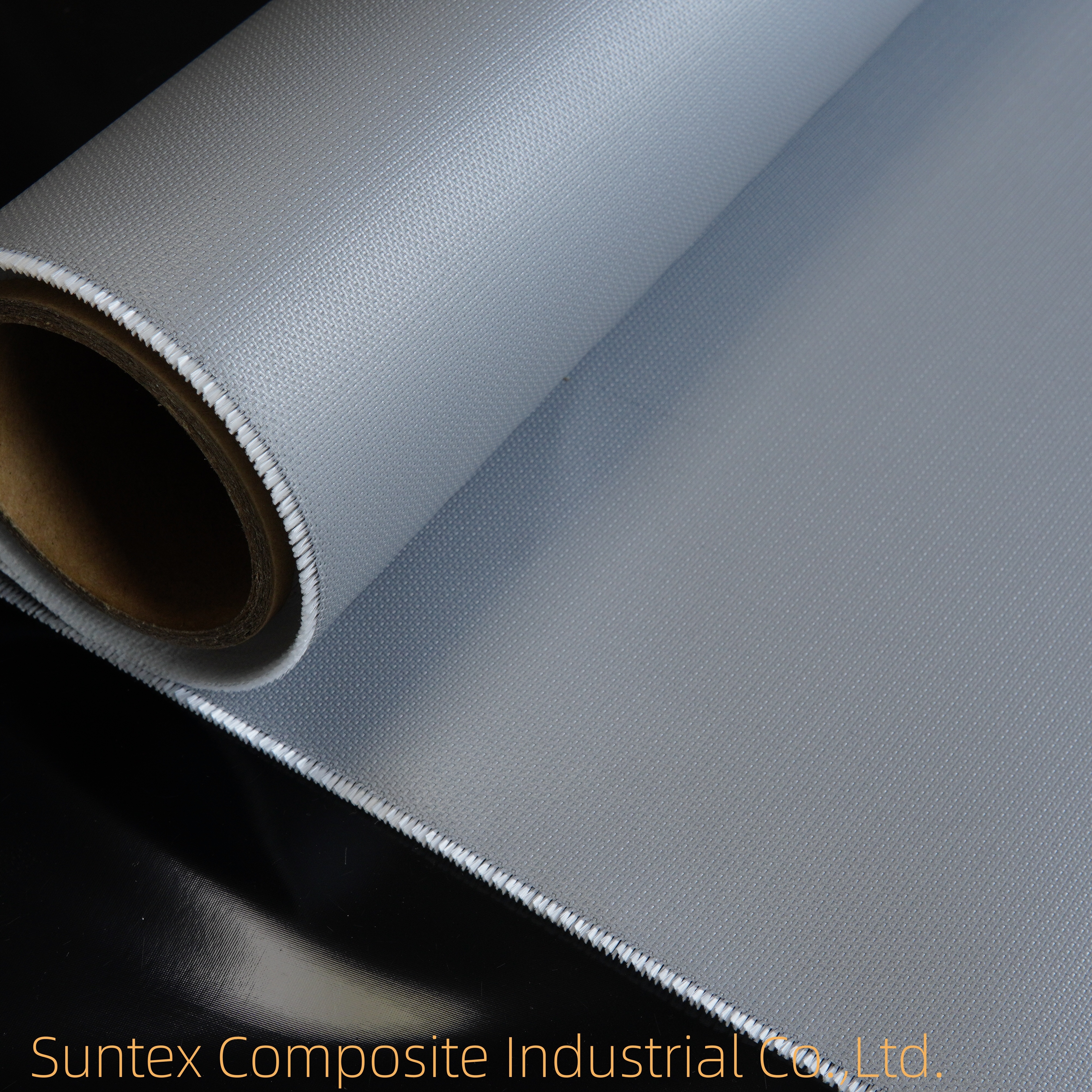

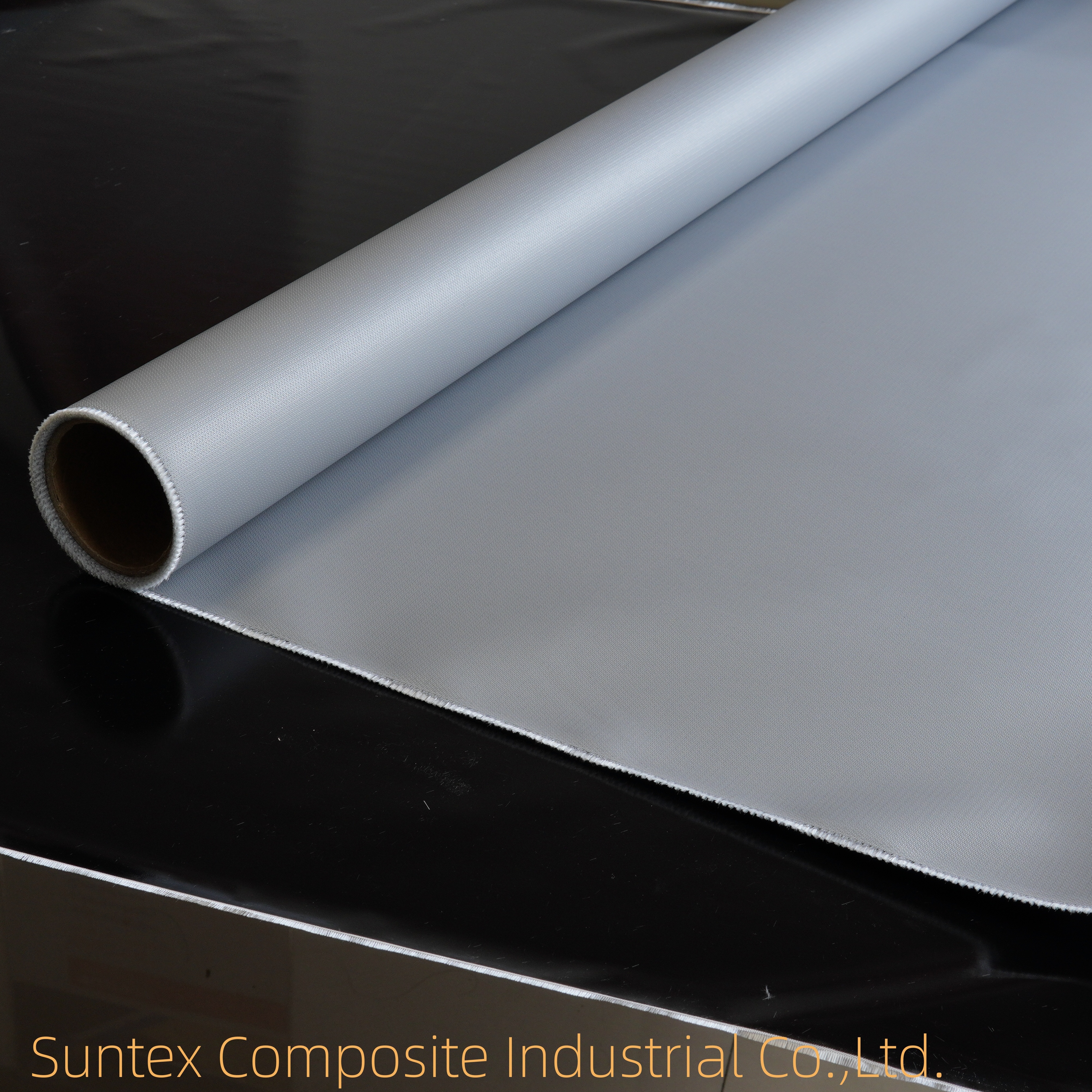

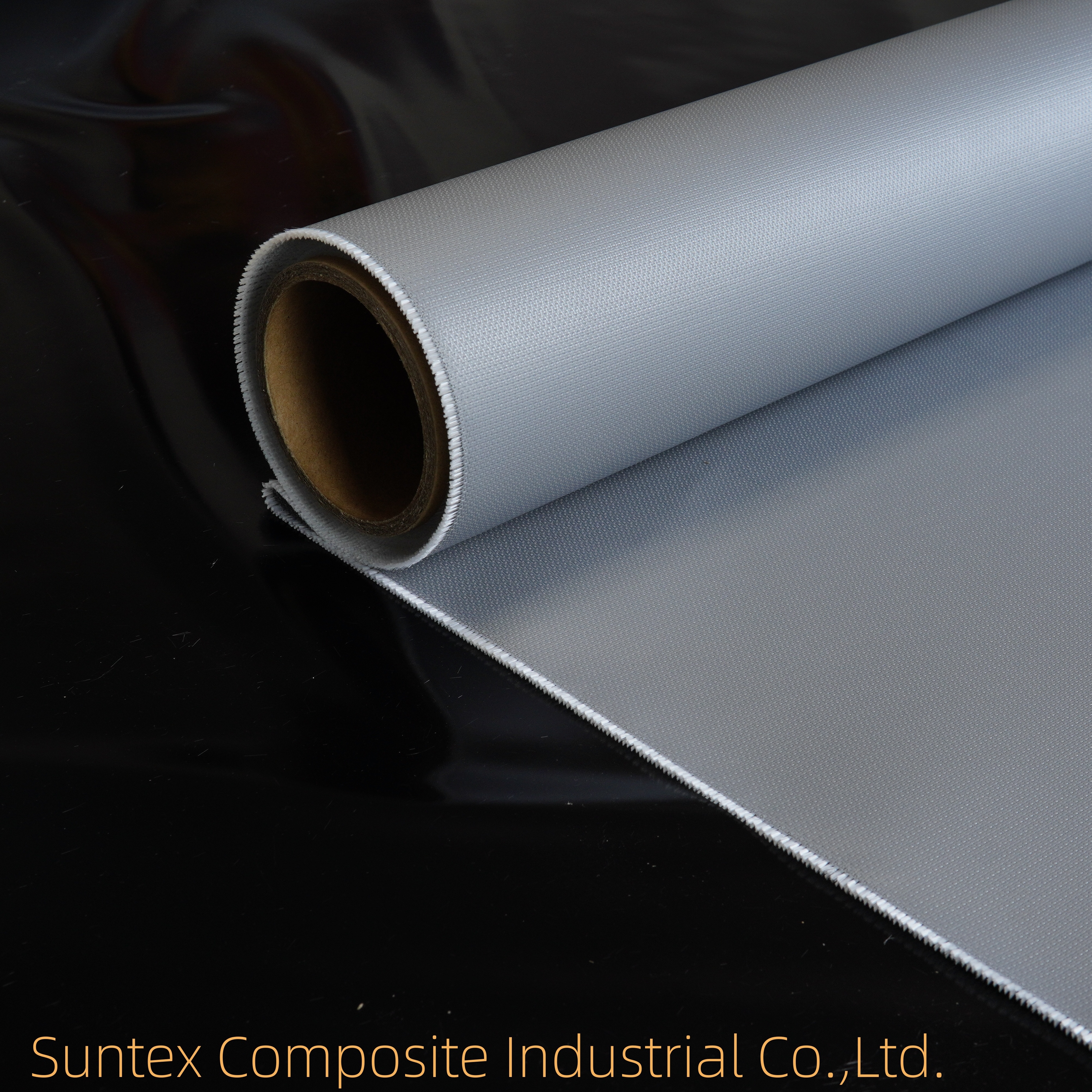

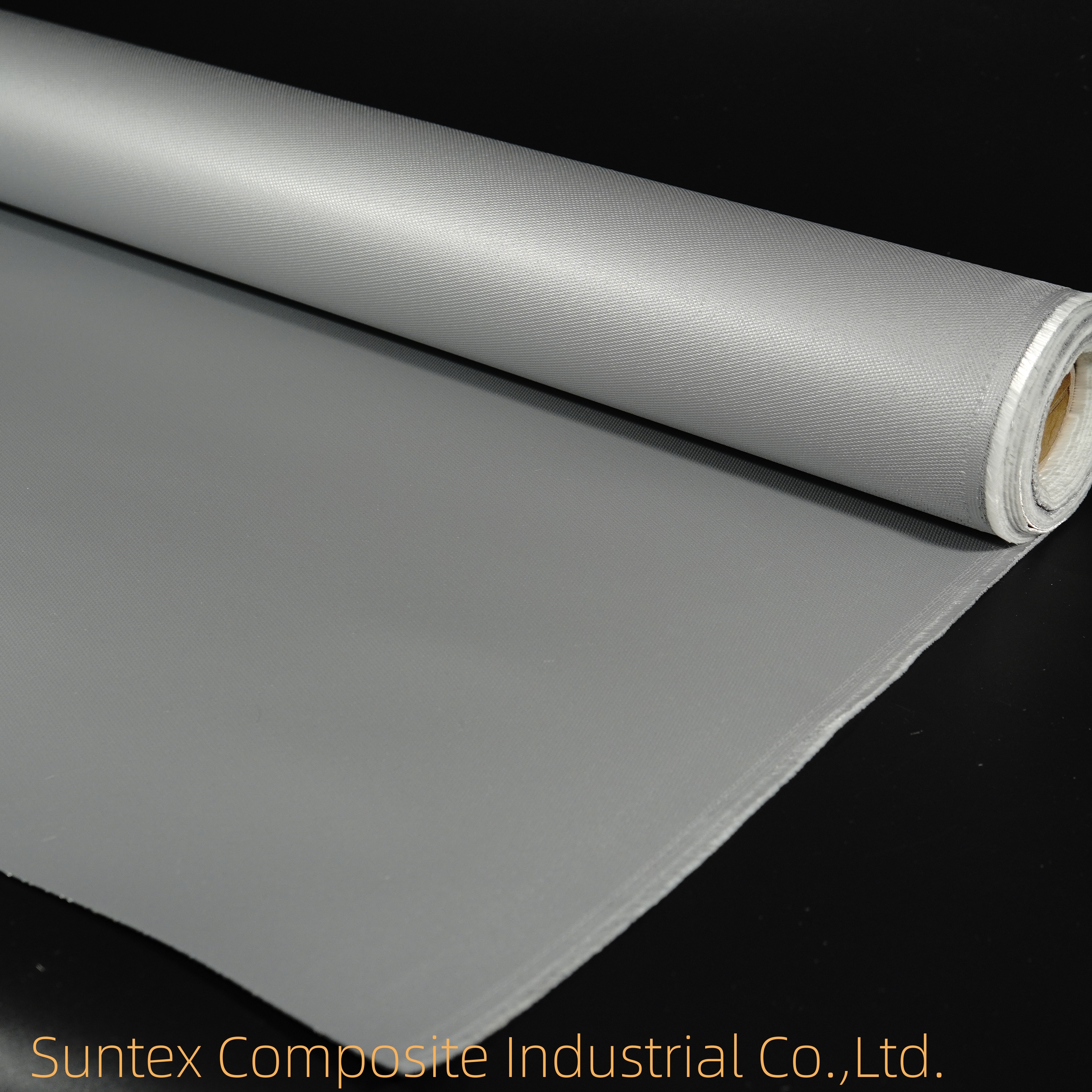

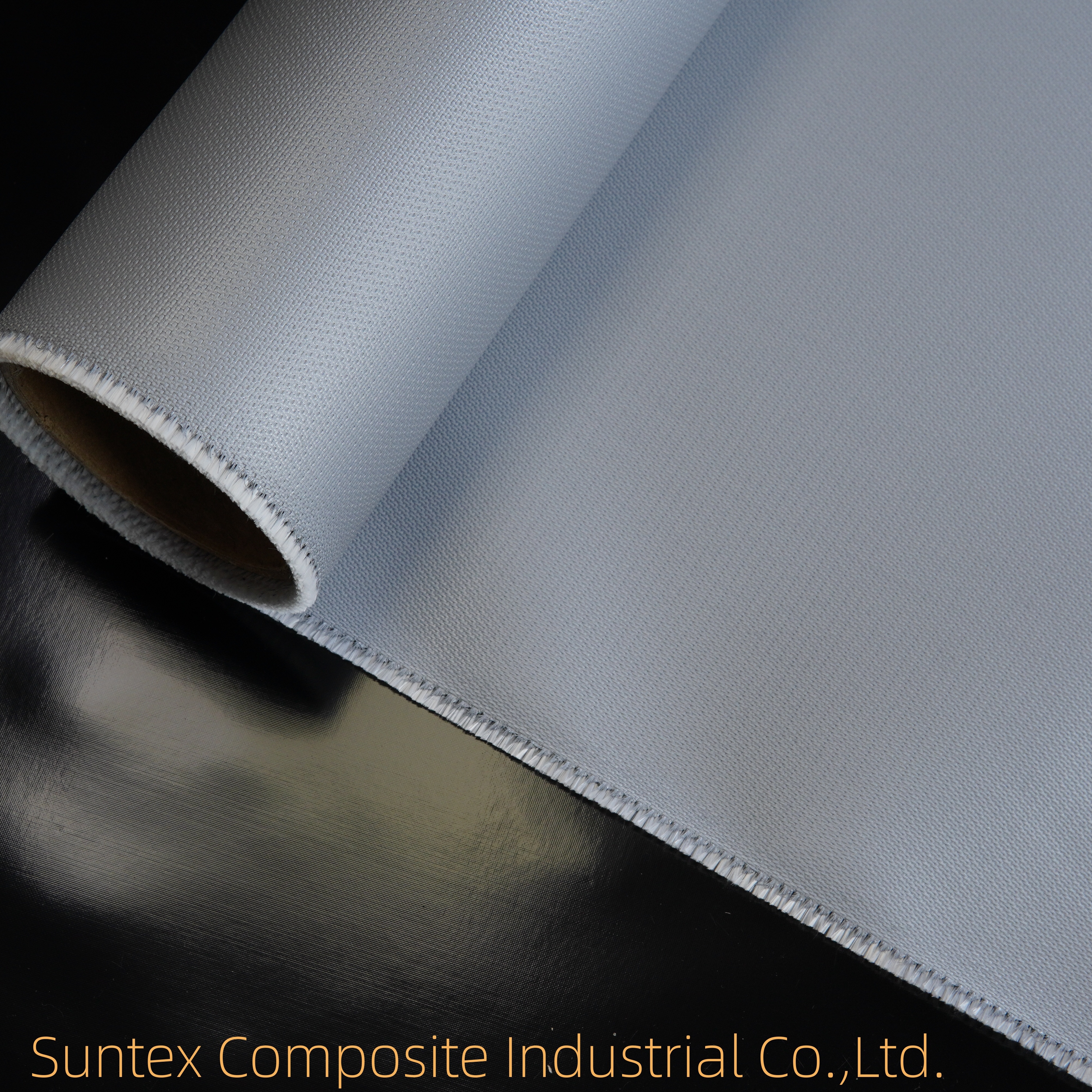

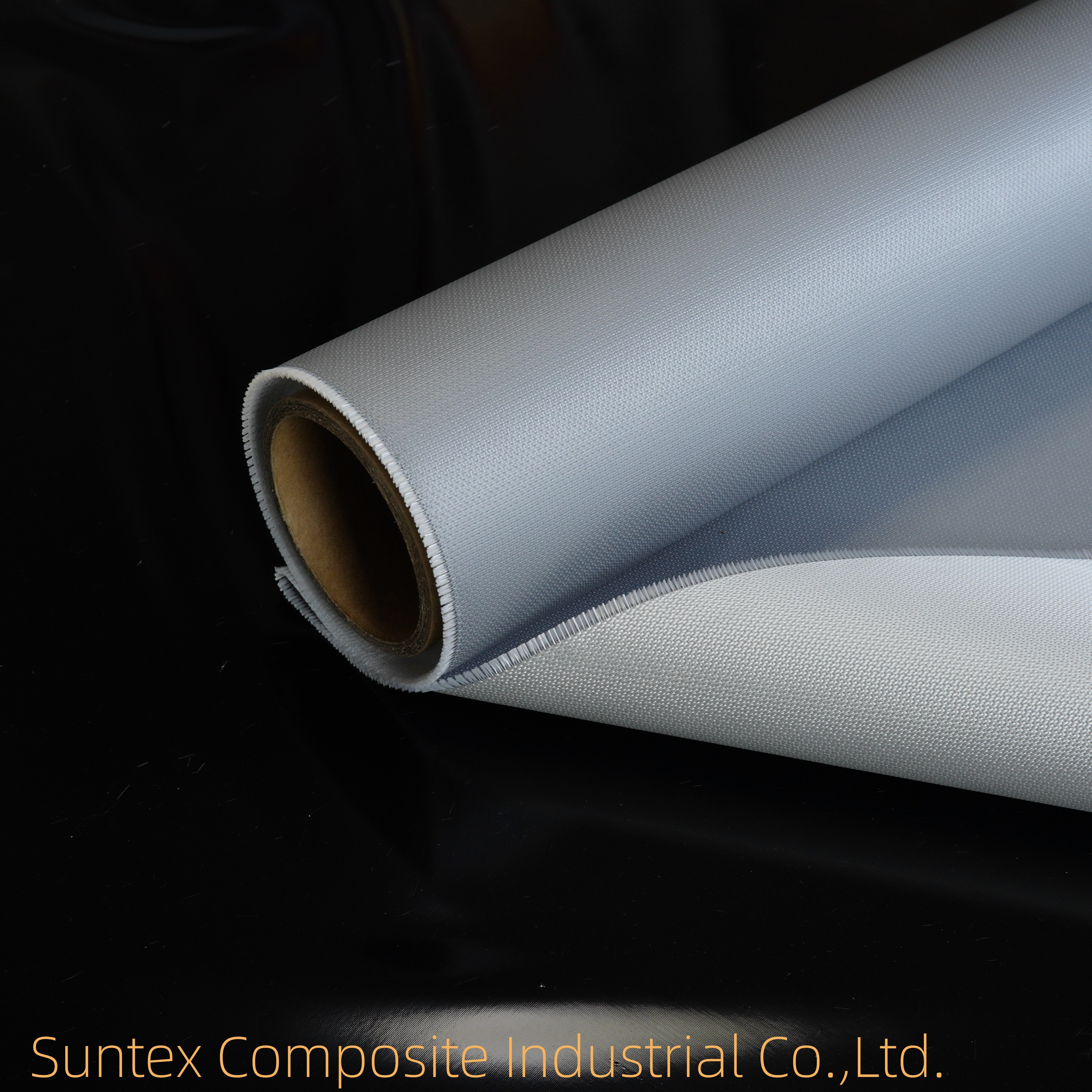

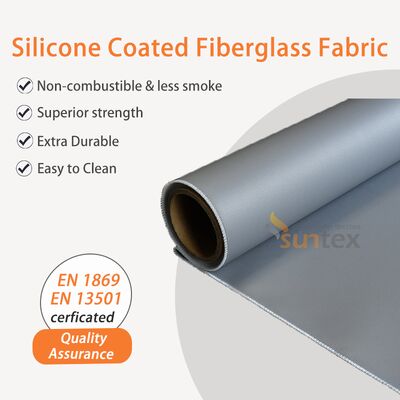

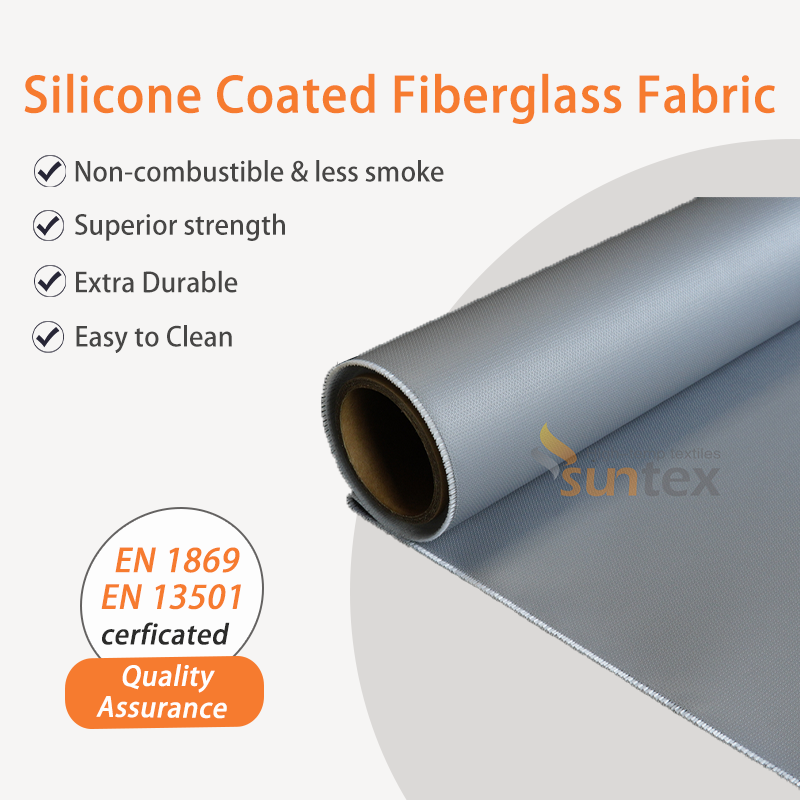

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric

Name: Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric
Brand: Suntex Composite Industrial Co.,Ltd.
SKU: GF200P-SI243-1053
Price: 5.00 USD
Availability: InStock

Place of Origin:China

Brand Name:SUNTEX

Model Number:GF200P-SI243-1053

Minimum Order Quantity:20 rolls

Payment Terms:T/T; L/C, Paypal...

Supply Ability:500000sqm/month

Product Details

Highlight:

Excellent Insulation Silicone Coated Fiberglass Fabric

,

Fire Retardant Silicone Coated Fiberglass Fabric

Temperature Resistance: -50 C Degree To 500 C Degree

Weight: 400 G/sqm

Thickness: 0.3 Mm

Coating: Silicone Rubber

Width: 1 / 1.2 / 1.5 Meter

Alkali Content:: Alkali Free

Color: Grey

Roll Length: 50 M / 100 M

Product Description

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric

Product Description

Silicone coated fiberglass fabrics

Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -50⁰C to +550⁰C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.

Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.

Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems

BASE FABRIC	Base fabric style No. GF430P
	(metric)	(English)	Test methods
Weave	4H Satin	Crowfoot
Yarn
Warp	EC9 68 1*2	ECG 75 1/2
Weft	EC9 68 1*2	ECG 75 1/2
Construction
Warp	18 ± 1 ends/cm	48 ± 3 ends/inch	ASTM D 3775-96
Weft	12.6 ± 1 picks/cm	32 ± 3 picks/inch	ASTM D 3775-96
Weight	430 ± 30 g/m²	12.6 ± 0.9 oz/yd²	ASTM D3776-96
Thickness	0.37 ± 0.06 mm	0.015 ± 0.002 inch	ASTM D1777-96

COATED FABRIC	Coating style No. SI244-1017
Coating	Silicone rubber 2 sides
Weight	590 ± 25 g/m²	17.4 ± 0.74 oz/yd²	ASTM D3776-96
Thickness	0.45± 0.02 mm	0.018 ± 0.0007 inch	ASTM D1777-96
Color	Red
Fire resistance	Flame retardant
Temp resistance	Glass fabric up to 550⁰C (1000⁰F) Silicone rubber coating up to 250⁰C (480⁰F)

GF430P-SI244-1017 GF880P-SI133-1046 SL600-

Product Application

Packaging & Shipping

Packaging-&-Shipping

-_13

-_15

Exhibition & Example

-_16
