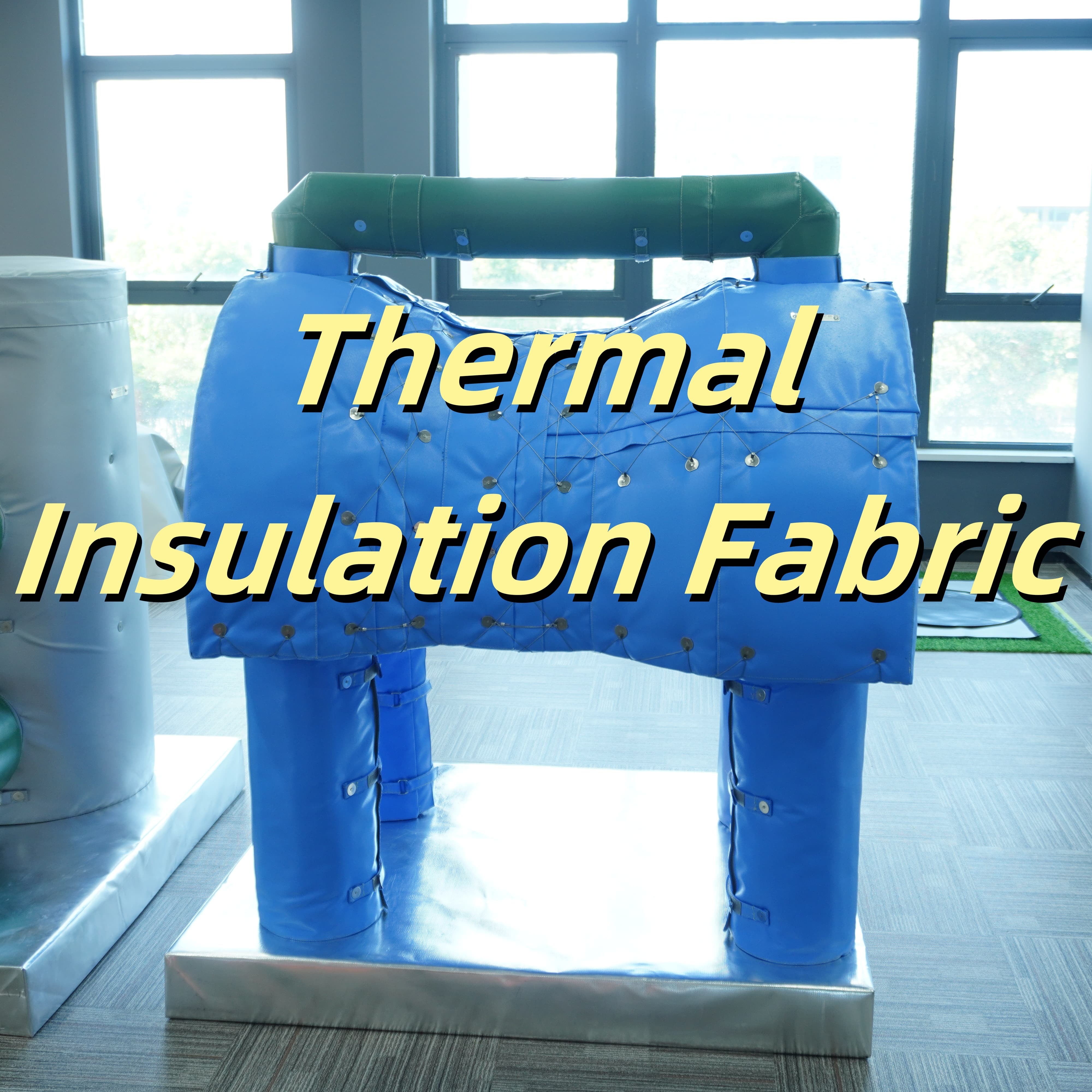

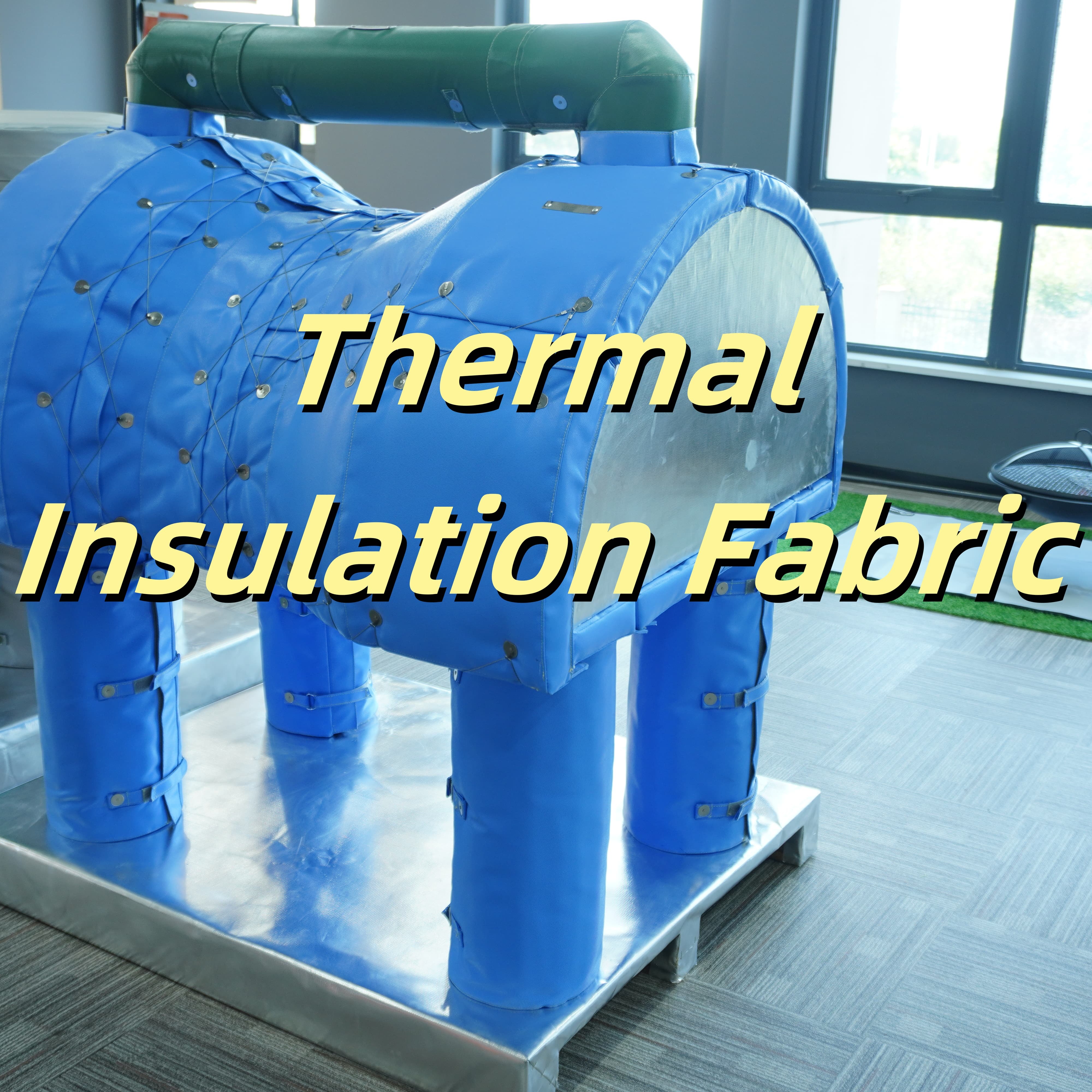

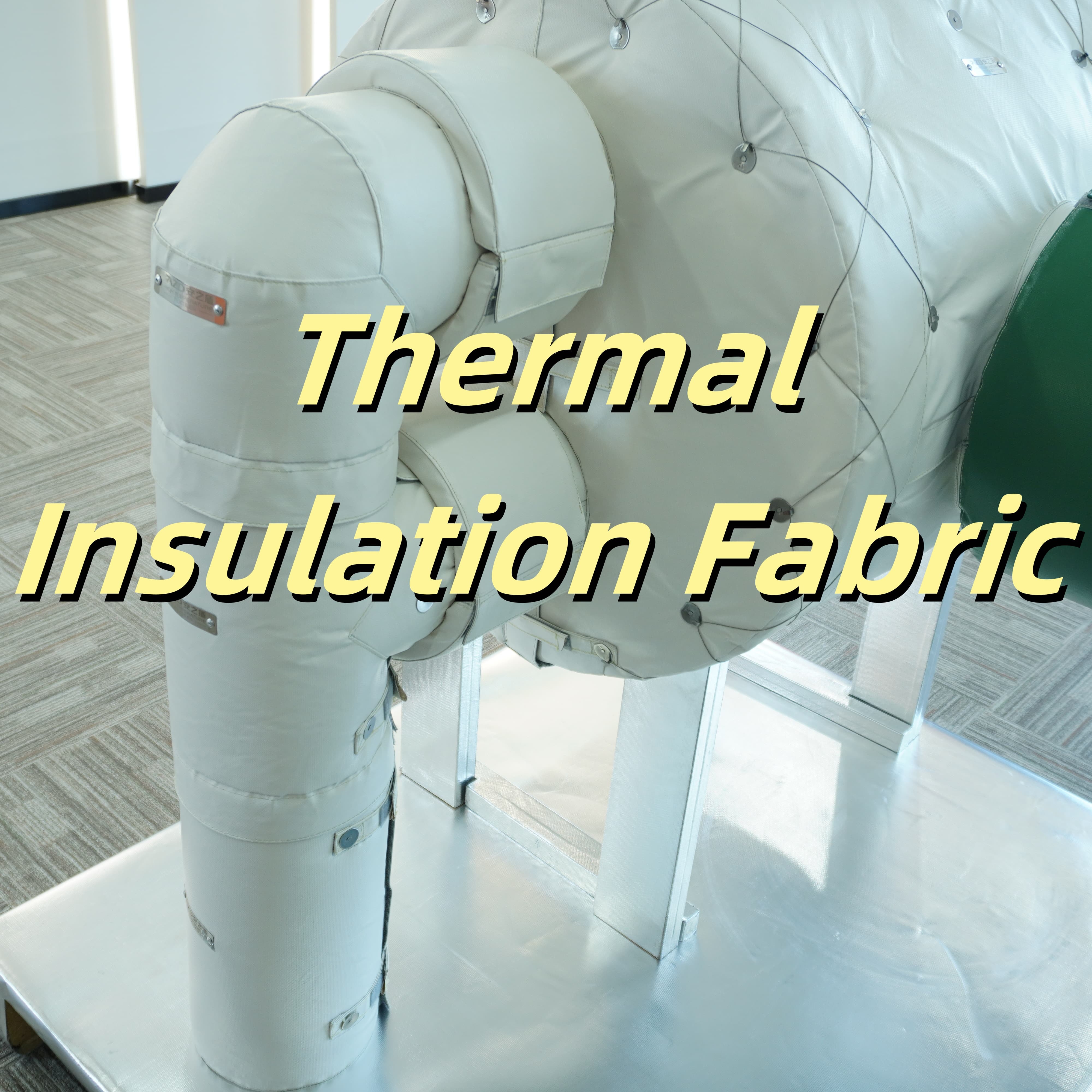

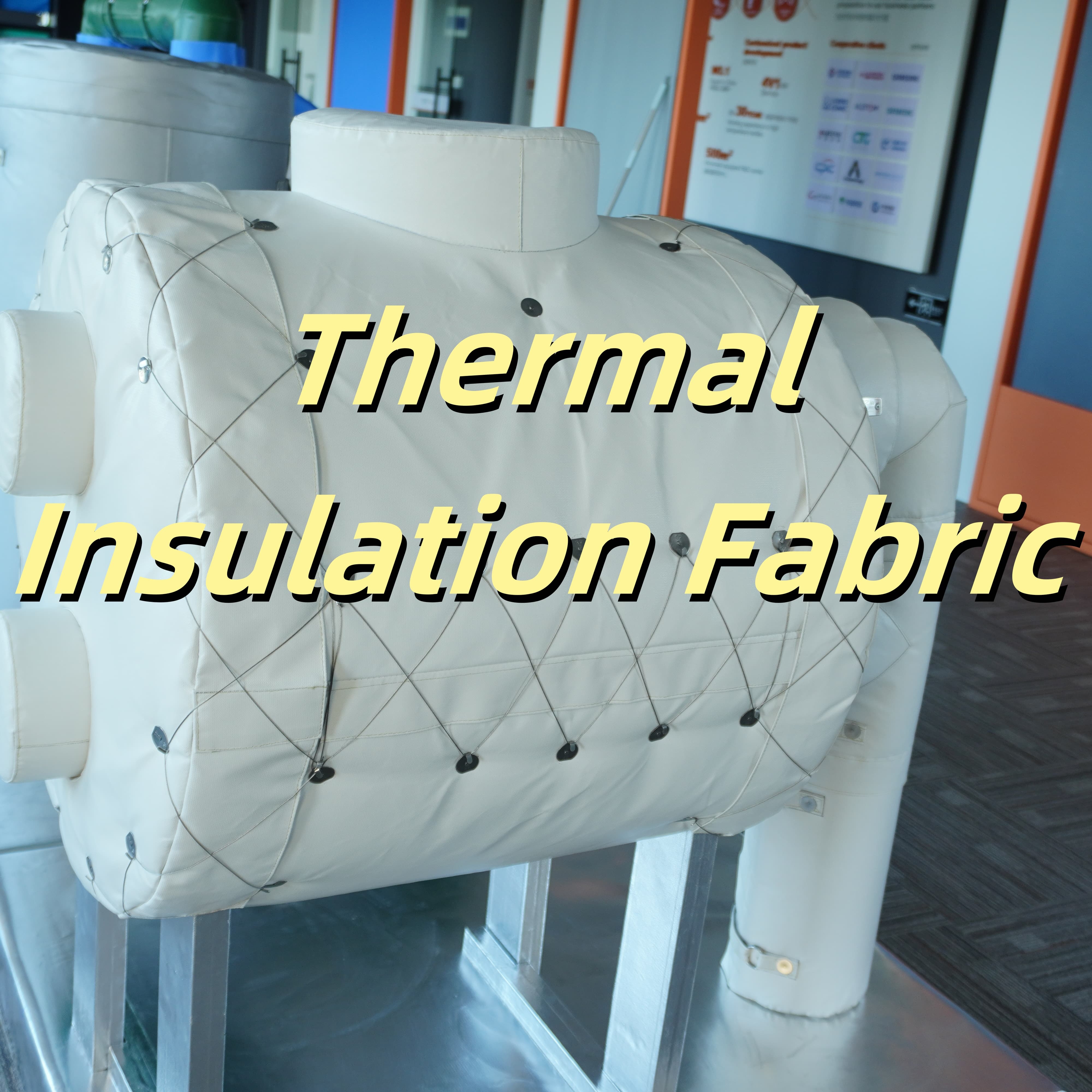

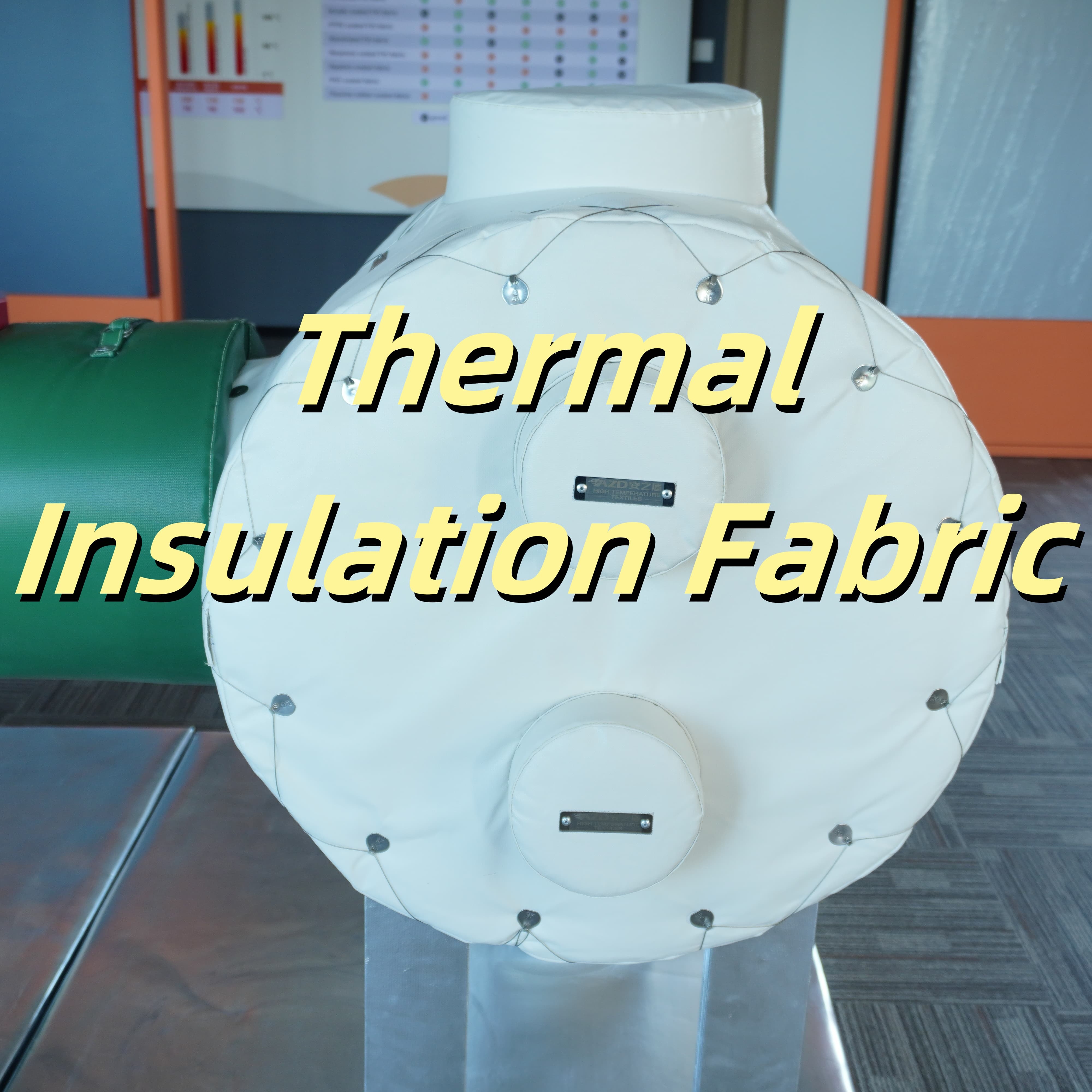

PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket

  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
  • PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket
Place of Origin Jiangsu, China
Brand Name Suntex
Model Number fiberglass removable insulation jacket
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed in cartons loaded on pallets or according to customers' requirements.
Delivery Time 5-20 days
Payment Terms L/C,D/P,T/T
Supply Ability 200000 Pieces/ month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-foil,glassfiber And High Temperature Resistance Cloth Yarn Type E-Glass
Alkali Content Alkali Free Weave Type Twill
Weight From 200 To 2000 Gram/sq.mtr Thickness 25-100mm
Width 1m 1.2m 1.5m 1.8m 2m Or Customized Colors Red,grey,black,green,and Customed Colors
Temperature Resistance -70C~+1000 C Size Be Customized According To Different Shapes And Sizes Of The Equipment
Fabrics For Removable Thermal Insulation Pads,jackets Good Features Excellent Insulation, Water And Oil Proofing, Easy To Clean
Application 1 Heat Preservation And Insulation On Pipes, Elbow, Flange, Tees Application 2 Chemical Reactors, Turbine Suits, Heat Exchanges, Exhaust Pipe
Leave a Message
Product Description

Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant

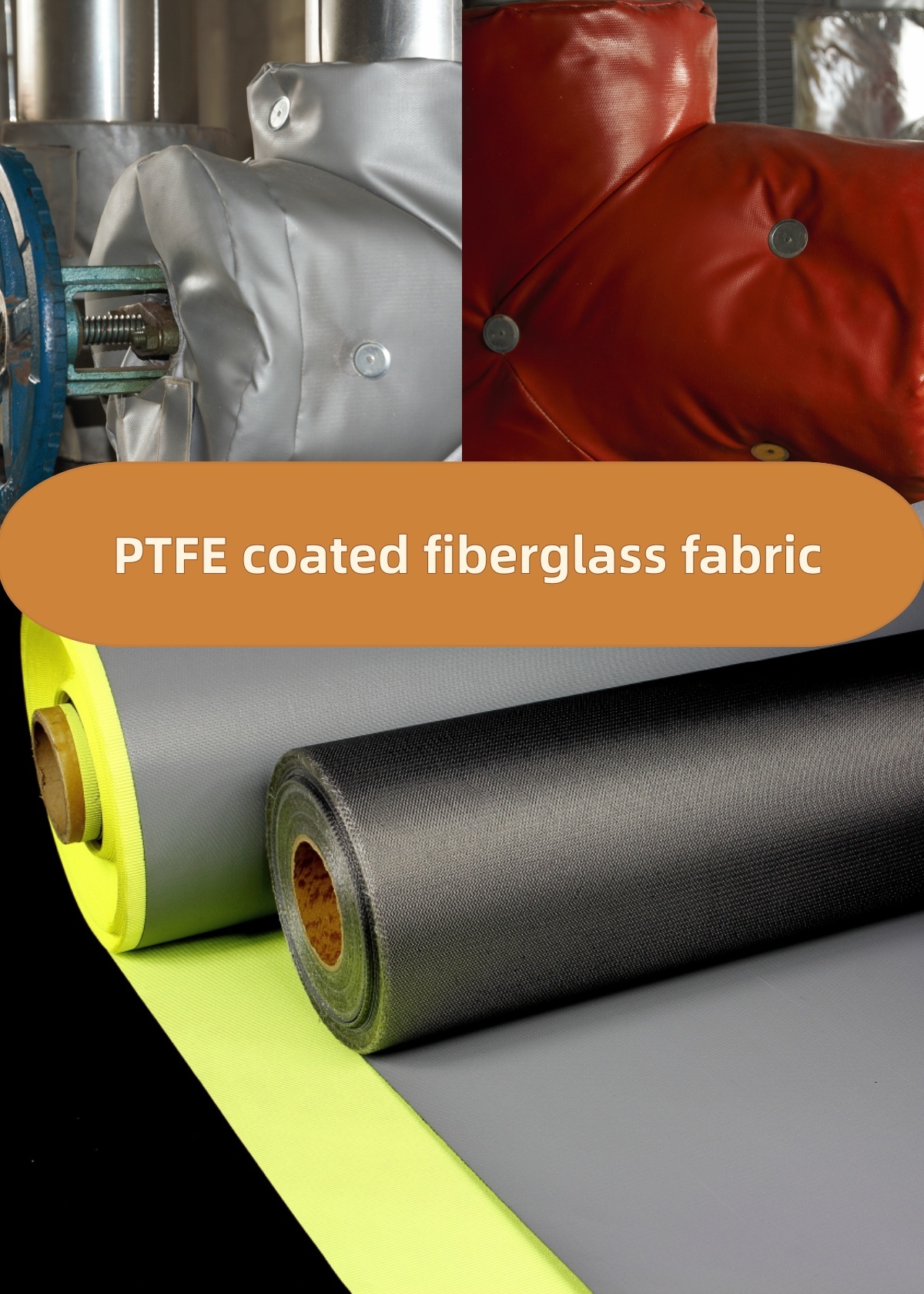

PTFE Coated Fiberglass Fabric use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE fabricin different thickness and widths.



PTFE Coated Fiberglass Fabric applications

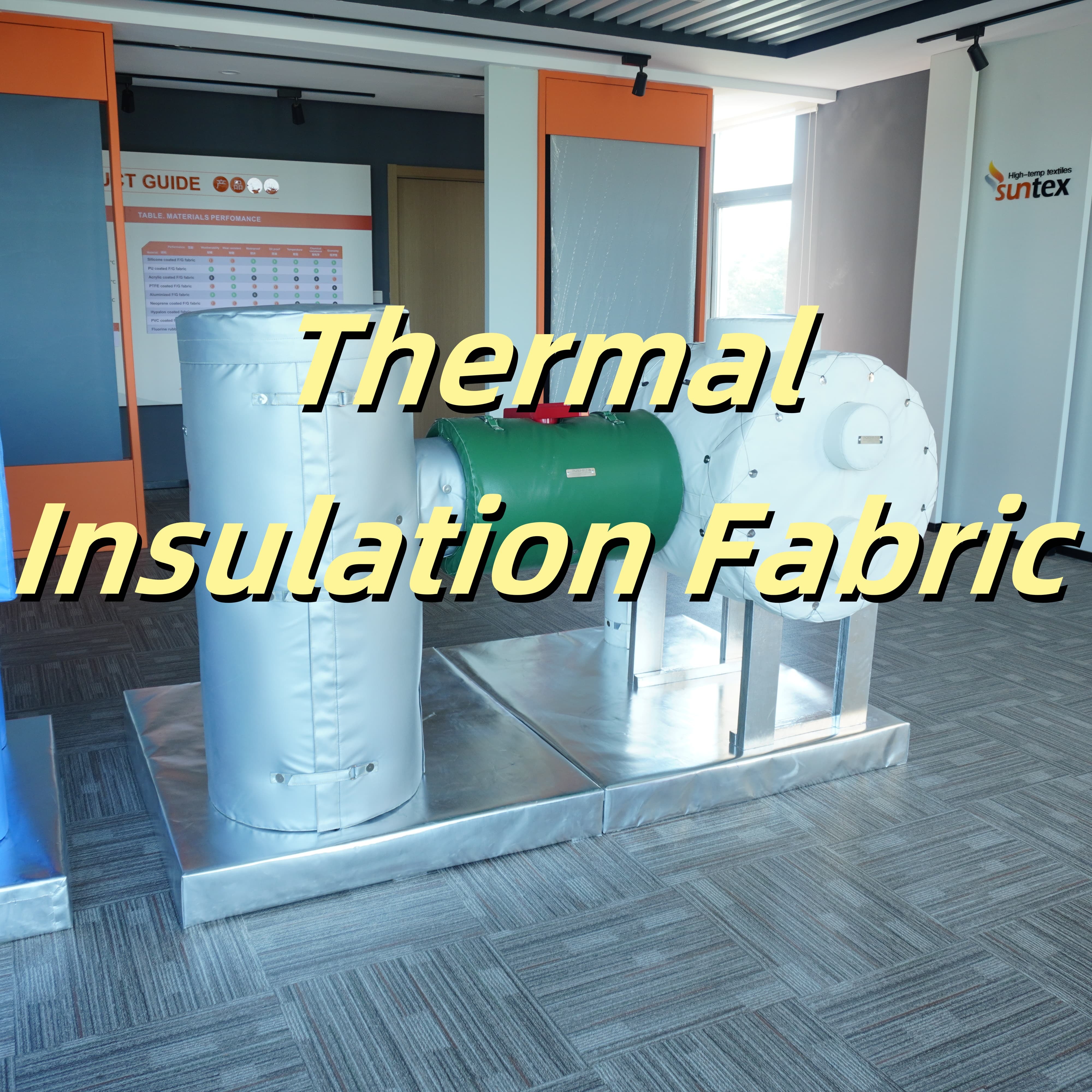

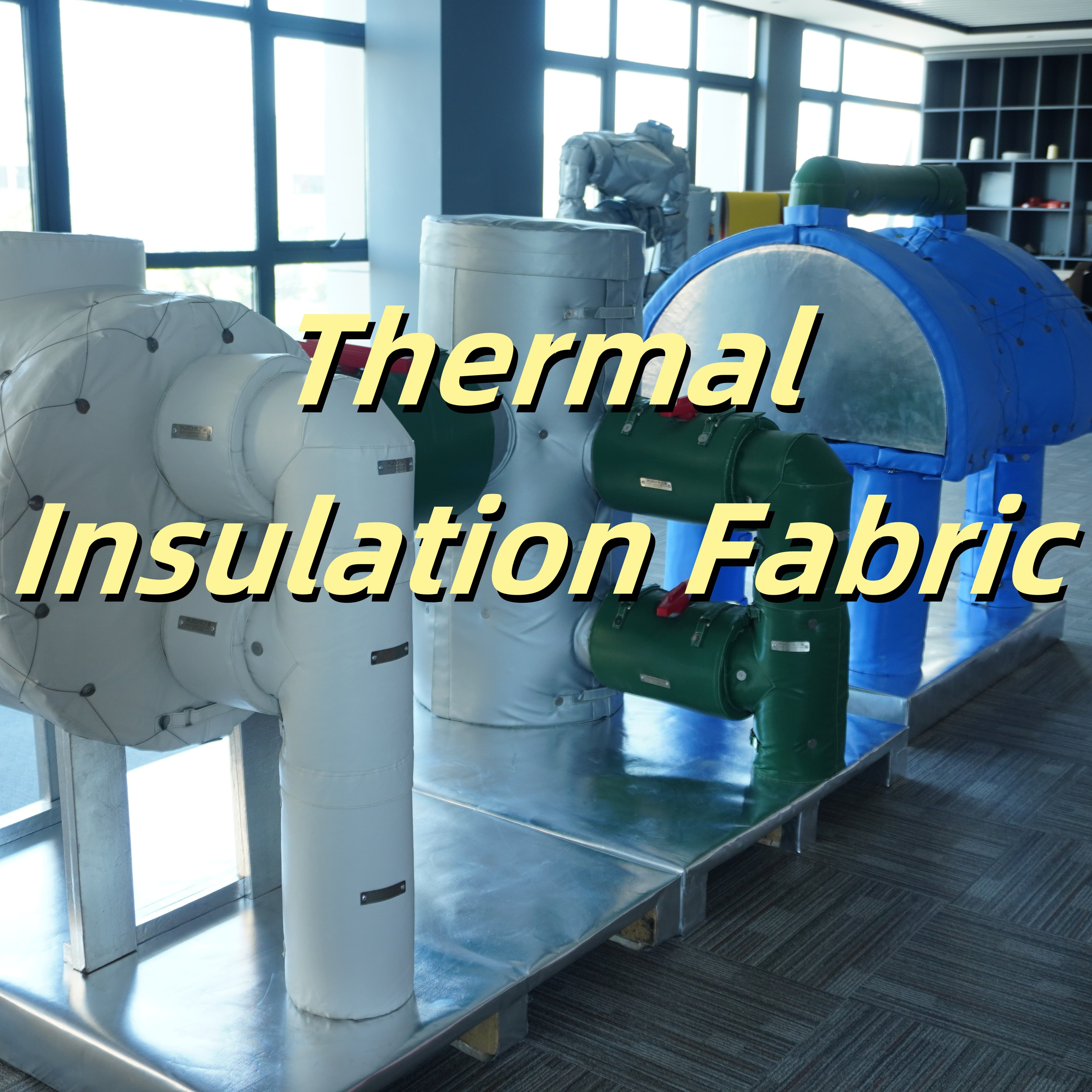

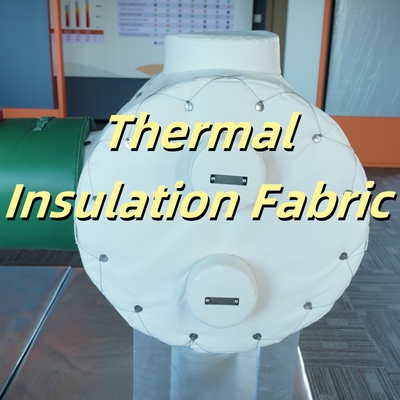

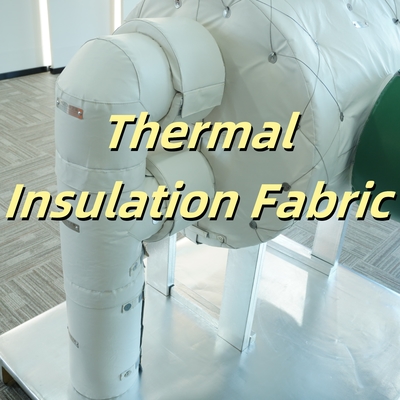

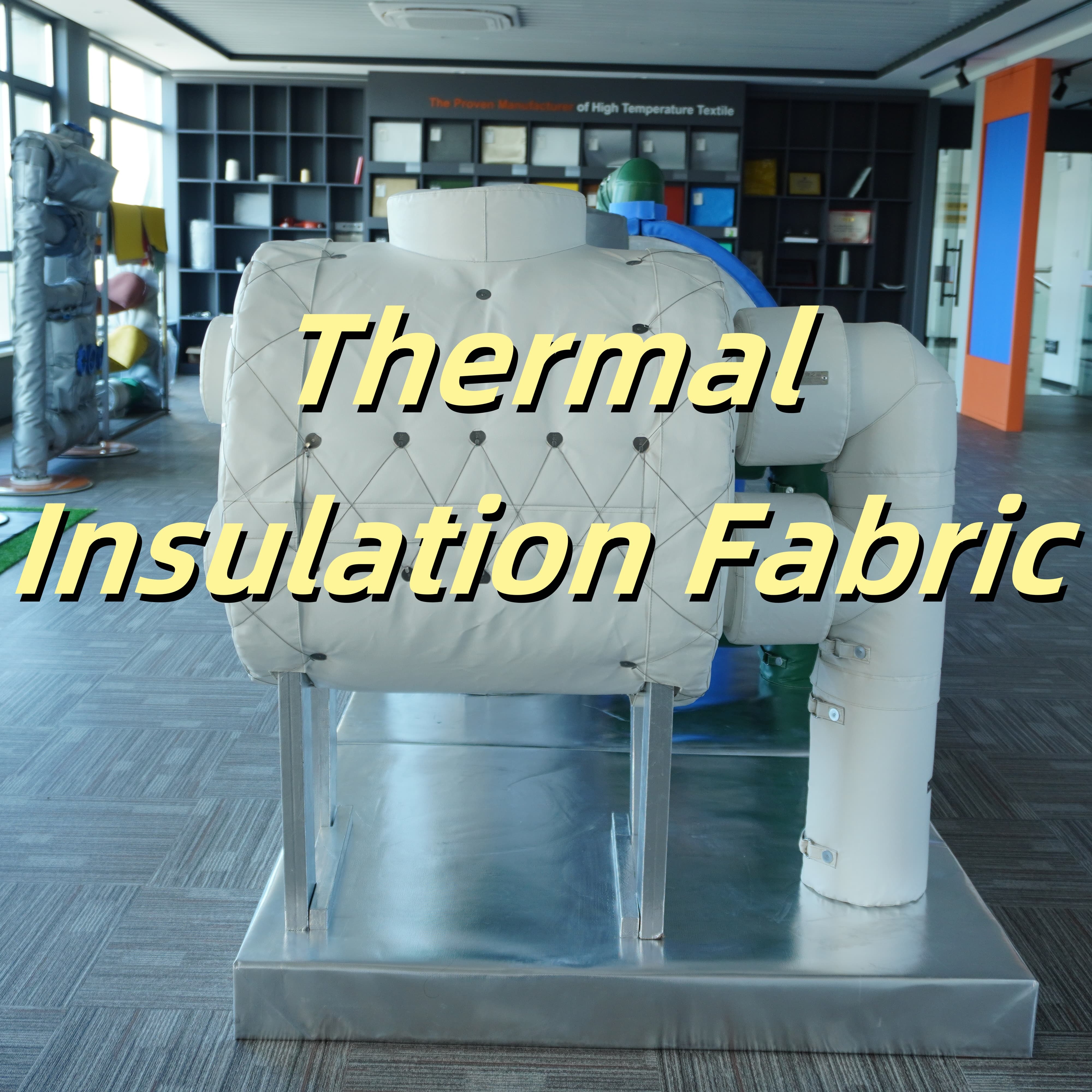

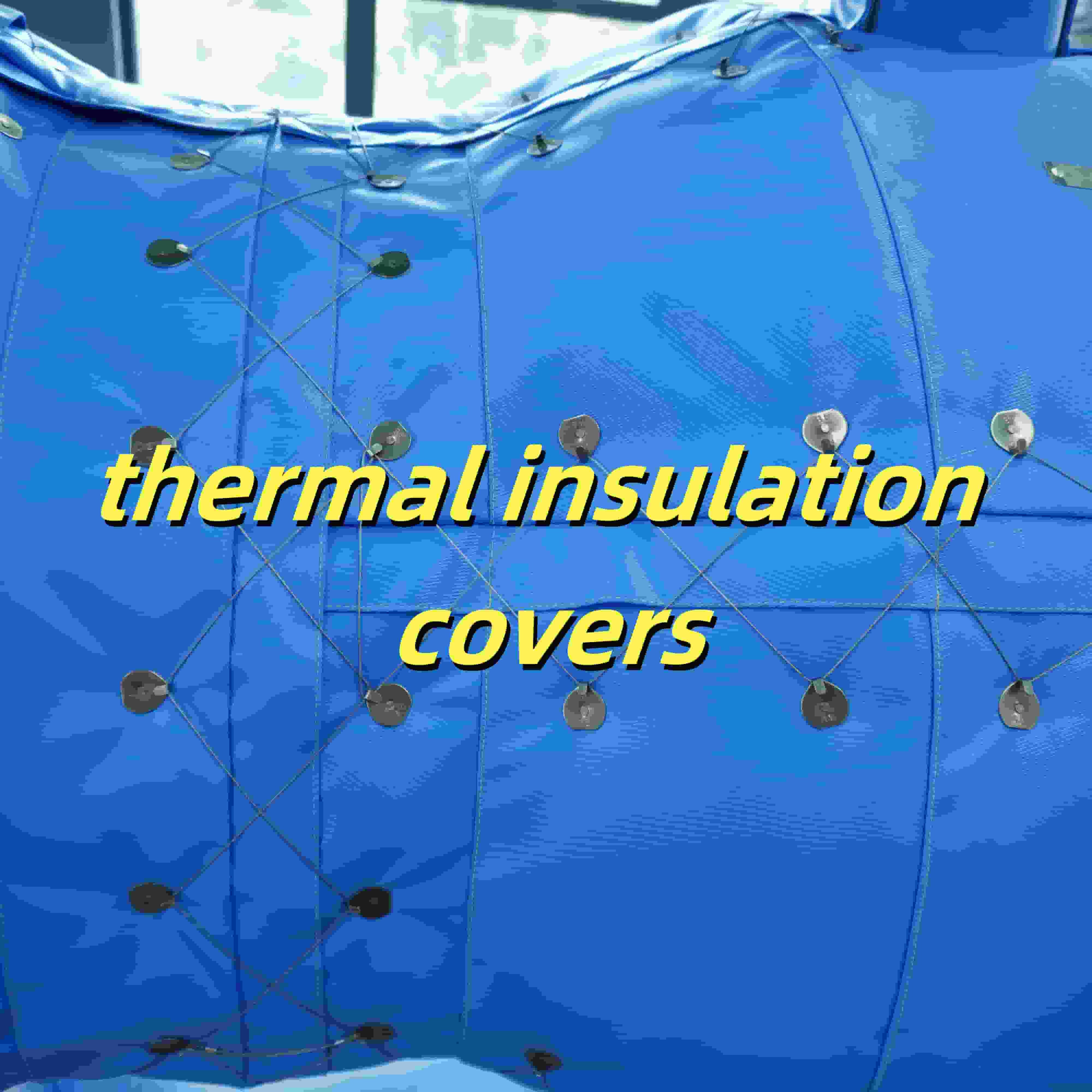

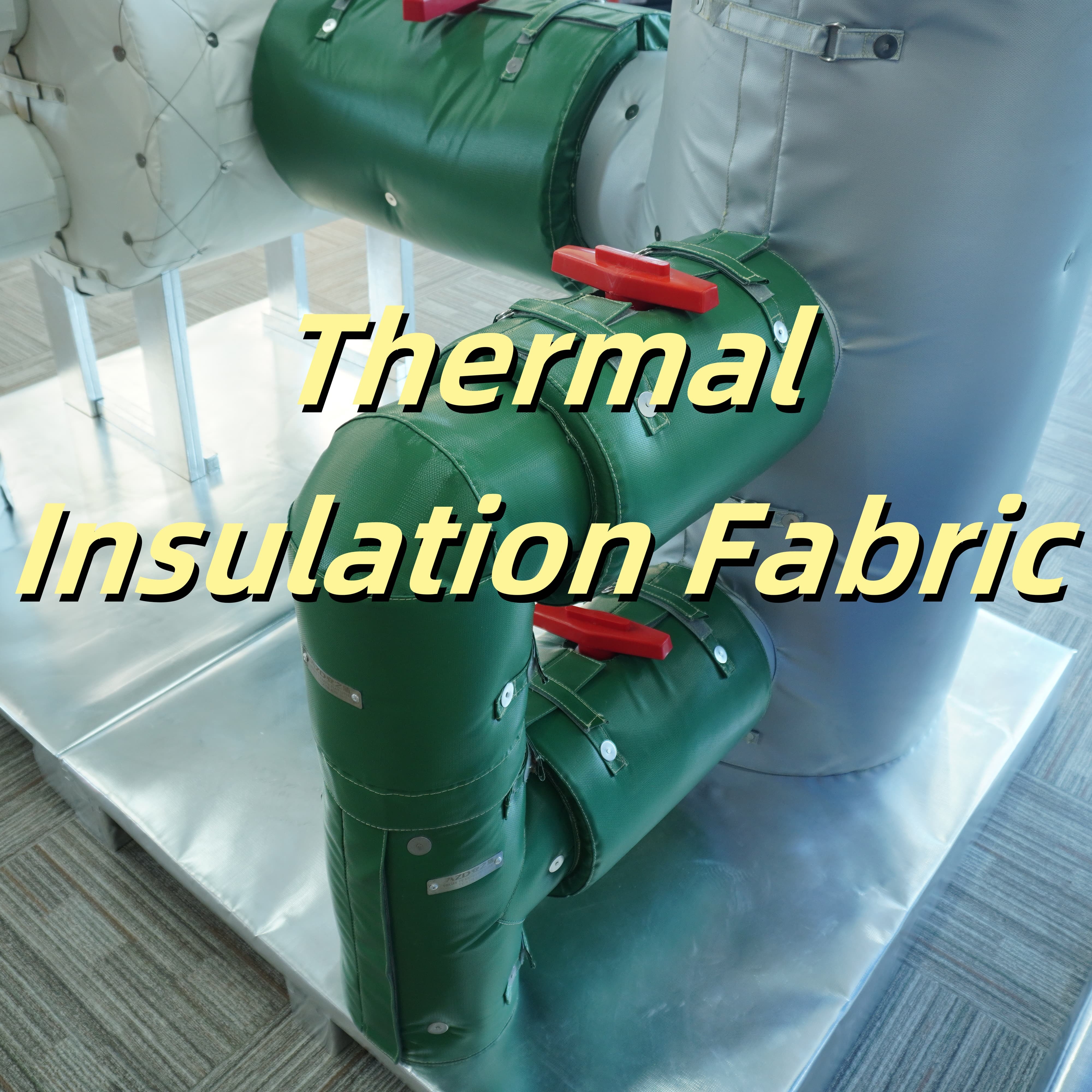

- Thermal insulation jacket, mattress and pad

- Expansion joints and compensators

- Conveying belt



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 136 1﹡0 ECG 37 1/0
Weft EC9 136 1﹡0 ECG 37 1/0
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96






COATED FABRIC Coating style No. PTFE133-8003
Coating PTFE coated on one side
Weight 580 ± 20 g/m2 17 ± 0.6 oz/yd2 ASTM D3776-96
Thickness 0.43± 0.02 mm 0.016 ± 0.0007 inch ASTM D1777-96
Color Grey
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

PTFE coating up to 3300C (6200F)

PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 0

Related Style

PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 1PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 2PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 3PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 4PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 5PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 6PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 7PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 8PTFE Coated Glass Fabric for Custom Thermal Insulation Jacket 9

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
