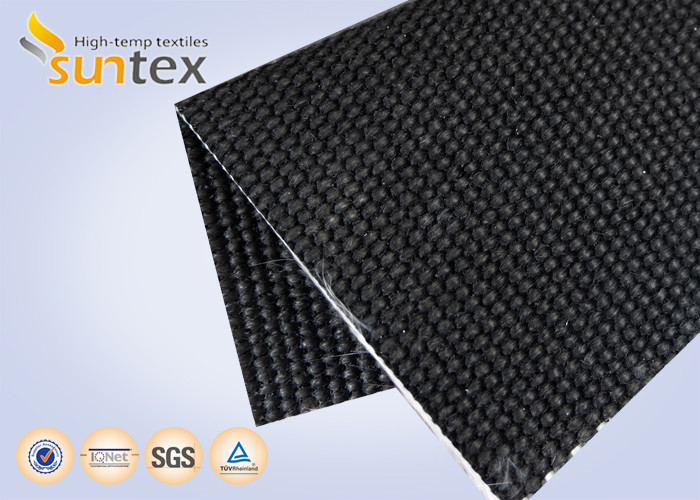

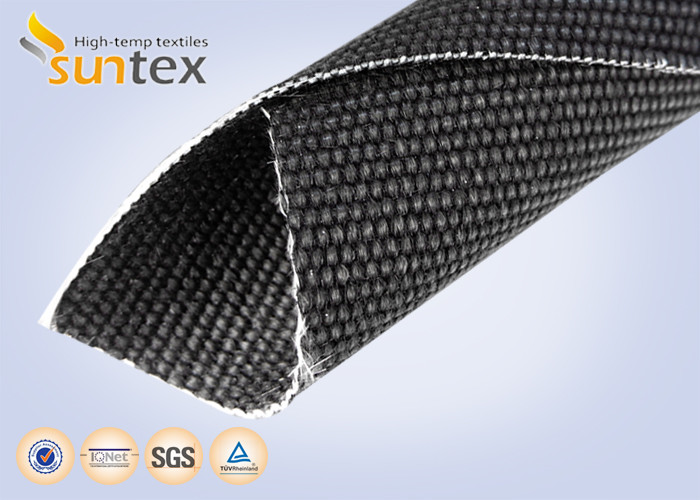

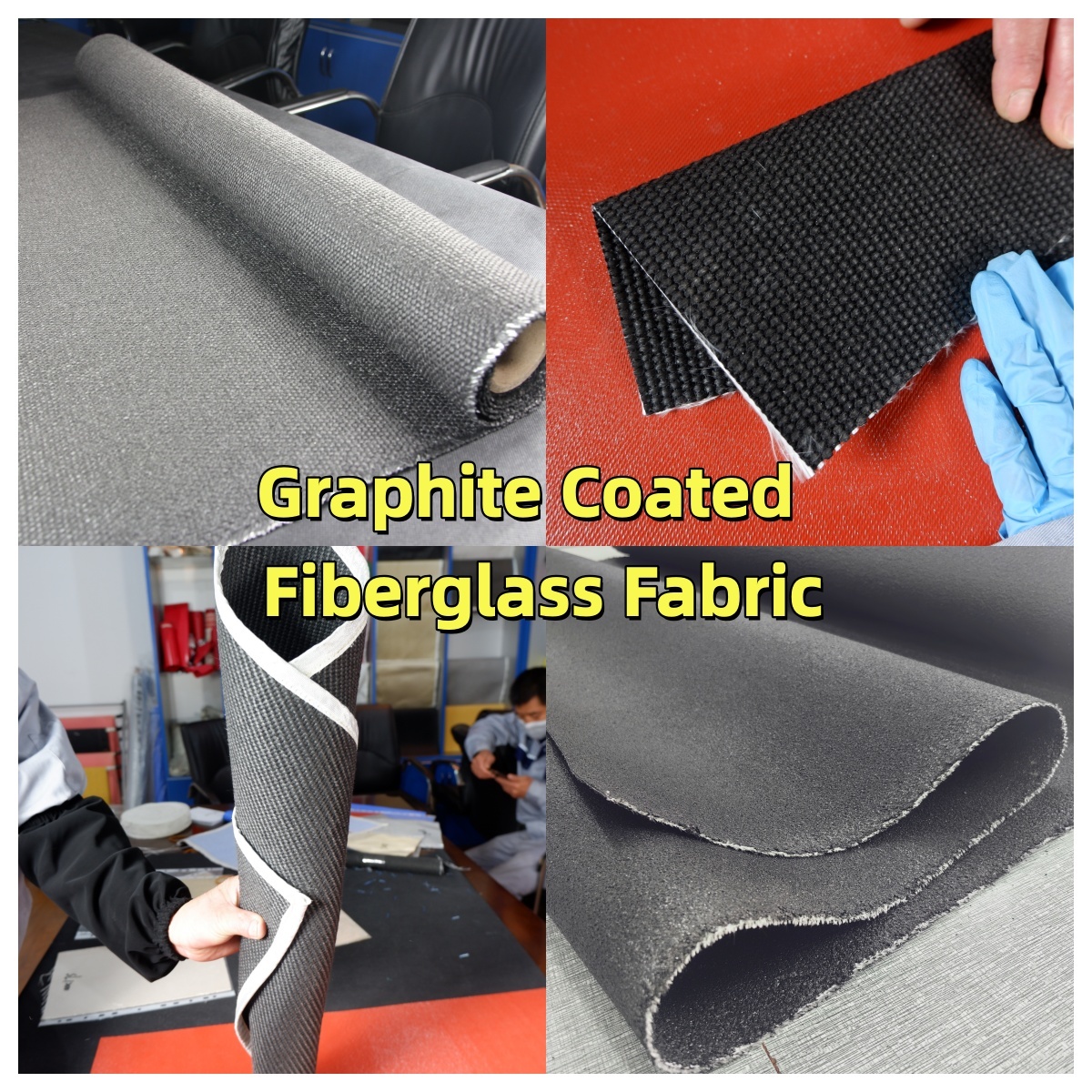

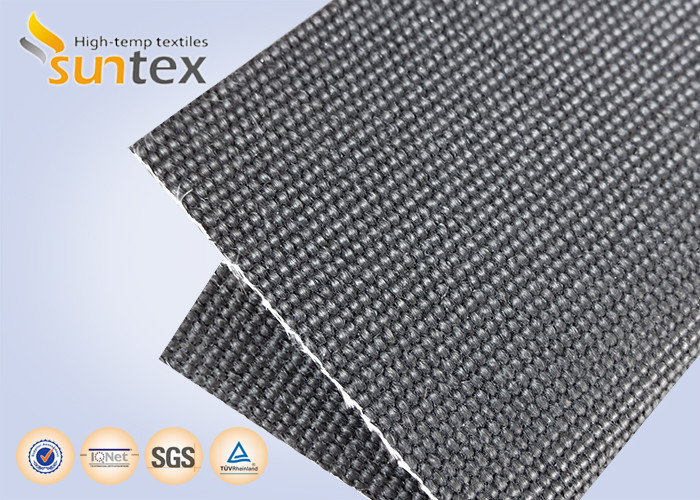

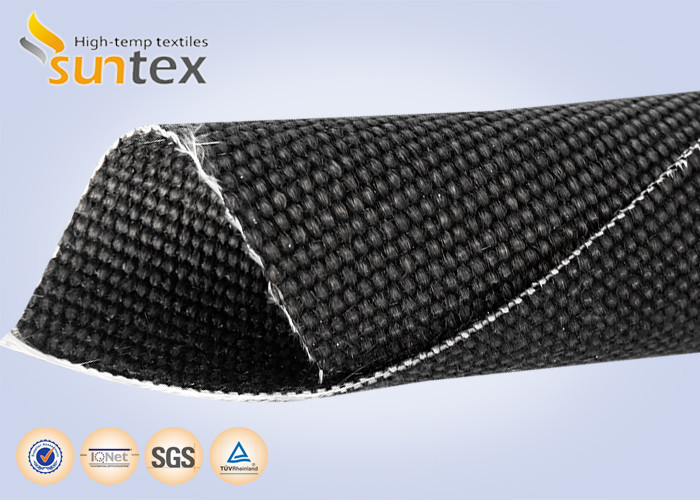

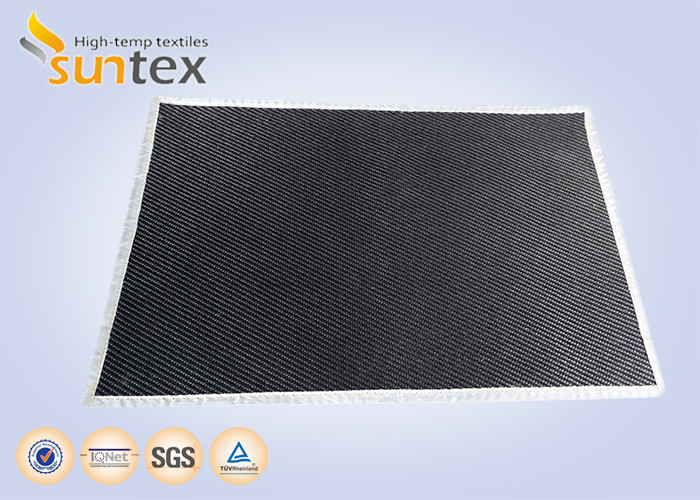

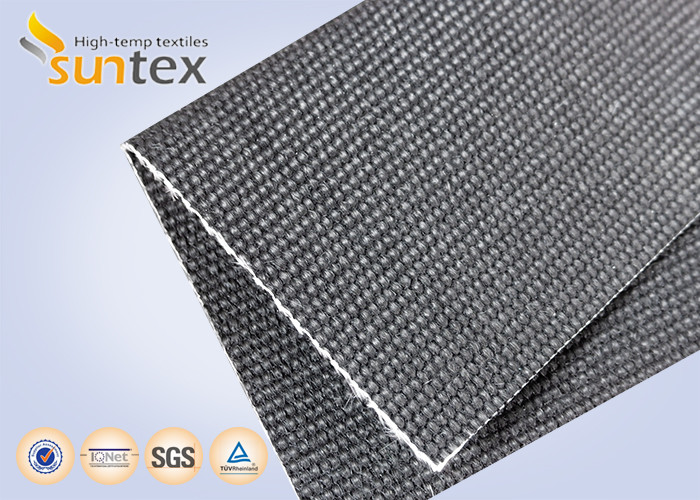

Graphite Coated Fiberglass Fabrics

Place of Origin:China
Brand Name:SUNTEX
Model Number:TGF880-GP235-5001
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

graphite coated fiberglass fabric

,

high temperature fiberglass cloth

,

graphite fiberglass fabric with warranty
Unit Weight: 28.82oz/sqy Fiberglass Cloth
Standard Width: 1000mm 1520mm 2000mm
Standard Thickness: 0.039 Inch
Colour: Black
Fiberglass Cloth Pattern: Plain
Coating Temperature Resistance: 750℃ 1300℉
Basic Fabric Temperature Resistance: 550℃ 1000℉
Coating: Graphite 2 Sides
Product Description

Fireproof Blanket High Temperature Fiberglass Fabric 29OZ Graphite Coated Fire Protection Fabric



Introduce



TGF880-GP235-5001 is a medium weight woven texturized fiberglass fabric coated with a specially formulated graphite and polyurethane solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems.



Fiberglass Cloth​ Advantage



1. Well certified fire resistance.

2. Black color.

3. Easy to be applied, sewn and fabricated.

4. Well abrasion resistance property.

5. Well tensile strength.

6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.



Data



Standard weight 28.82 oz/y2
Standard Thickness 0.039 inch
Standard width 1000mm 1550mm 2000mm
Coating Graphite
Colour Black
Fire resistance Well
Coating temperature resistance Graphite coating 750 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Plain
Yarn warp ETG 8.6
Yarn weft ETG 8.6
Construction warp 25 ± 2 ends/inch
Construction weft 20 ± 1 ends/inch
Fiberglass E-Glass Texturized Woven Fabric



Applications



Fire curtain/door

Welding blanket

Compensator

Removable heat insulation couples

Heat insulation Mattress

Fabric duct



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides

Graphite Coated Fiberglass Fabrics

Graphite Coated Fiberglass Fabrics

Graphite Coated Fiberglass Fabrics

Graphite Coated Fiberglass Fabrics
