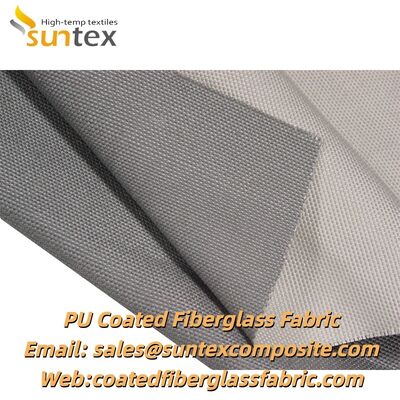

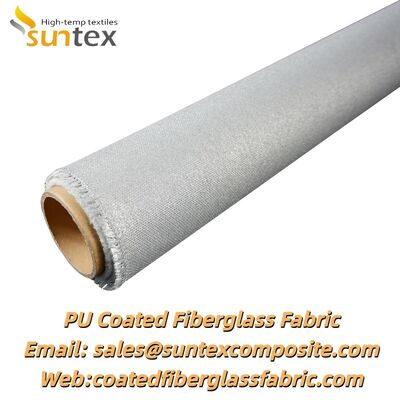

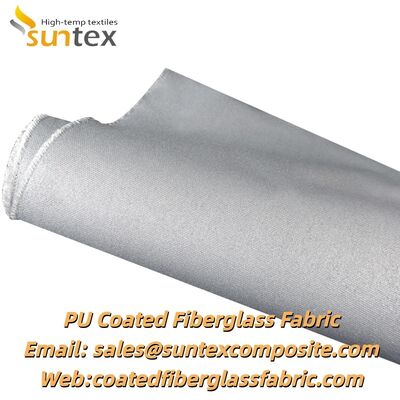

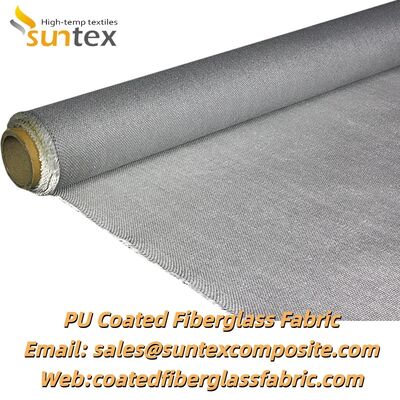

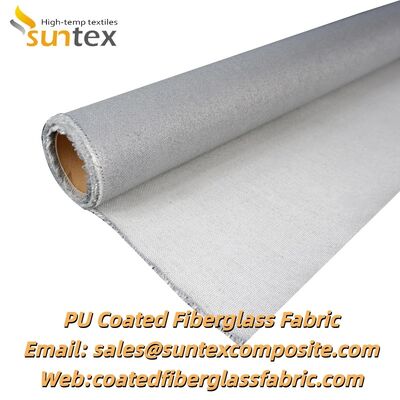

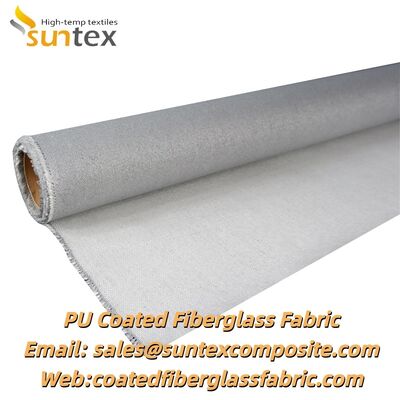

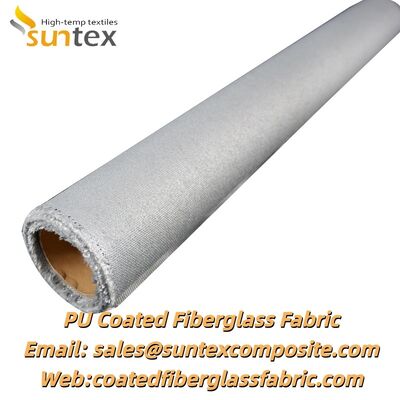

550℃ Temperature Resistance PU Coated Fiberglass Fabric
,Silver Grey Color Fireproof Fiberglass Cloth
,0.016 inch Thickness Heat Resistant Fabric
Fiberglass Insulation Cloth PU Coated Fiberglass Fabric Shade Curtain For Welding 0.4mm Fire Cloth
Introduce
GF430-PU113-2030 is a medium -weight woven fiberglass fabric with a specially formulated aluminum polymer and polyurethane which provides a heat reflecting surface as well as other properties for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems. Other applications are insulation covers where can be used as an attractive alternative to foil faced laminates for less demanding end uses.
Advantage
1. Good certified fire resistance.
2. End users can choose the favority face.
3. Easy to be applied, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Nominal Thickness, unit weight, pattern, all can be customized base on your use method.
Data
| Total weight | 13.53 oz/y2 |
| Standard Thickness | 0.016 inch |
| Standard Width | 1000mm 1520mm |
| Coating | Polyurethane |
| Colour of coating | Silver Grey |
| Fire resistance | Good |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | 4H Satin |
| Fiberglass | C-Glass |
Applications
Fire curtain
Welding blanket
Compensator
Removable heat insulation shell
Heat insulation mat
Fabric duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
