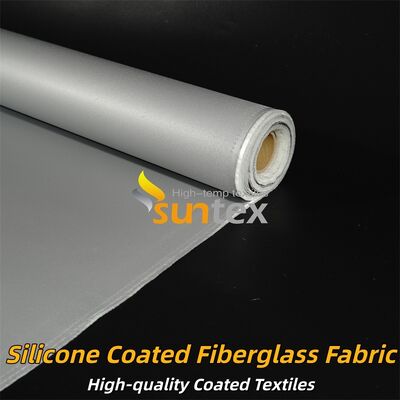

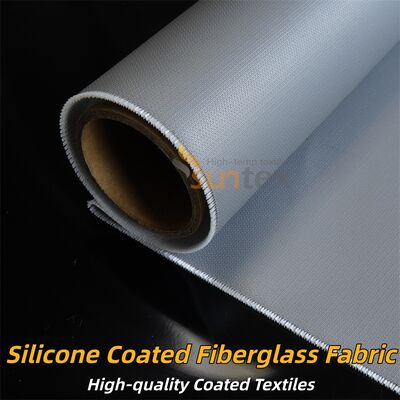

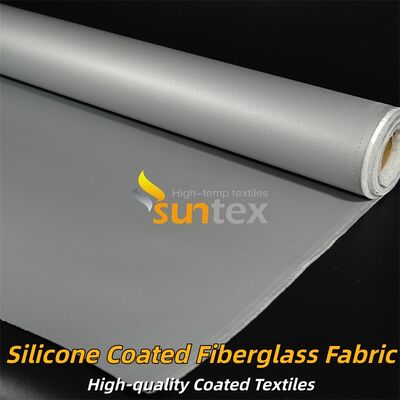

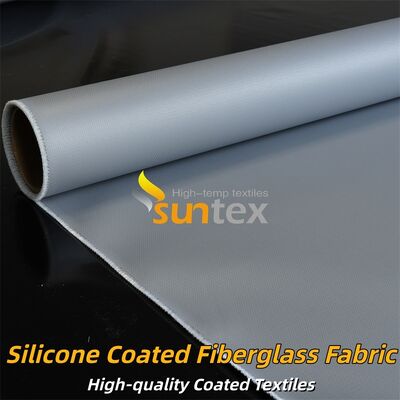

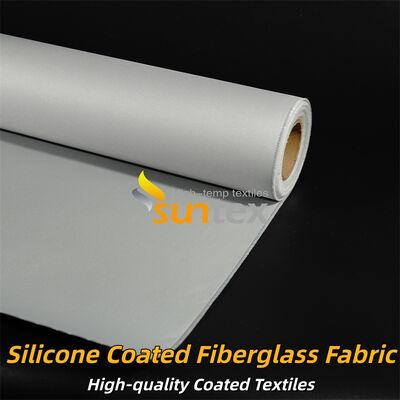

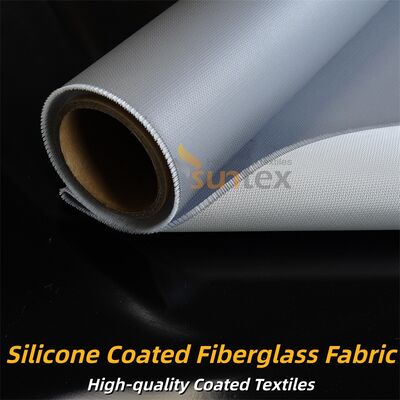

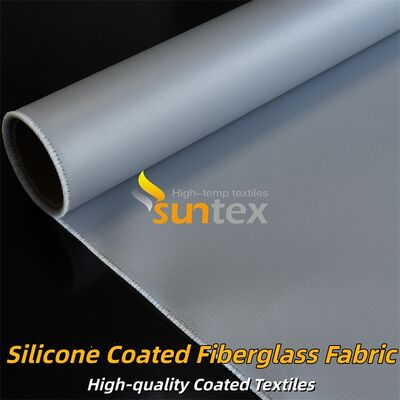

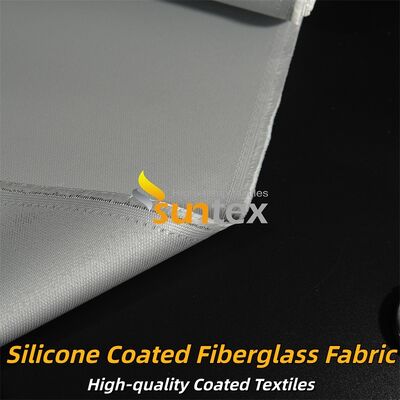

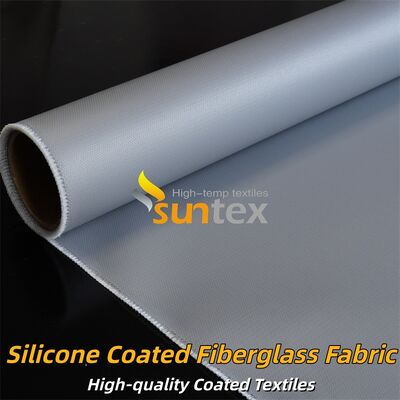

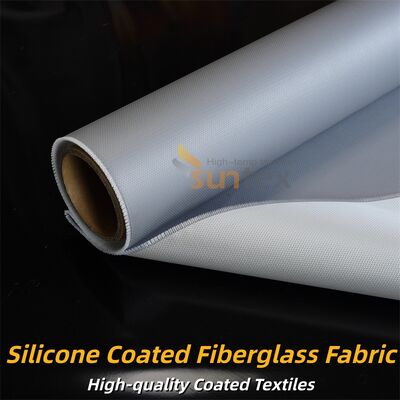

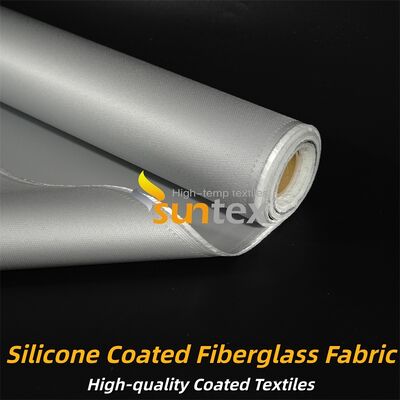

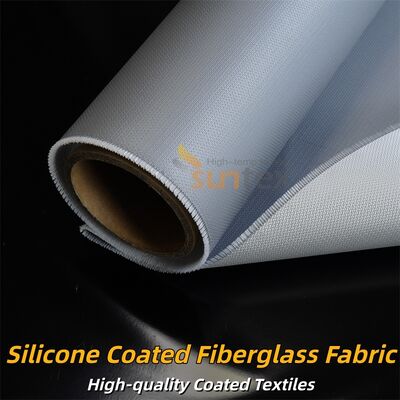

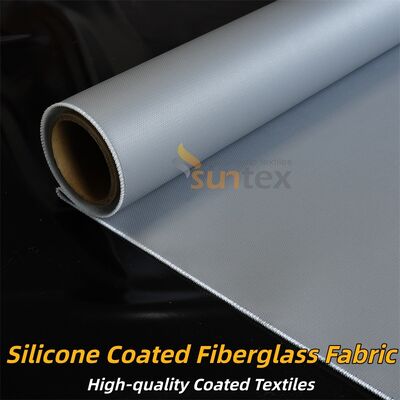

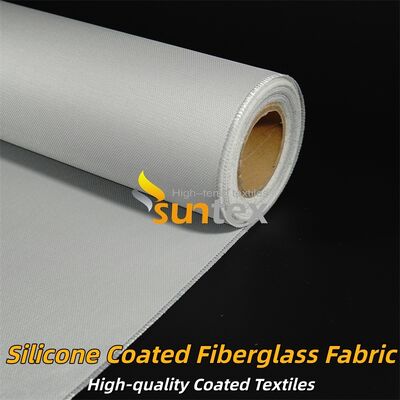

Durable Double Sided Grey Color Silicone Coated Fiberglass Fabric with Temperature Resistance -50°C to 500°C for Industrial Insulation and Fire Retardant Applications

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF200P-SI243-1053
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C,Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

fire retardant silicone fiberglass fabric

,

double sided grey fiberglass insulation

,

industrial silicone coated curtain fabric
Temperature Resistance: -50 C Degree To 500 C Degree
Weight: 400 G/sqm

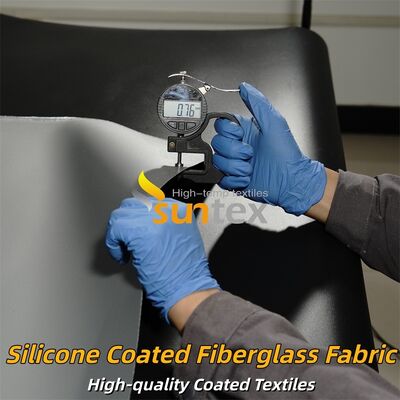

Thickness: 0.3 Mm
Coating: Silicone Rubber
Width: 1 / 1.2 / 1.5 Meter
Alkali Content:: Alkali Free
Color: Grey
Roll Length: 50 M / 100 M
Product Description

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric



Product Description



Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.



    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.



Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI244-1017
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)



GF430P-SI244-1017GF880P-SI133-1046SL600-SI

IMG_1516

Product Application


Packaging & Shipping

Packaging-&-Shipping

-_13



-_15

Exhibition & Example

-_16
