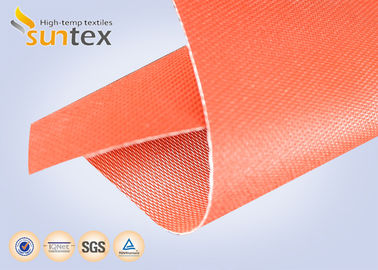

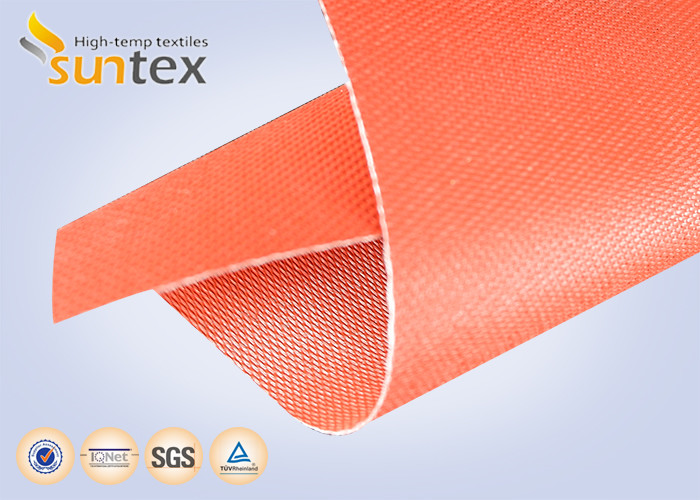

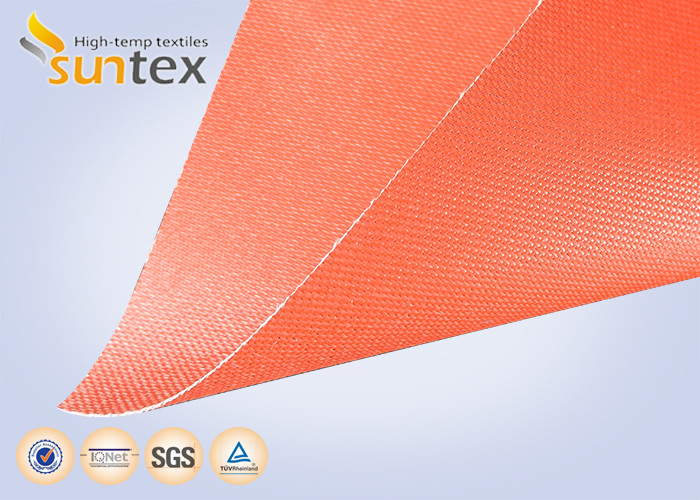

1 Mm Thickness Expansion Joint Cloth Silicone Coated Fiberglass Fabric OEM

  • 1 Mm Thickness Expansion Joint Cloth Silicone Coated Fiberglass Fabric OEM
  • 1 Mm Thickness Expansion Joint Cloth Silicone Coated Fiberglass Fabric OEM
  • 1 Mm Thickness Expansion Joint Cloth Silicone Coated Fiberglass Fabric OEM
Place of Origin China
Brand Name SUNTEX
Model Number GF880-SI244-1155
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Resistance -50 C Degree To 500 C Degree Weight 1080 G/sqm
Thickness 0.9 Mm Coating Silicone Rubber
Width 1.5 Meter / 1.55 Meter Alkali Content Alkali Free
Color Red Roll Length 50 Meter OEM
Origin China
High Light

fabric expansion joint material

,

silicone fiberglass cloth
Leave a Message
Product Description

1 mm Thickness Silicone Coated Fiberglass Fabric Fire Material Red OEM



Description:



Silicone coated fiberglass fabric has quite similar characteristics to those of PTFE coated fiberglass fabric.But they are more flexible,very non-stick,non-slip surface and more tear resistance. These fabric are available coated on one side and both side in red, gray, black etc color available in 0.1mm to 3mm thickness.



Parameter List:



BASE FABRIC Base fabric style No. GF880C
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin
Yarn
Warp EC9 136 1*2 ETG 37 1/2
Weft EC9 136 1*2 ETG 37 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 2 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 33 ± 2 picks/inch ASTM D 3775-96


COATED FABRIC Coating style No. SI244-1155
Coating Silicone rubber coated both sides
Weight 1080 ± 50 g/m2 32 ± 1.4 oz/yd2 ASTM D3776-96
Thickness 0.9 ± 0.05 mm 0.035 ±0.002 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance Silicone coating up to 2500C Glass fiber up to 5500C

4800F

10000F





Typical Applications:



Thermal insulation covers

Fire blanket

FLexible ducts

Air connector



Advantage:



Good heat insulation

Good chemical resistance

Good dielectric properties

Good weather ability

Superior Release Non-stick surface

High temp resistant up to 230째C

Excellent release properties

Superior abrasion resistance

1 Mm Thickness Expansion Joint Cloth Silicone Coated Fiberglass Fabric OEM 0
