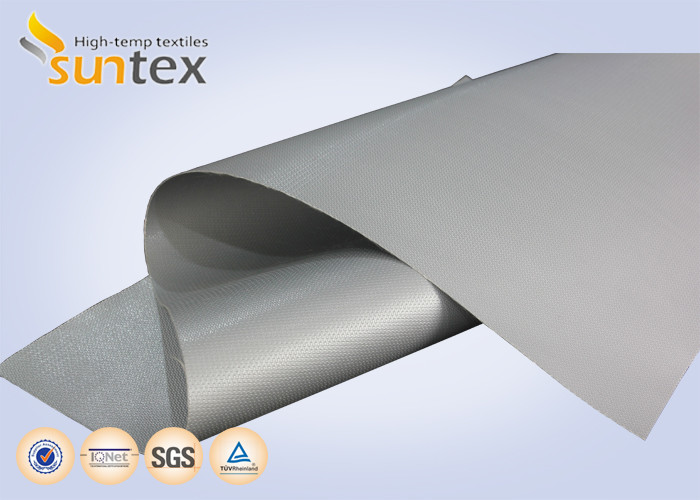

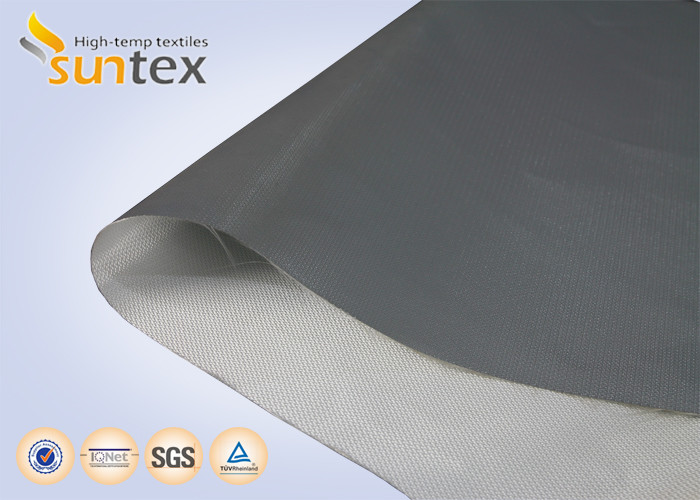

Silicone Coated Glass Fiber Fabric 0.4 Mm Cold And Heat Resistant Material

Silicone Coated Glass Fiber Fabric 0.4 Mm Cold And Heat Resistant Material
Silicone Coated Glass Fiber Fabric 0.4 Mm Cold And Heat Resistant Material
video play

Large Image :  Silicone Coated Glass Fiber Fabric 0.4 Mm Cold And Heat Resistant Material

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF430P-SI123-1008
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Weight: 510 G/sqm Thickness: 0.44 Mm
Color: Silver Grey Width: 1m/1.5m/1.52m/1.55m
Coating: Silicon Rubber On One Side Temperature Resistant: From -50℃ To 550℃
Roll Length: 50 Meter Row Material: Fiberglass
Application: Thermal Insulation Jacket
High Light:

silicone rubber coated fiberglass cloth

,

silicone impregnated fiberglass fabric

Silicone Coated Glass Fiber Fabric 0.4 Mm Cold And Heat Resistant Material

Description:

Fiberglass Fabrics and Textiles are manufactured from E-glass yarns with a continuous operating temperature of 1000°F • 538°C. Available in a variety of configurations including woven cloth, woven tape, sleeving and rope, GF430P-SI123-1008 chemical resistant textiles have high dielectric strength and maintain a large measure of tensile strength at elevated temperatures.

In addition to a range of fiberglass textiles, Mid-Mountain offers high-temperature resistant fiberglass fabrics specifically used in the insulation industry for removable/reusable insulation blankets and pads. With excellent thermal insulation properties, these fiberglass fabrics are heat-treated to reduce fraying during fabrication, have low smoke emission, and excellent abrasion resistance.

Parameter List:


BASE FABRICBase fabric style No. GF430P
 (metric)(English)Test methods
Weave4H SatinCrowfoot
Yarn
WarpEC9 68 1﹡2ECG 75 1/2
WeftEC9 68 1﹡2ECG 75 1/2
Construction
Warp18 ± 1 ends/cm48 ± 3 ends/inchASTM D 3775-96
Weft12.6 ± 1 picks/cm32 ± 3 picks/inchASTM D 3775-96

COATED FABRICCoating style No. SI123-1008
CoatingSilicone rubber 1 side
Weight510 ± 25 g/m215.0 ± 0.74 oz/yd2ASTM D3776-96
Thickness0.43± 0.02 mm0.016 ± 0.0007 inchASTM D1777-96
Colorsilver grey
Fire resistanceFlame retardant
Temp resistance

Glass fabric up to 5500C (10000F)
Silicone rubber coating up to 2500C (4800F)



Main Application:



Welding Blankets, Curtains, and Pads
Diesel Engine Exhaust Covers
Fire-resistant doors
Furnace Insulation
Turbine Insulation
Thermocouple Insulation
Furnace pads and separators


Advantage:


Low Thermal Conductivity
Chemical Stability and Oxidation Resistance
Maintains Flexibility and Strength during use
Resists Molten Metals
High Dielectric Strength
Low Smoke Emission
