| Weight: | 220g/sqm | Width: | 1000mm 1520mm 1550m 2000mm |
|---|---|---|---|
| Thickness: | 0.21mm | Color: | Red |
| Weave: | Plain | Coating Temperature Resistance: | 180℃ |
| Basic Fabric Temperature Resistance: | 550℃ | Coated: | PU Both Sides |
| Fiberglass: | E-glass | ||
| High Light: | coated fiberglass fabric,fire retardant cloth |
||

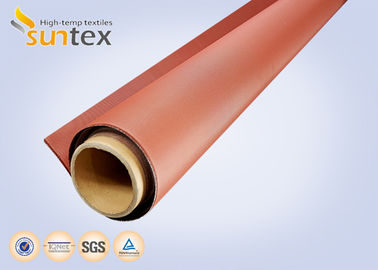

High Temperature Cloth PU Coated Fiberglass Fabric Fire Barrier 0.21mm Red Fire Retardant Fabric 220g
Introduce
GF200P-PU214-2003 is a light-weight fiberglass fabric with a specially formulated polyurethane polymer. It’s for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.
Advantage
1.Good certified fire resistance.
2.Various color available.
3.Easy to be used, sewn and fabricated.
4.Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
| Weight | 220 g/m2 |
| Thickness | 0.21 mm |
| Width | 1000mm 1520mm 1550mm 2000mm |
| Coated | PU |
| Color | Red |
| Fire resistance | Good |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Weave | Plain |
| Yarn warp | EC9 68 1*0 |
| Yarn weft | EC9 68 1*0 |
| Construction warp | 18 ends/cm |
| Construction weft | 12.6 ends/cm |
| Fiberglass | E-Glass |
Applications
Smoke curtain
Fire blanket
Expansion joint
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
