Insulation PU Coated Fiberglass Fabric Shade Curtain For Welding 0.4mm Fire Cloth
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Unit Weight | 13.53 Oz/sq.y | Standard Width | 1000mm 1520mm |
|---|---|---|---|
| Standard Thickness | 0.016 Inch | Color | Silver Grey |
| Coating Temperature Resistance | 180℃ 350℉ | Basic Fabric Temperature Resistance | 550℃ 1000℉ |
| Coating | Polyurethane One Side | ||
| High Light | coated fiberglass fabric,fireproof fiberglass cloth |
||
Product Description

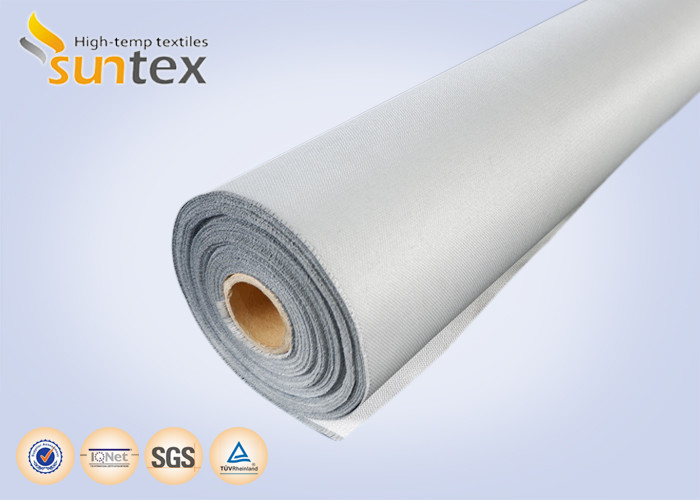

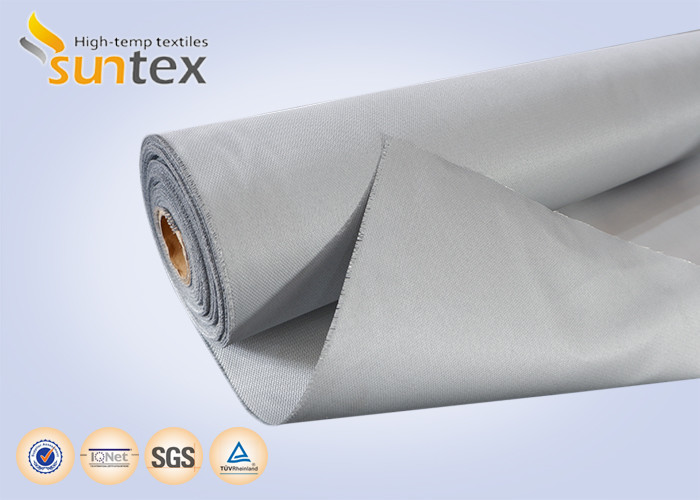

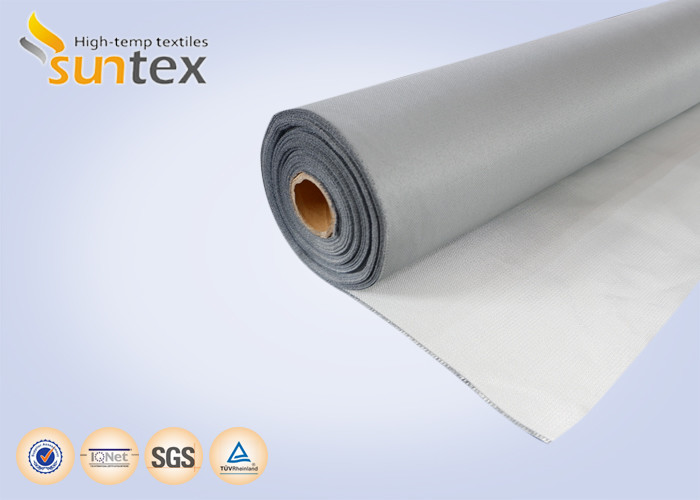

Fiberglass Insulation Cloth PU Coated Fiberglass Fabric Shade Curtain For Welding 0.4mm Fire Cloth
Introduce
GF430-PU113-2030 is a medium -weight woven fiberglass fabric with a specially formulated aluminum polymer and polyurethane which provides a heat reflecting surface as well as other properties for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems. Other applications are insulation covers where can be used as an attractive alternative to foil faced laminates for less demanding end uses.
Advantage
1. Good certified fire resistance.
2. End users can choose the favority face.
3. Easy to be applied, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Nominal Thickness, unit weight, pattern, all can be customized base on your use method.
Data
| Total weight | 13.53 oz/y2 |
| Standard Thickness | 0.016 inch |
| Standard Width | 1000mm 1520mm |
| Coating | Polyurethane |
| Colour of coating | Silver Grey |
| Fire resistance | Good |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | 4H Satin |
| Fiberglass | C-Glass |
Applications
Fire curtain
Welding blanket
Compensator
Removable heat insulation shell
Heat insulation mat
Fabric duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
