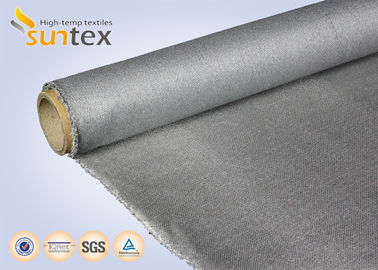

High Temperature Resistant PU Coated Fiberglass Fabric 0.7mm For Fireproof Blanket
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWeight | 690g/sqm | Width | 1000mm 1200mm 1520mm 2000mm |
---|---|---|---|
Thickness | 0.7mm | Color | Silver Grey |
Weave | 8H Satin | Temperature Resistance /Working Temperature | 750℃ 1400℉ |
Coated | PU One Side | Fiberglass | E-glass Stainless Steel Wire Reinforced Fiberglass |
Highlight | coated fiberglass fabric,fire retardant cloth |
High Temperature Resistant Fabrics PU Coated Fiberglass Fabric 0.7mm Fiberglass Fireproof Blanket
Introduce
GF660S-PU113-2040 is a S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.
Advantage
1. Good certified fire resistance.
2. Silver grey color. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
Weight | 690 g/m2 |
Thickness | 0.7 mm |
Width | 1000mm 1200mm 1520mm 2000mm |
Coated | PU |
Color | Silver Grey |
Fire resistance | Good |
Working temperature | Basic fabric 550 ℃, PU coating 180 ℃. |
Weave | 8H Satin |
Yarn warp | EC9 33 tex 2*2 |
Yarn weft | EC9 33 tex 2*2 |
Construction warp | 16.5±1 ends/cm |
Construction weft | 14.5±1 ends/cm |
Fiberglass | E-glass Stainless Steel Wire Reinforced Fiberglass |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation cover
Thermal insulation pad
Air duct
Related Products
Style No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/yd2 | mm | inch | |||
GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
