Product Details:
Payment & Shipping Terms:
|
| Weight/Weight Per Sqm/square/Unit Weight/ Total Weight/ Nominal Weight: | 460g/sqm | Standard Width / Width / Nominal Width: | 1000mm 1520mm 1550m 2000m |
|---|---|---|---|
| Nominal Thickness / Standard Thickness / Thickness: | 0.41mm | Fiberglass Fabric Color/Colour: | Silver Grey |
| Temperature Resistance: | 550℃ 1000℉ | Coated: | PU Two Sides |
| High Light: | coated fiberglass fabric,fire retardant cloth |
||

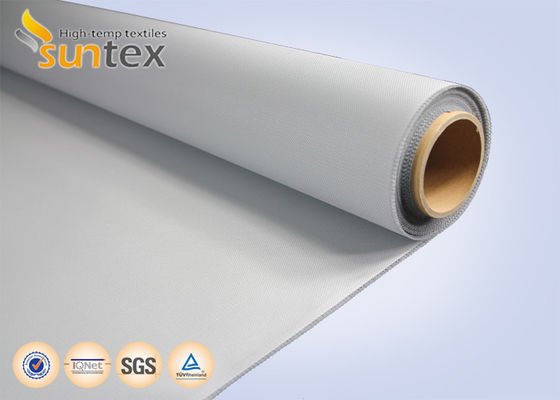

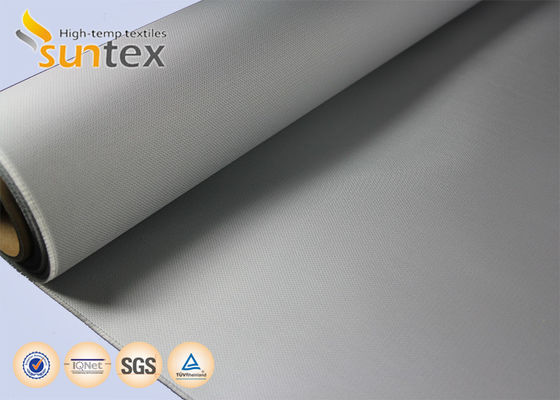

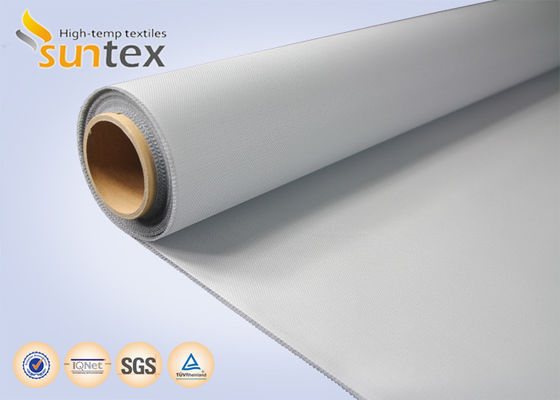

Fiberglass Cloth Roll PU Coating Fabric For Welding Fiberglass Fabric 0.41mm Fire Retardant Fabric M0
Introduce
GF430P-PU213-2005 is a medium weight E-glass fabric coated with a specially formulated polyurethane polymer. The fabric applied for fire doors and smoke curtains.
Fiberglass FabricAdvantage
1. Well certified fire resistance.
2. End users can choose the favority face.
3. Easy to be applied/holed, sewn and fabricated.
4. Well abrasion resistance property.
5. Well tensile strength.
6. Nominal Thickness, weight, pattern, all can be customized base on your use method.
Data
| Fiberglass Fabric Unit Weight | 13.5 oz/y2 |
| Standard Thickness | 0.016 inch |
| Standard Width | 1000mm 1520mm |
| Coating | Polyurethane |
| Color | Silver Grey |
| Fire resistance | Perfect |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | 4H Satin |
| Fiberglass | E-Glass |
Fiberglass Fabric Applications
Fire curtain
Welding blanket
Flexible joint
Removable thermal insulation kit
Thermal insulation pad
Fabric ducts
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
