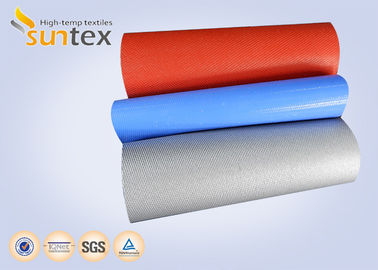

Medium Duty Safety Blanket Thermal Reflective Fabric Fire / Flame / Spark Resistant

Medium Duty Safety Blanket Thermal Reflective Fabric Fire / Flame / Spark Resistant
Medium Duty Safety Blanket Thermal Reflective Fabric Fire / Flame / Spark Resistant Medium Duty Safety Blanket Thermal Reflective Fabric Fire / Flame / Spark Resistant

Large Image :  Medium Duty Safety Blanket Thermal Reflective Fabric Fire / Flame / Spark Resistant

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF430P-SI233-1015
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Weight: 560 G/M2 Thickness: 0.42 Mm
Color: Silver Grey Yarn Tape: E-glass
Width: 1.5 Meter Coating: Grey Silicon Rubber On Two Side
Standing Temperature: From -50℃ To 550℃ Origin: China
Roll Length: 50 Meter Welding Duty: Medium
High Light:

silicone rubber coated fiberglass cloth

,

silicone impregnated fiberglass fabric

Medium Duty Safety Blanket Fabrics Fire/ Flame/ Spark Resistant Material



Description:



Silicone Coated Fiberglass fabric Core-Tex silicone fiberglass fabric takes high temperature, strength, and corrosion resistance fiberglass fabric as the basic fabric, and compounded by silicone rubber after the special craft (impregnating or rolling).Silicone fiberglass fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.



Parameter List:



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot

COATED FABRIC Coating style No. SI233-1015
Coating Silicone rubber 2 sides
Weight 510 ± 25 g/m2 15 ± 0.74 oz/yd2 ASTM E84-12
Thickness 0.40± 0.02 mm 0.016 ± 0.0007 inch ASTM E84-12
Color grey
Fire resistance M0
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)





Application:



Insulation jackets, mattress and pad

Fabric expansion joints

Fabric ductwork connector

Fire doors & Fire curtains

Welding/fire blankets

Other fire control systems



Features:



Excellent non-stick properties

Water and fire protection

Good Chemical Resistance

Superior Flex and Abrasion Resistance

Chinese manufacturer price
