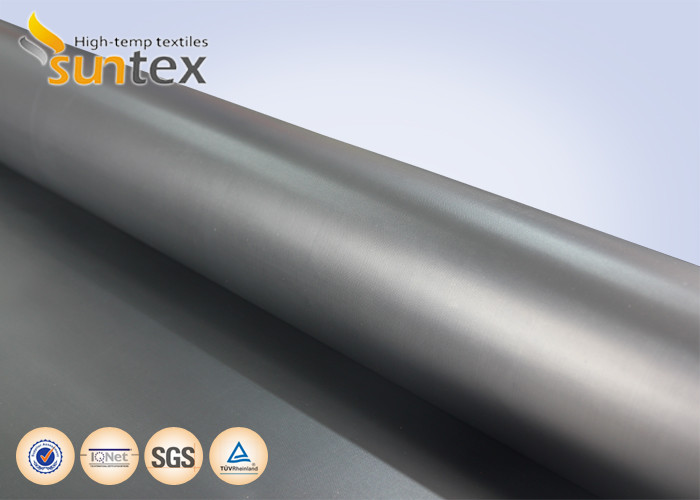

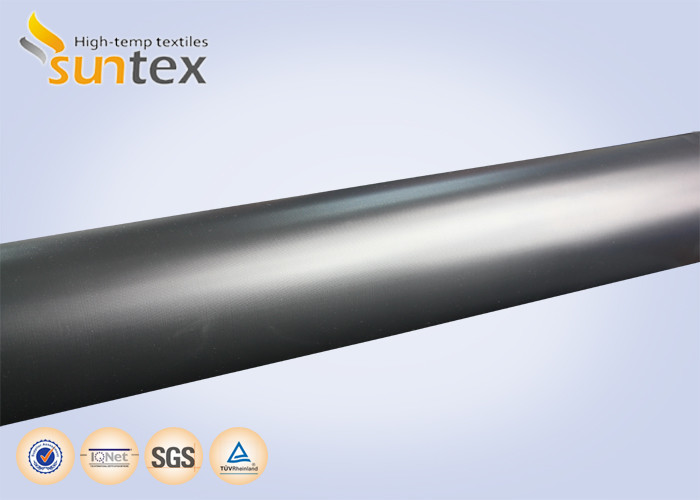

Black Neoprene Coated Glass Cloth For Flexible Connector Weather Proofing Material

Black Neoprene Coated Glass Cloth For Flexible Connector Weather Proofing Material
Black Neoprene Coated Glass Cloth For Flexible Connector Weather Proofing Material
video play

Large Image :  Black Neoprene Coated Glass Cloth For Flexible Connector Weather Proofing Material

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF200P-NE265-4001
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Temperature Resistance: From -50 C To 550 C Weight: 500 G/M2
Thickness: 0.35 Mm Or OEM Coating: Neoprene
Width: 1.5m Color: Black
Roll Length: 50 Meter Origin: China
Main Market: Mid-east / Europe Application: Air Condition System
High Light:

neoprene coated fiberglass

,

silicone impregnated fiberglass cloth

Neoprene Coated Fiberglass Cloth For Flexible Connector Weather Proofing Material



Description:



Neoprene coated fabric is fiberglass cloth coated with neoprene on the surface to meet customer demands. It's composite material with retardant and multiple applications. It has high tensile stength, better resistance to heat, light, aging and oil compared to natural rubber, SBR and BR. With strong resistance to flammability and excellent resistance to water, along with its high chemical stability, neoprene coated fabric is used extensively in the field of elastomers.



GF200P-NE265-4001 is a light-weight woven fiberglass fabric with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of flexible connector, removable insulation pads, jacket and mattresses. The material is soft and pliable and easy to sew.



Parameter List:



BASE FABRIC Base fabric style No. GF200P
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp EC9 68 1*0 ECG 75 1/0
Weft EC9 68 1*0 ECG 75 1/0
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch






COATED FABRIC Coating style No. NE265-4001
Coating Neoprene rubber, one side
Weight 500 ± 30 g/m2 14.7 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.33 ± 0.03 mm 0.013 ± 0.0011 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5400C (10000F)

Neoprene rubber coating up to 1500C (3600F)



Typical Applications:



- Flexible ductwork connector;
- Welding blankets;
- Heat shield and containment;
- Other fire control systems.



Advantage:



Good resistance to ageing.

Good weather resistance.

Soft, easy to cut and sewing

Chinese manufacturer price

Good chemical resistance

Good abrasion resistance

Black Neoprene Coated Glass Cloth For Flexible Connector Weather Proofing Material 0
