Product Details:
Payment & Shipping Terms:
|
| Temperature Resistance: | From -50 C Degree To 550 C Degree | Weight: | 600 G/M2 |
|---|---|---|---|
| Thickness: | 0.45 Mm | Coating: | Neoprene On Both Side |
| Width: | 1.5m Or Cut To Tape | Color: | Black |
| Roll Length: | 50 Meter | Application: | Flexible Duct Connector |
| Market: | Mid-east | ||
| High Light: | neoprene coated fiberglass,silicone impregnated fiberglass cloth |
||

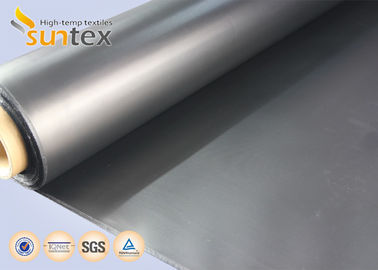

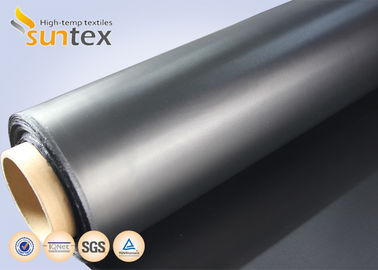

Air Condition System Flexible Duct Connector Neoprene Cloth Black Color
Description:
GF431P-NE245-4005 is a medium weight fiberglass fabric coated with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of removable, reusable insulation pads, jacket and mattresses. The material is soft and pliable and easy to sew.
This product is particularly suitable for the manufacture of compensators and expansion covers
It is fiberglasss cloth coated with neoprene and composite materials with flame retardant and multiple applications. High tensile strength, better resistannce to heat, light, aging andoil compared to natural rubber, SBR and BR. With strong resistance to flammability and excellent to water, along with its high chemical stability, it is used extensively in the field of elastomers.
Parameter List:
| BASE FABRIC | Base fabric style No. GF431P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. NE245-4005 | ||
| Coating | Neoprene rubber , two sides | ||
| Weight | 600 ± 30 g/m2 | 17.35 ± 0.88 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.47 ± 0.02 mm | 0.019 ± 0.0008 inch | ASTM D1777-96 |
| Color | Black | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Neoprene rubber coating up to 1500C (3600F) |
||
Typical Applications:
Flexible Connector
Expansion Joint Ducts
Insulation Sleeves
Fabric Shield
Advantage:
● Good machinery tensile strength
● Resist ozone and aging
● Fireproof and flame resistant
● Resist chemical erode
● Good capability of oil resistant
● Can be stick on many basic materials
