Non Combustible Aluminum Foil Fiberglass Cloth 1.3mm Laminated Heat Insulation Shield 150C

Place of Origin China
Brand Name SUNTEX
Model Number TGF1000-AL118-6006
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Silver Application Heat Insulation Shield
Weight 1050g/sq.mtr Working Temperature Up To 150 C
Treatment Aluminum Laminated Property Heat Insulation
Flame Resistance Non-combustible Origin China
High Light

aluminized fiberglass fabric

,

aluminum coated fiberglass

Leave a Message
Product Description

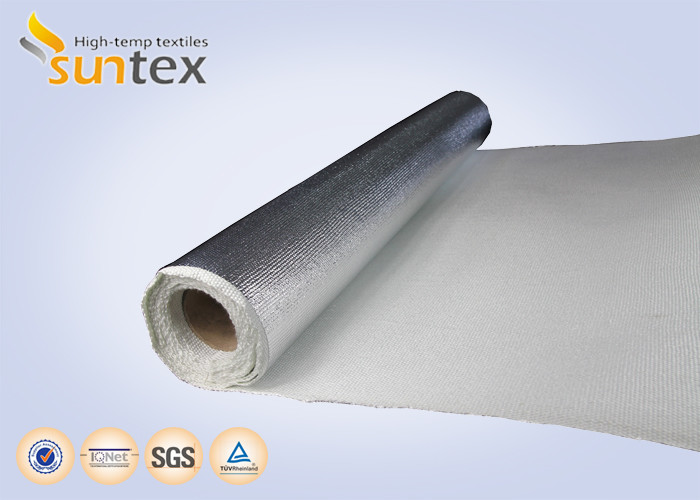

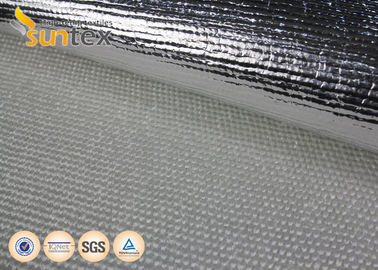

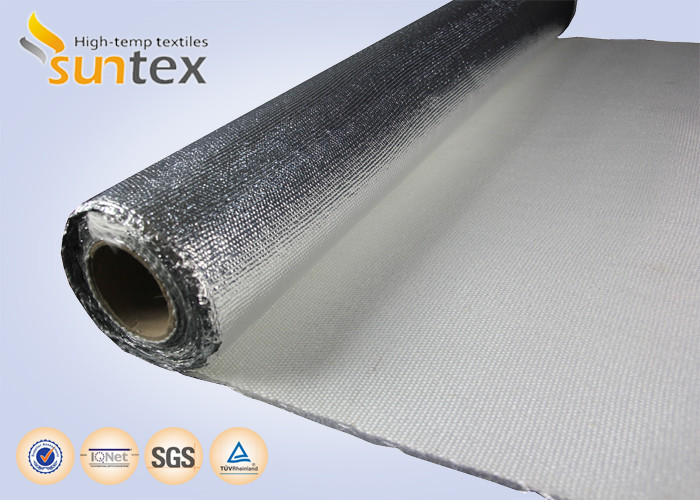

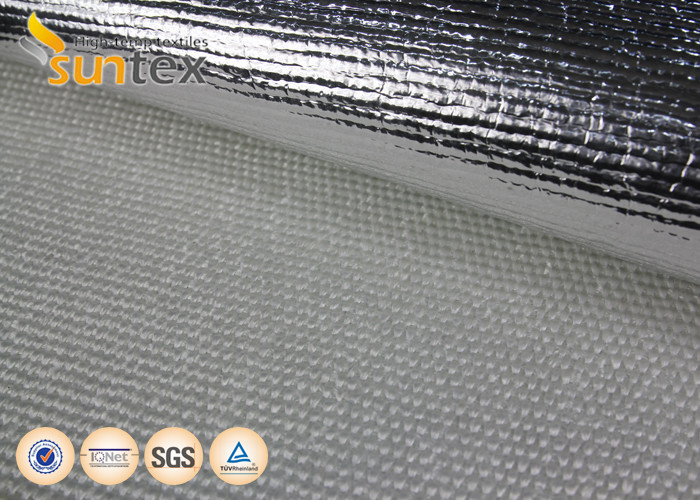

Non Combustible Aluminum Foil Fiberglass Cloth 1.3mm Laminated Heat Insulation Shield 150C



Product Description



Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.



-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.



BASE FABRIC Base fabric style No. TGF1000
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp ET9 1290 tex ETG 3.88
Weft ET9 1290 tex ETG 3.88
Construction
Warp 6 ± 0.5 ends/cm 15 ± 1 ends/inch
Weft 3.15 ± 0.3 picks/cm 8 ± 1 picks/inch
Weight 1000 ± 50 g/m2 30 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.3 ± 0.05 mm 0.051 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. AL118-6006
Coating Aluminum foil (18 microns) laminated on one side.
Weight 1050 ± 80 g/m2 31 ± 2.35 oz/yd2 ASTM D3776-96
Thickness 1.35 ± 0.1 mm 0.053 ± 0.004 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1800C (3500F)





Product Application
