Product Details:
Payment & Shipping Terms:
|
| Nominal Weight: | 1070 G/M2 | Nominal Width: | 1.5 M |
|---|---|---|---|
| Nominal Thickness: | 1.4mm | Color: | Brown / Yellow |
| Temperature Resistance /Working Temperature: | Up To 1000℃ | Treatment: | Vermiculite On The Both Side |
| Appllication: | Heavy Duty Welding Protection | Usage: | Fire Resistant |
| High Light: | fiberglass welding cloth,welding fire blanket rolls |
||

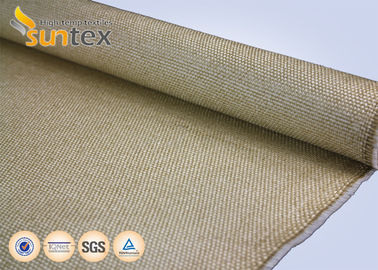

Yellow Flame / Spark Resistant Fire Blanket Fiberglass Fabric Vermiculite Coated
Introduce
TGF1000-VE226-5008 is a heavy weight woven texturized fiberglass fabric impregnated with specially formulated vermiculite dispensers which provides high temperature and abrasion resistance properties for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other types of fire control systems.
Advantage
1. Excellent certified fire resistance.
2. Extreme high temperature resistant .
3. Easy to be used, sewn and fabricated.
4. Excellent abrasion resistance property.
5. Excellent tensile strength.
6. Thickness, unit weight, weave, all can be customized base on your use method.
Technical Data
| BASE FABRIC | Base fabric style No. TGF1000 | |||
| (Metric) | (English) | Test methods | ||
| Weave | Plain | Plain | ||
| COATED FABRIC | Coating style No. VE226-5008 | |||
| Coating | Vermiculite impregnated on both sides | |||
| Weight | 1070 ± 50 g/m2 | 32 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.40 ± 0.05 mm | 0.055 ±0.002 inch | ASTM D1777-96 | |
| Color | Brown (Yellow) | |||
| Temp resistance |
5500C for basic fabric 8000C for the coating |
14000F |
||
Applications
Fire blanket
Smoke door
Flexible sleeve
Reusable thermal insulation sheath
Thermal insulation mattress
Flexible duct
