Fire Resistance Waterproof Polyurethane / PU Fiber Glass Cloth For Welding Blanket & More
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Suntex |
| Model Number | GF880C-PU223-2037 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Fabric rolls packed in cartons loaded on pallets or according to customers' requirements. |
| Delivery Time | 5-20 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 300000 Meter/Meters per Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Yarn Type | C-Glass | Weave Type | Satin Woven Or Customized |
|---|---|---|---|
| Alkali Content | Middle | Width | 1m To 2m Or Customized |
| Weight | 960g/sqm | Thickness | 0.9mm |
| Base Material | 100% Fiberglass | Good Features | Flame Retarded, Waterproof, Abrasion Resistance, Durability, No Skin Irritation |
| Standing Temperature | -70°C To +250°C | Color | Silver White Or Customized |
| Coating | Two Sides Polyurethane(PU) Coating | Type | Fireproof Waterproof Insulation Fiberglass Fabric |
| Application 1 | Welding/fire Blanket, Fire Curtain, Smoke Curtain | Application 2 | Removable Insulation Jacket, Expansion Joint, Equipment Protect Cover |
| Highlight | fire retardant cloth,fireproof fiberglass cloth |
||
Product Description

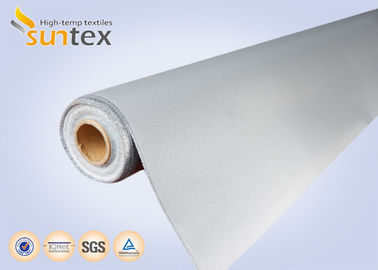

Fire Resistance Waterproof Polyurethane/ PU Fiber Glass Cloth For Welding Blanket & More
Suntex polyurethane/ PU fiber glass cloth is made of medium weight weaved fiberglass fabric coated with both side flame retarded polyurethane. It has many good properties, such as good fire resistance, heat resistant, waterproof, abrasion and durability, easy to cut and process, without irritation to the skin, high strength, and so on. Its heat reflection performance better than ordinary fireproof cloth. So it is an ideal material used for fireproof, waterproof, thermal insulation, heat resistant.
Main applications:
fabric ductwork connector, fabric expansion joints, removable insulation covers/pads/jackets/mattress, smoke screens, welding blanket/curtain, fire blanket/curtain, other fire control systems.
| BASE FABRIC | Base fabric style No. GF880 | ||
| (Metric) | (English) | Test methods | |
| Weave | 8H Satin | 8H Satin | |
| Yarn | |||
| Warp | EC9 136 1*2 | ECG37 1/2 | |
| Weft | EC9 136 1*2 | ECG37 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 2 ends/inch | ASTM D 3775-96 |
| Weft | 14 ± 1 picks/cm | 33 ± 2 picks/inch | ASTM D 3775-96 |
| Weight | 880 ± 45 g/m2 | 26 ± 1.3 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.75 ± 0.06 mm | 0.03 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU223-2037 | |||
| Coating | polyurethane coated on both sides | |||
| Weight | 960 ± 40 g/m2 | 28.23 ± 1.17 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.9 ± 0.05 mm | 0.035 ±0.002 inch | ASTM D1777-96 | |
| Color | Silver grey | |||
| Fire resistance | Flame retardant | |||
| Temp resistance | 1800C | 3560F | ||
