| Material: | Silicone Fiberglass | Yarn Type: | E-Glass |
|---|---|---|---|
| Alkali Content: | Alkali Free | Coating: | One Or Two Sided Silicone Rubber |
| Weight: | 960g/m2 | Thickness: | 0.72 Mm |
| Width: | 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized | Color: | Red,grey,black,green,and Customed Colors |
| Standing Temperature: | From -50℃ To 500℃ | Good Features: | Corrosion Resistance,weatherproof,solvent Resistant,anti-aging |
| Application 1: | Boat,shipping,power Generation,aerospace,marine | Application 2: | Insulation Cloth,heat Cloth,heat Resistant Cloth,fire Fabric |
| High Light: | 960g/M2 heat resistant fabric,Silicone high heat resistant fabric |
||

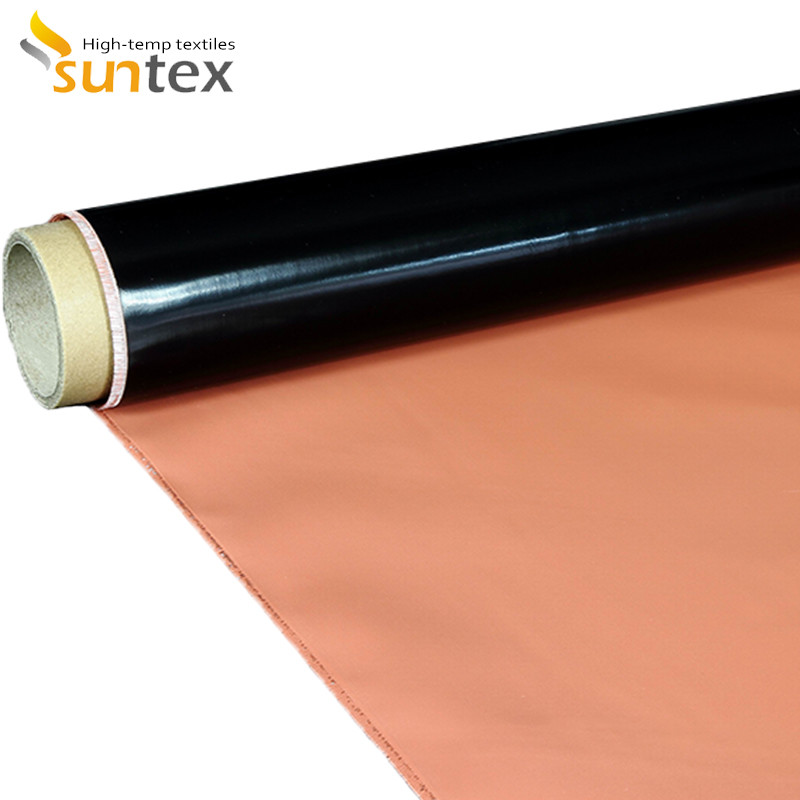

Fire Retardant Fabric Silicone Coated Fiberglass Fabric Insulation Cloth
Silicone coated fiberglass fabrics
Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, solvent resistant, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.
Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.
Main applications:
1.Shipping, power generation, aerospace, marine
2.Insulation cloth, heat cloth, heat resistant cloth, fire fabric
3.Insulation jackets, mattress, and pad
4.Fabric expansion joints
5.Fabric ductwork connector
6.Fire doors & Fire curtains
7.Welding/fire blankets
8.Other fire control systems
| BASE FABRIC | Base fabric style No. GF660P | ||
| (Metric) | (English) | Test methods | |
| Weave | 8H Satin | 8H Satin | |
| Yarn | |||
| Warp | EC9 68 1*3 | ECG 75 1/3 | |
| Weft | EC9 68 1*3 | ECG 75 1/3 | |
| Construction | |||
| Warp | 16 ± 1 ends/cm | 41± 2 ends/inch | ASTM D 3775-96 |
| Weft | 15± 1 picks/cm | 38 ± 2 picks/inch | ASTM D 3775-96 |
| Weight | 660 ± 45 g/m2 | 19.4 ± 1.3 oz/yd2 | ASTM D3776-96 |
| Thickness | 0. 6 ± 0.06 mm | 0.024 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. SI164-1092 | ||
| Coating | Silicone rubber coated one side | ||
| Weight | 960 ± 50 g/m2 | 28 ± 1.4 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.72 ± 0.05 mm | 0.028 ±0.002 inch | ASTM D1777-96 |
| Color | RED | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
||
