3784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls

large.img.alt
small.img.alt

Large Image :  3784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF880-HT
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Application: Fire Welding Blanket Weight: 880g/sq.mtr
Working Temperature: 550 C Color: Tan
Weaving: 8H Satin Treatment: Heat Clean
High Light:

fiberglass woven fabric

,

7628 fiberglass cloth

Fiberglass Fabric 3784 Woven Fiberglass Cloth Fire Welding Protection Blanket Material

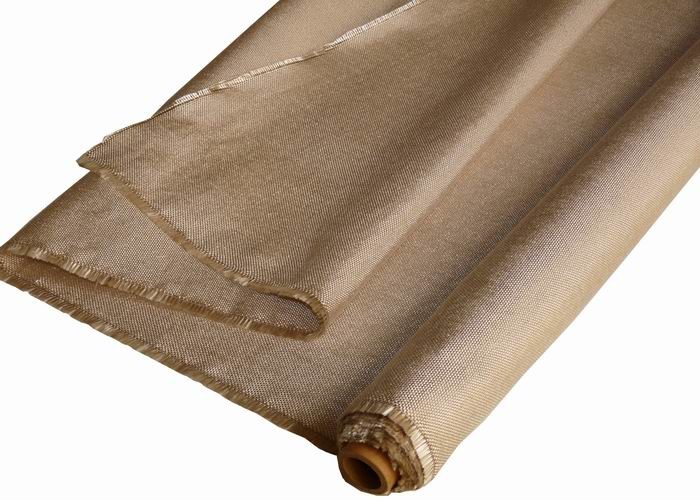

GF880-HT is a loomstate woven fiberglass fabric with heat clean treatment. Color tan.



GF880-HT is designed for the manufacturer of reusable fire or welding blankets,removable thermal insulation covers, padding, and other fire control systems.



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin
Treatment Caramelize Heat clean
Yarn
Warp EC9 33 1﹡8 ECG 150 1/8
Weft EC9 33 1﹡8 ECG 150 1/8
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 33 ± 3 picks/inch ASTM D 3775-96
Weight 880 ± 60 g/m2 26 ± 1.3 oz/yd2 ASTM D3776-96
Thickness 0.8 ± 0.05 mm 0.03 ± 0.002 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
152.4 ± 1 cm 60 ± 0.39 inch
182.9 ± 1 cm 72 ± 0.39 inch
Tensile strength
Warp 7445 N/5 cm 850 lbf/inch ASTM D5034-95
Weft 5693 N/5 cm 650 lbf/inch ASTM D5034-95
Temp resistance 5500C 10000F



Advantages:



1. Good fire resistant.M0 classification.

2. Flexible,soft, easy to be fabricated

3. Good tensile strength.

4. Bears temperature 550C degree.



Main applications:



1. Fire blankets.

2. Welding barriers

3. Thermal insulation

4. Base materials for coating

 3784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls 03784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls 13784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls 23784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls 33784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls 43784 Woven Roving Fiberglass Fabric Fire Protection Welding Fire Blanket Rolls 5
