| Unit Weight: | 20.29 Oz/sq.y | Standard Width: | 1000mm 1200mm |
|---|---|---|---|
| Standard Thickness: | 0.028 Inch | Colour: | Silver Grey |
| Coating Temperature Resistance: | 180℃ 350℉ | Basic Fabric Temperature Resistance: | 750℃ 1400℉ |
| Coating: | Polyurethane 1 Side | ||
| High Light: | coated fiberglass fabric,fire retardant cloth |
||

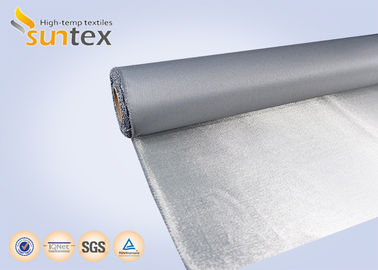

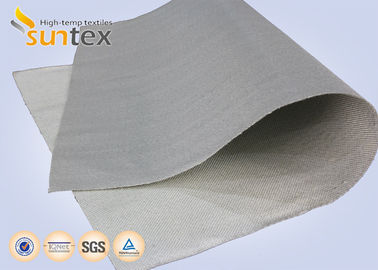

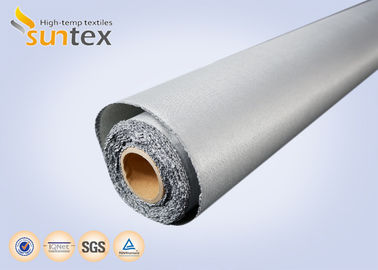

Heatproof Fabric PU Coated Fabric 0.7mm Glass Fiber Fire Blanket Material Smoke Curtains
Introduce
GF660S-PU113-2040 is a S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.
Advantage
1. Excellent certified fire resistance.
2. End users can choose the favority face.
3. Easy to be applied, sewn and fabricated.
4. Excellent abrasion resistance property.
5. Excellent tensile strength.
6. Nominal Thickness, unit weight, pattern, all can be customized base on your application/use method.
Data
| Total weight | 20.29 oz/y2 |
| Standard Thickness | 0.028 inch |
| Standard width | 1000mm 1200mm |
| Coated / Coating / Treatment / Surfacing | PU/Polyurethane |
| Colour | Silver Grey |
| Fire resistance | Excellence |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | Crowfoot |
| Fiberglass | E-glass Stainless Steel Wire Reinforced Fiberglass |
Applications
Fire curtain
Welding blanket
Compensator
Removable heat insulation couples
Heat insulation pad
Fabric duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
