Product Details:
Payment & Shipping Terms:
|
| Application: | Fire Curtain | Weight: | 800g/sq.mtr |
|---|---|---|---|
| Working Temperature: | 550 C | Color: | Off-white |
| Yarn: | 9um E-glass | Weaving: | Check Board |
| High Light: | 7628 fiberglass cloth,glass fiber woven fabric |
||

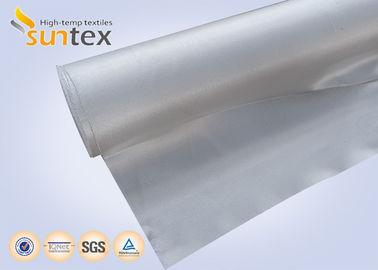

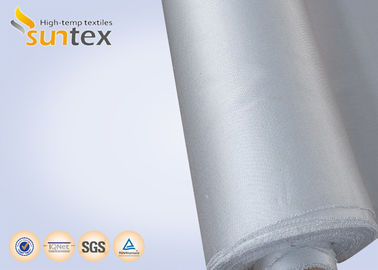

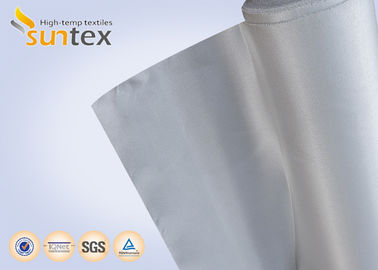

0.8mm E glass Fiber Flame Retardant Fabric Woven Fiberglass Cloth Fire Curtain
GF800 is a medium weight woven fiberglass fabric. It’s an industrial grade loomstate glass fabric.It's check board weaving, soft,suitable for coating with difference elastomers and polymers.
GF800 is designed for the manufacturer of fire curtain thermal insulation covers, padding, lagging, welding blanket and other fire control systems.
Technical Data:
| PROPERTY DATA | |||
| (metric) | (English) | Test methods | |
| Weave | Check board | Check board | |
| Yarn | |||
| Warp | EC9 33 1﹡8 | ECG 150 1/8 | |
| Weft | EC9 33 1﹡8 | ECG 150 1/8 | |
| Construction | |||
| Warp | 14.5 ± 1.4 ends/cm | 37 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 14.5 ± 1.4 picks/cm | 37 ± 3 ends/inch | ASTM D 3775-96 |
| Weight | 800 ± 40 g/m2 | 23.5 ± 1.1 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.75 ± 0.06 mm | 0.03 ± 0.002 inch | ASTM D1777-96 |
| Standard width | 101.6 ± 1 cm | 40 ± 0.39 inch | ASTM D3776-96 |
| 152.4 ± 1 cm | 60 ± 0.39 inch | ||
| 182.9 ± 1 cm | 72 ± 0.39 inch | ||
| Tensile strength | |||
| Warp | 5781 N/5 cm | 660 lbf/inch | ASTM D5034-95 |
| Weft | 5781 N/5 cm | 660 lbf/inch | ASTM D5034-95 |
| Temp resistance | 5500C | 10000F | |
Advantages:
1. Good fire resistant.M0 classification.
2. Flexible,soft, easy to be fabricated
5. Bears temperature 550C degree.
Main applications:
1. Fire blankets.
2. Thermal insulation
3. Base materials for coating,
