Product Details:
Payment & Shipping Terms:
|
Material: | 400g/sqm Silicone Coated Fiberglass Fabric | Yarn Type: | E-Glass |
---|---|---|---|
Alkali Content: | Alkali Free | Weave Type: | Twill Woven,plain Woven Or Customized |
Coating: | Two Side Silicone Rubber Coating | Weight: | 400g/sqm |
Thickness: | 0.33mm | Width: | 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized |
Good Features: | Fireproof, Chemical Resistance, Weatherproof, Anti-aging | Standing Temperature: | -50℃-+550℃ |
Color: | Grey,red,black,silver,green,blue,white,or Customized | Application 1: | Fabric Duct Expansion Joints, Flexible Compensators |
Application 2: | Fabric Air Distribution Ducts, Fabric Duct Connector | Application 3: | Flexible Ductwork Connector,flexible Expansion Joints |
High Light: | 1.2m silicone coated glass fabric,0.1 mm silicone coated glass cloth |

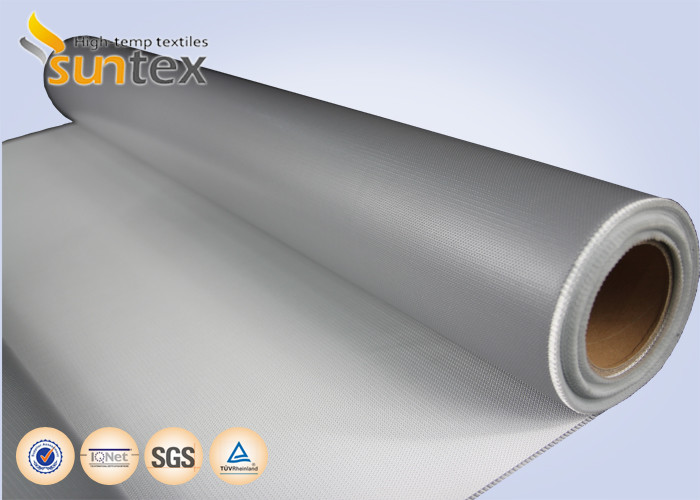

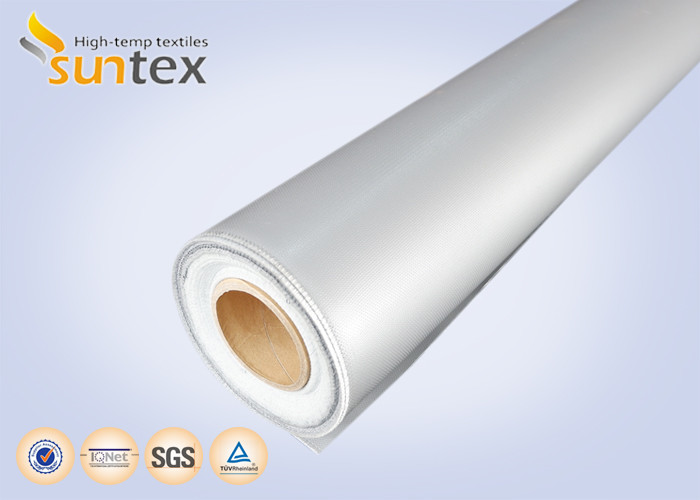

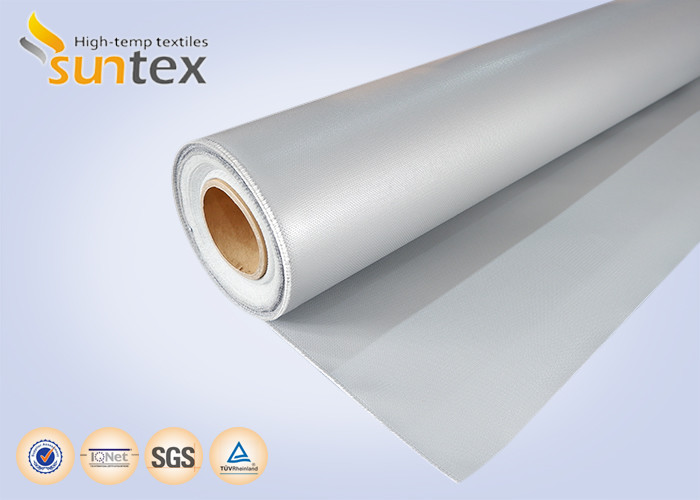

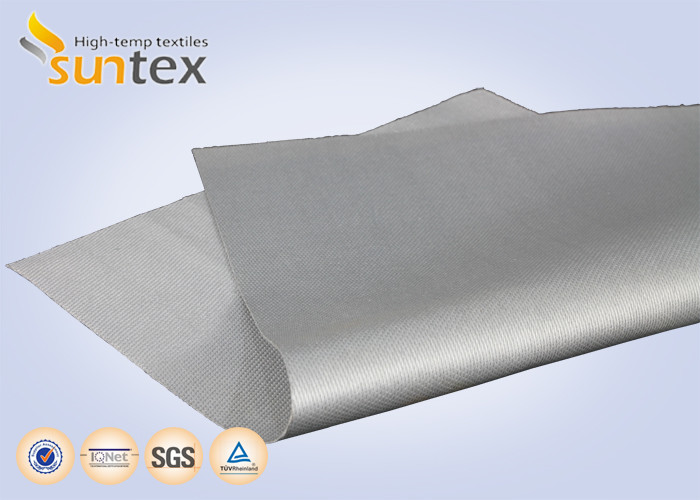

Thermal Insulation Waterproof Silicone Coated Fiberglass Fabric Cloth
Silicone fiberglass fabric is made up of fiberglass material that is then coated or impregnated with 100% silicone rubber. This fabric is water resistant, resistant to chemicals, oil and UV, low smoke, good flame retardation, flexible even in low temperatures. It also provides greater abrasion puncture and tear resistance, great life, superior insulation in for uses of heat and electricity. This material comes in grey or red and is 17 ounces per square yard.
Typical Applications:
--Welding blankets, welding curtains, fire blankets
--Expansion joints
--High temperature insulation
--Heat shields and containment
--Removable insulation covers, jackets, mattress, pads
--Most other uses for fireproof applications
Style No. | Weight | Thickness | color | Coating | ||
(g/m2) | Oz/yd) | (mm) | (inch) | |||
GF200T-SI220-1003 | 260 | 7.6 | 0.23 | 0.09 | White | Double side |
GF430P-SI233-1015 | 560 | 16.5 | 0.42 | 0.0165 | Silver Grey | Double side |
GF430P-SI244-1017 | 590 | 17 | 0.45 | 0.0177 | Red | Double side |
GF430P-SI261-1020 | 730 | 21.5 | 0.53 | 0.02 | Green | Double side |
GF66OP-SI263-1033 | 960 | 28 | 0.72 | 0.0283 | Silver Grey | Double side |
GF660P-SI165-1023 | 960 | 28 | 0.72 | 0.0283 | Black | Single side |
GF880-SI244-1026 | 1080 | 32 | 0.95 | 0.374 | Red | Double side |
GF880P-SI253-1027 | 1120 | 33 | 1 | 0.039 | Silver Grey | Double side |
