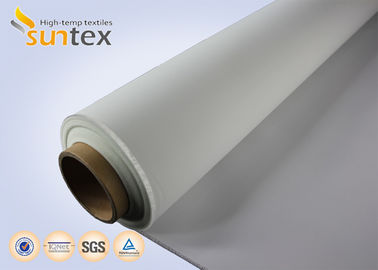

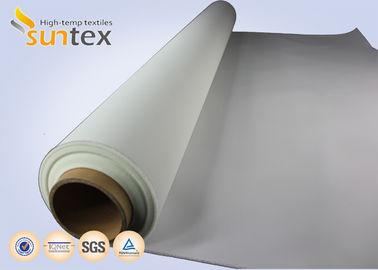

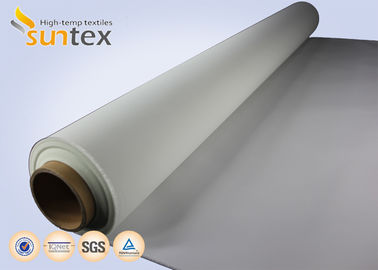

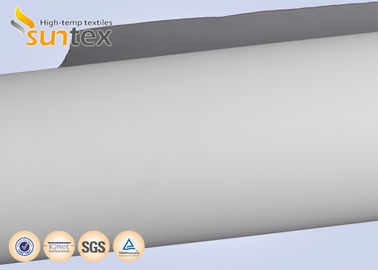

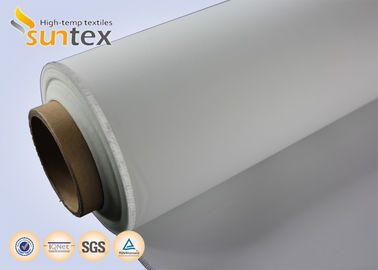

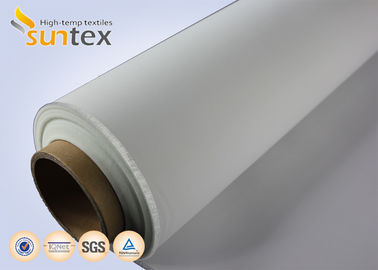

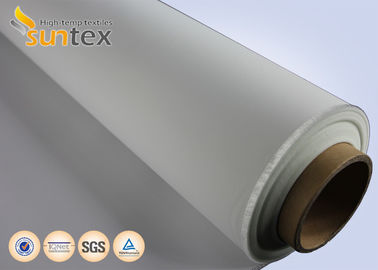

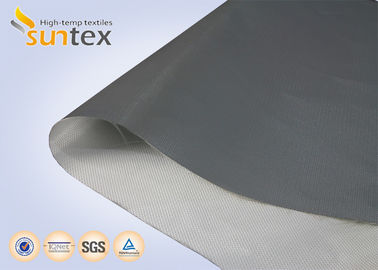

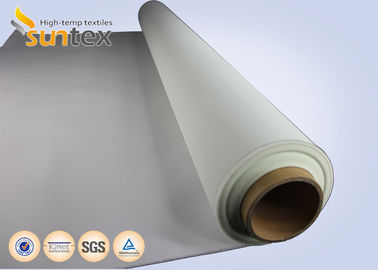

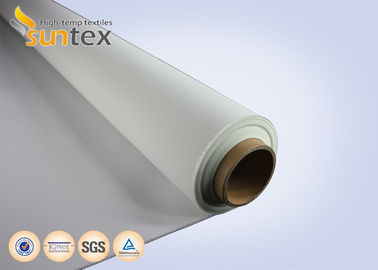

Polyurethane PU Coated Fiberglass Fabric 0.4mm PU Coated Fiberglass Fabric For Fire Curtain And Smoke Curtains
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xThickness | 0.40mm | Weight | 450g/m2±10% |
---|---|---|---|
Width | 1000mm, 1200mm, 1500mm 1520mm 1550mm 2000mm | Color | Grey |
Temperature Resistance | 550℃(1000℉) | Coating | PU Coated On Single Side |
Base Fabric And Weave | Fiberglass, Satin Weave | Roll Length | 50meters Or 100meters |
Highlight | coated fiberglass fabric,silicone coated fiberglass fabric,PU coated fiberglass fabric |
Heat And Cold Resistant Material PU Coated Fiberglass Fabric 0.41mm Fabric Air Distribution Ducts M0
Introduce
PU coated fabric is fiberglass cloth coated with flame retarded PU (polyurethane) on one-sided or double-sided surface. PU coating imparts fiberglass cloth good weave setting (high stability) and water resistance properties. Suntex Polyurethane PU coated fiberglass cloth can withstand a continuous working temperature of 550C and a short duration working temperature of 600C. Compared with basic woven glass fiber fabric, It has many good features such as good air gas sealing, fire proof, abrasion resistance, oils, solvents resistance chemical resistant ability, no skin irritation, halogen free. Can be used in fire and smoke applications, such as welding blanket, fire blanket, fire curtain, fabric air distribution ducts, fabric duct connector. Suntex can offer polyurethane coated fabric with different colors, thickness, widths.
Advantage
1.Good abrasion resistance, high strength
2.Low smoke release, fireproof, M0 certified fire resistance
3.Good tensile strength
4.Easy to be used, sewn, and fabricated
5.Thickness, weight, weave, color, all can be customized base on your application
Applications
Smoke curtain, fire curtain, fire blanket, welding blanket, removable insulation jacket, cover, blanket, expansion joint, fabric air distribution ducts, fabric duct connector.
Related Products
Style No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/yd2 | mm | inch | |||
PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
