Flame Protection Red High Temp Fiberglass Sleeving Hose And Cable Thermal Barriers

China Flame Protection Red High Temp Fiberglass Sleeving Hose And Cable Thermal Barriers supplier
Flame Protection Red High Temp Fiberglass Sleeving Hose And Cable Thermal Barriers supplier Flame Protection Red High Temp Fiberglass Sleeving Hose And Cable Thermal Barriers supplier Flame Protection Red High Temp Fiberglass Sleeving Hose And Cable Thermal Barriers supplier

Large Image :  Flame Protection Red High Temp Fiberglass Sleeving Hose And Cable Thermal Barriers

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Model Number: FGS 50

Payment & Shipping Terms:

Minimum Order Quantity: 100 mtrs
Packaging Details: rolls packed in boxes, than loaded on container
Delivery Time: 7-10 days; depends on the deliver volume
Payment Terms: T/T, L/C, D/P
Supply Ability: 20000 m/Month
Contact Now
Detailed Product Description
Size: 50mm Working Temp.: From 250 C To 550 C
Raw Materials: 9um E-glass,red Silicone Rubber Roll Length: 20m Or Customerized
Industries: Hose And Cable Thermal Barriers Flammability: Fire Resistant

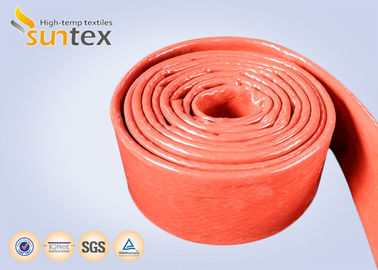

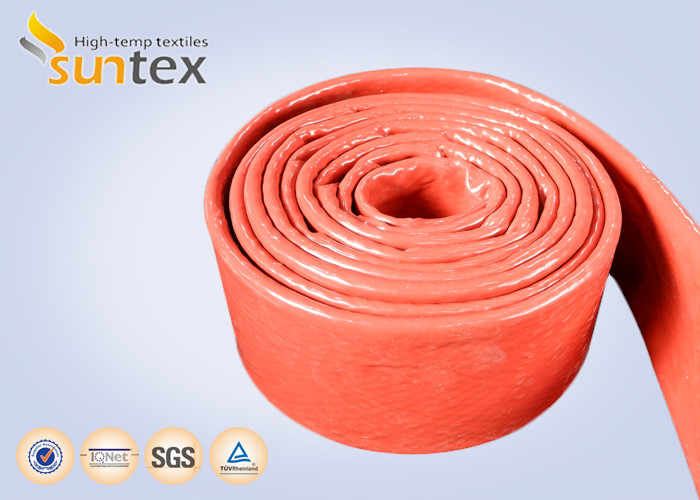

Flame Protection Red Silicone Fiberglass Sleeve Hose And Cable Thermal Barriers



 Product Information:



 1.Made from 9um E fiberglass yarns,coated with a red color silicone rubber.

 2. Resists high temperature up to 550C;And resists most chemical solvents

 3. Used a lot as pipe, hose, and cable protection sleeve providing an excellent thermal barrier.

 4. Good abrasion resistance,play a role in heavy duty applications that require outstanding mechanical a nd electrical properties.

 5.  The good mechanical properties and high dielectric strength make it the ideal materials in applications such as transformer lead protection, motor coil leads, component isolation, and power supply wiring.



Size range from 10mm to 100mm available.



Applications :

  • Wiring, Hose and Cable Heat & Flame Protection
  • Insulation/Heat Containment

Technical Parameters:



Description: E-glass sleeve with red silicone rubber coating
Components: Glassfiber and red silicone rubber
Type of yarn: 9 um E-glass
Diameter : 50mm
Thermal Conductivity 0.035(w/(m.k)
Working Temp : Up to 550 0C
Frozen temp: -50 0C
Loss on Ignition ≦3.52%



The related types:



# Dia(mm) Internal Dia.(mm) Length(m) Thickness(mm)
Silicone Glass Yarn
1 Φ10 10.5 20 0.8 1.0
2 Φ15 15.5 20 0.9 1.2
3 Φ20 20.5 20 0.9 1.4
4 Φ25 25.5 20 1 1.6
5 Φ30 30.5 20 1.1 1.8
6 Φ35 35.5 20 1.1 2.0
7 Φ45 45.5 20 1.2 2.2
8 Φ40 40.5 20 1.2 2.1
9 Φ55 56.0 20 1.3 2.4
10 Φ60 61.0 20 1.3 2.5
