Heat Insulation Fireproof Woven Fiberglass Cloth Smoke Curtain Woven Glass Fabric

Place of Origin China
Brand Name SUNTEX
Model Number TGF2050
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Smoke Curtain Weight 2050g/sq.mtr
Working Temperature 550 C Color Off-white
Yarn Bulk Density 2050 G/m2
High Light

fiberglass woven fabric

,

glass fiber woven fabric

Leave a Message
Product Description

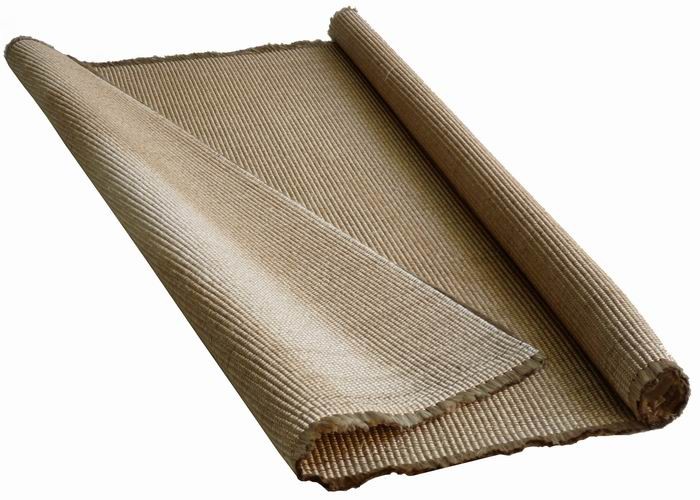

Heat Insulation Fireproof Woven Fiberglass Cloth Glass Fiber Blanket Smoke Curtain



TGF 2050 is a heavy weight woven texturized fiberglass fabric. It’s made with 9 micron glass yarn to provide economic yet highly effective thermal and acoustic insulation. Bulk texturing increase the thickness of the fabric to improve the thermal insulation capacity.



This fabric bears temperature up to 5500C. The applications include thermal padding,smoke curtians,thermal insulation covers, heavy duty welding protection blankets and other fire control system.



USA reference No. M60 .



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave Plain Plain
Treatment None None
Yarn
Warp ET9 1800 tex ETG 2.78
Weft ET9 3600 tex ETG 1.39
Construction
Warp 6 ± 0.6 ends/cm 15 ± 1 ends/inch ASTM D 3775-96
Weft 2.5 ± 0.2 picks/cm 6 ± 1 picks/inch ASTM D 3775-96
Weight 2050 ± 100 g/m2 60 ± 2.9 oz/yd2 ASTM D3776-96
Thickness 3.0 ± 0.1 mm 0.118 ± 0.003 inch ASTM D1777-96
Tensile strength
Warp 4000 N/5 cm 457 lbf/inch ASTM D5034-95
Weft 3500 N/5 cm 400 lbf/inch ASTM D5034-95
Temp resistance 5500C 10000F



Advantages:



1. Good tansile strength.

2. Flexible,soft, easy to be fabricated

3. Good fire resistant.M0 classification.

4. Bears temperature 550C degree,800C for short time



Main applications:



1. Welding protection

2. Removable pads

3. Fabric expansion joints
